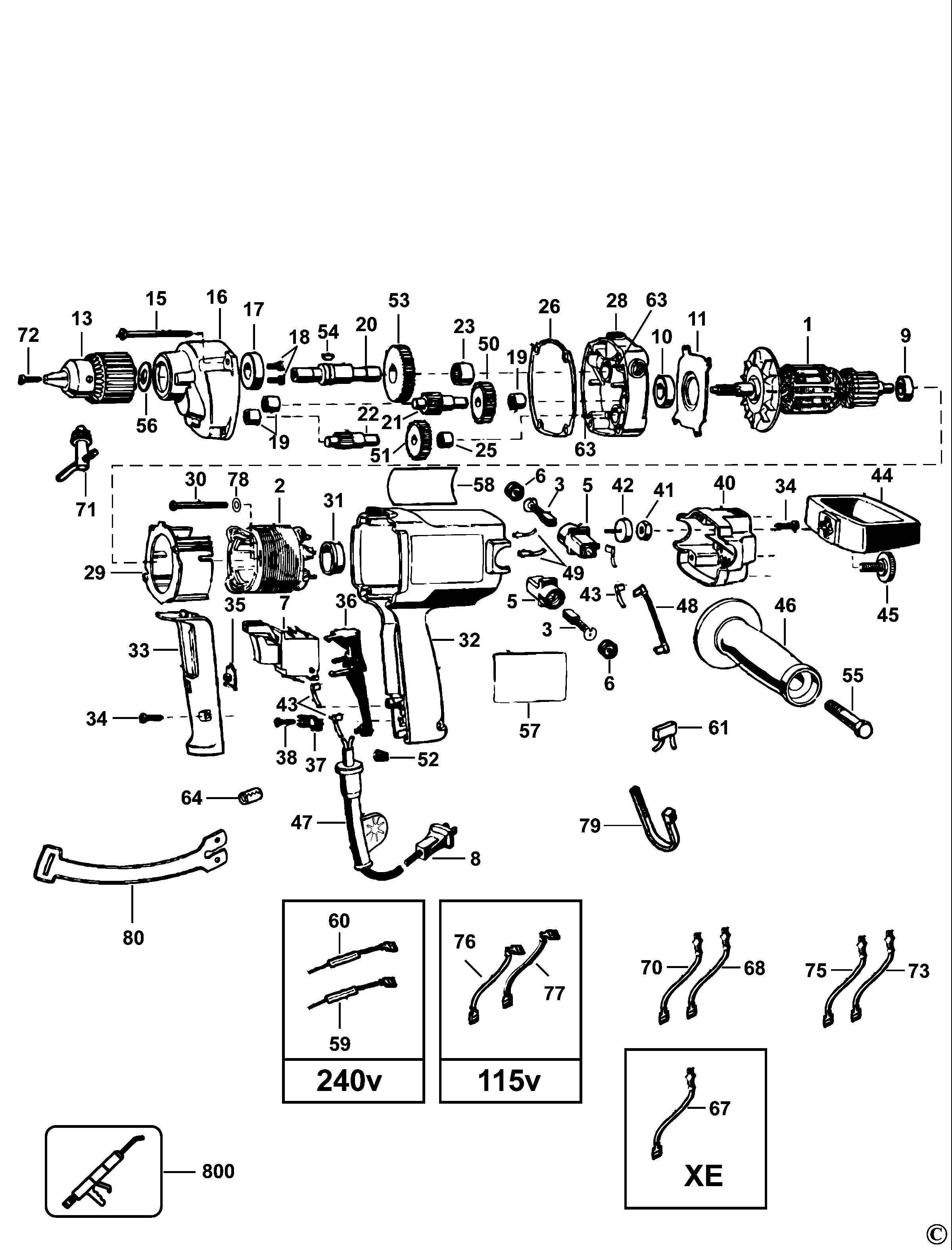

DW130 MIXER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 450130-00 | 1 | ARMATURE 115V | B4 |  |
||
| 2 | 449458-71 | 1 | FIELD 115V | B4 | |
||
| 3 | 450374-12 | 2 | BRUSH & SPRING | B4 |  |
||
| 5 | 448083-01 | 2 | BRUSHBOX SA | B4 | |
||
| 6 | 448084-01 | 2 | BRUSH CAP | B4 | |
||
| 7 | 88324-05 | 1 | SWITCH | Black | B4 | |
|
| 8 | 330064-02 | 1 | CORDSET | B4 | |
||
| 9 | 605040-06 | 1 | BEARING,BALL | B4 | |
||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B4 | |
|
| 11 | 448079-00 | 1 | PLATE | B4 | |||
| 13 | 5140204-44 | 1 | CHUCK & KEY | NPP 1/2in CAP 5/8-16 | B4 | |
|
| 15 | 330019-30 | 4 | SCREW | B4 | |
||
| 16 | N209034 | 1 | GEARCASE SA | B4 | |
||
| 17 | 700964-00 | 1 | BEARING | B4 | |
||
| 18 | 52819-00 | 2 | SCREW | B4 | |||
| 19 | 330004-02 | 3 | BEARING NEEDLE | B4 | |
||
| 20 | 147195-00 | 1 | SPINDLE | B4 | |
||
| 21 | 449489-00SV | 1 | GEAR & SPINDLE | B4 | |
||
| 22 | 449486-00SV | 1 | GEAR & PINION | B4 | |
||
| 23 | 135937-00 | 1 | BEARING | B4 | |
||
| 25 | 449493-00 | 1 | BEARING | B4 | |
||
| 26 | 450485-00 | 1 | GASKET | B4 | |
||
| 28 | 449483-00 | 1 | GEARCASE COVER | B4 | |
||
| 29 | 447786-00 | 1 | BAFFLE FAN | B4 | |
||
| 30 | 330019-50 | 2 | SCREW | M4.55x50 PLASTIC THD FMG | B4 | |
|
| 31 | 445217-02 | 1 | SLEEVE | B4 | |
||
| 32 | 392275-02 | 1 | FIELD CASE | B4 | |
||
| 33 | 449461-05 | 1 | HANDLE COVER | B4 | |
||
| 34 | 330019-13 | 6 | SCREW | M4X19 T20 | B4 | |
|
| 35 | 449523-00 | 1 | LOCK BUTTON | B4 | |
||
| 36 | 449472-00 | 1 | SWITCH SUPPORT | B4 | |
||
| 37 | 380414-00 | 1 | CORD CLAMP | B4 | |
||
| 38 | 330019-03 | 2 | SCREW | B4 | |
||
| 40 | 449492-02 | 1 | END CAP | B4 | |
||
| 41 | 99371-06 | 1 | NUT | B4 | |
||
| 42 | 449700-00 | 1 | CAP | B4 | |
||
| 43 | 135110-00 | 7 | TERMINAL | B4 | |||
| 44 | 628037-00 | 1 | HANDLE | B4 | |
||
| 45 | 382531-00 | 1 | KNOB | B4 | |
||
| 46 | 130814-06 | 1 | HANDLE | B4 | |
||
| 47 | N542553 | 1 | CORD PROTECTOR | B4 | |
||
| 47 | N542553 | 1 | CORD PROTECTOR | B4 | |
||
| 48 | 158491-00 | 1 | LEAD | 6-3/4 INCH BLACK | B4 | ||
| 49 | 448172-00 | 1 | TERMINAL | B4 | |||
| 50 | 449490-00 | 1 | GEAR | B4 | |
||
| 51 | 449487-00 | 1 | GEAR | B4 | |||
| 52 | 32114-06 | 1 | CONNECTOR | B4 | |
||
| 53 | 400147-00 | 1 | GEAR | B4 | |
||
| 54 | 007027-00 | 1 | KEY | B4 | |
||
| 55 | 99173-36 | 1 | SCREW | B4 | |
||
| 56 | 147196-00 | 1 | WASHER | B4 | |
||
| 57 | 149477-00 | 1 | IDENTITY LABEL | B4 | |
||
| 63 | 91286-00 | 2 | PIN | B4 | |
||
| 71 | 330034-03 | 1 | CHUCK KEY | B4 | |
||
| 72 | 447735-02 | 1 | SCREW | B4 | |
||
| 80 | 065288-01 | 1 | HOLDER CHUCK KEY | B4 | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | B4 | |
