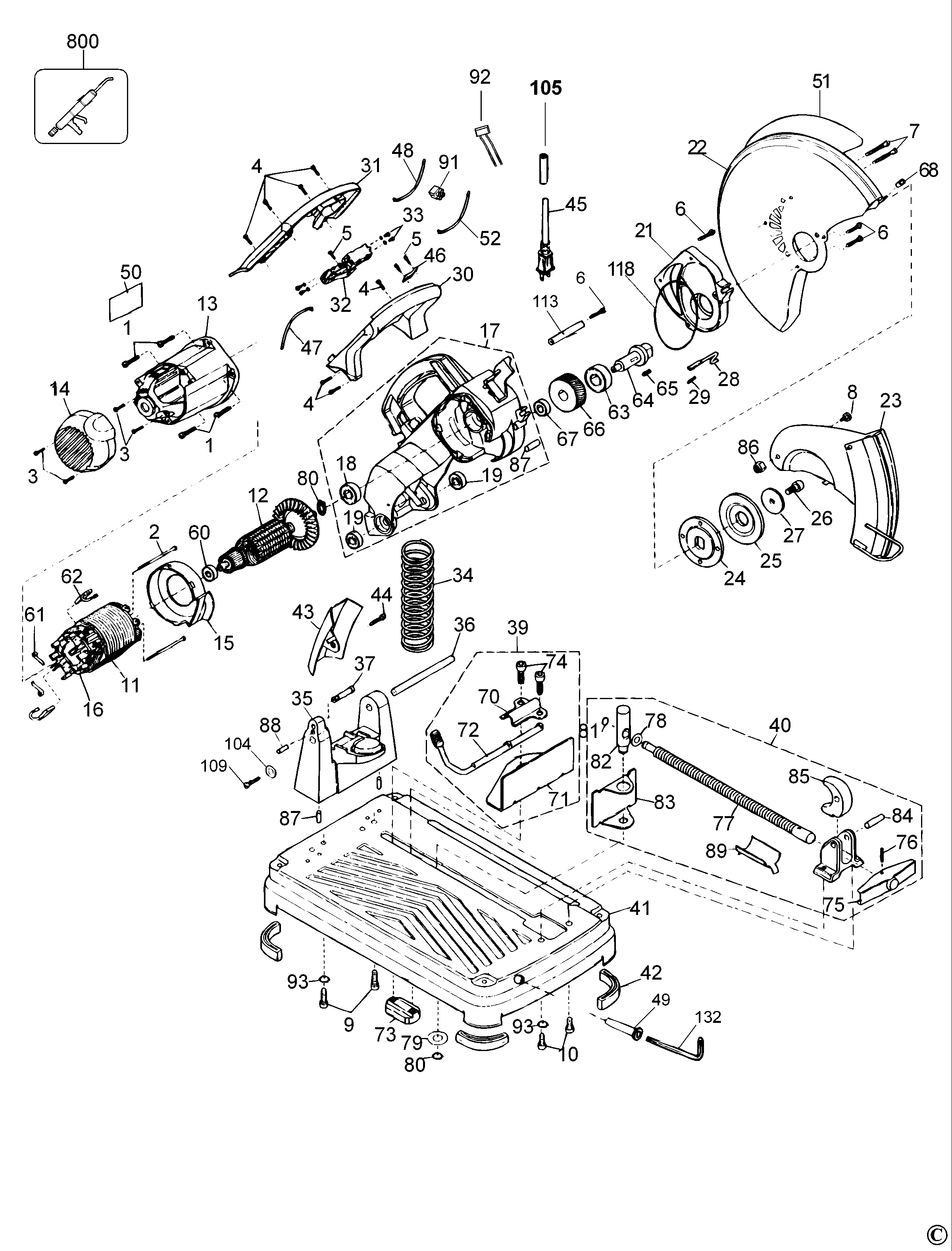

DW871 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-16 | 4 | SCREW | B1 |  |
||
| 2 | 330019-33 | 2 | SCREW | B1 | |
||
| 3 | 330019-13 | 4 | SCREW | M4X19 T20 | B1 | |
|
| 4 | 330019-14 | 7 | SCREW | B1 | |
||
| 5 | 330019-02 | 3 | SCREW | B1 | |
||
| 6 | 330045-17 | 4 | SCREW | M5x30 MTL THD FMG | B1 |  |
|
| 7 | 330045-20 | 2 | SCREW | M5*45 T25 | B1 | |
|
| 8 | 384844-00 | 1 | SCREW SPECIAL | B1 | |
||
| 9 | 098123-25 | 2 | SCREW | B1 | |
||
| 10 | 098123-16 | 2 | SCREW | B1 | |
||
| 11 | 624158-01 | 1 | FIELD 230V | B1 | |
||
| 12 | 383652-09SV | 1 | ARMATURE | INCL. 60,80 | B1 | ||
| 13 | 383151-00 | 1 | FIELDCASE SA | B1 | |
||
| 14 | 383155-00 | 1 | END CAP | B1 | |
||
| 15 | 383167-00 | 1 | BAFFLE FAN | B1 | |
||
| 16 | 383685-01SV | 1 | BRUSH RING ASM | INCL. 61,62 | B1 | ||
| 17 | 386628-00SV | 1 | ARM/GEAR CASE | INCL. 18,19,87 | B1 | ||
| 18 | 605040-27 | 1 | BEARING | B1 | |
||
| 19 | 330003-64 | 2 | BEARING | ID 12 x OD 28 x 8mm | B1 | |
|
| 21 | 383158-00SV | 1 | GEAR CASE COV | INCL. 63-67 | B1 | ||
| 22 | 386527-02 | 1 | GUARD SA | INCL.8,23,68,86 | B1 | |
|
| 23 | 383175-00 | 1 | GUARD COVER | B1 | |
||
| 24 | 607173-00 | 1 | INNER FLANGE | B1 | |
||
| 25 | 382884-00 | 1 | CLAMP OUTER | B1 | |||
| 26 | 383286-00 | 1 | SCREW | B1 | |
||
| 27 | 383246-00 | 1 | WASHER | B1 | |
||
| 28 | 383966-00 | 1 | LOCKING PIN | B1 | |
||
| 29 | 384716-00 | 1 | SPRING | B1 | |
||
| 30 | 383159-01 | 1 | HANDLE HALF | B1 | |
||
| 31 | 621514-00S | 1 | SWITCH KIT | B1 | |||
| 32 | 621514-01 | 1 | SERVICE KIT | B1 | |||
| 33 | 387746-00 | 4 | SCREW | M3.5x0.6x7.5 W/LOCKW | B1 | |
|
| 34 | 387282-00 | 1 | SPRING | B1 | |
||
| 35 | 383168-00SV | 1 | PIVOT BRACKET | INCL. 87 | B1 | ||
| 36 | 383118-00 | 1 | PIN | B1 | |
||
| 37 | 383148-00 | 1 | LOCKING PIN | B1 | |
||
| 39 | 384137-00 | 1 | FENCE SA | INCL. 70-74 | B1 | |
|
| 40 | 384180-00S | 1 | VISE ASSEMBLY | INCL.75-85,89 | B1 | ||
| 41 | 382366-00 | 1 | BASE | B1 | |
||
| 42 | 383243-00 | 4 | FOOT | B1 | |
||
| 43 | 384159-00 | 1 | DEFLECTOR | B1 | |
||
| 44 | 330045-23 | 1 | SCREW | B1 | |
||
| 45 | 380651-06 | 1 | CABLE | B1 | |
||
| 46 | 386540-00 | 1 | CORD CLAMP | B1 | |
||
| 47 | 384762-00 | 1 | LEAD | B1 | |||
| 48 | 386515-00 | 1 | LEAD | B1 | |||
| 49 | 386765-00 | 1 | HOLDER TOOL | B1 | |
||
| 50 | 386328-00 | 1 | NAMEPLATE | B1 | |||
| 51 | 397340-00 | 2 | BRAND LABEL | B1 | |
||
| 60 | 330003-17 | 1 | BEARING | B1 | |||
| 61 | 384612-00 | 2 | SPRING | B1 | |
||
| 62 | 384613-01 | 2 | BRUSH 230V | B1 | |
||
| 63 | 146555-01 | 1 | BEARING | NPP | B1 | |
|
| 64 | 382882-00 | 1 | SPINDLE | B1 | |
||
| 65 | 382675-00 | 1 | KEY | B1 | |
||
| 66 | 386277-00 | 1 | GEAR | B1 | |
||
| 67 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B1 | |
|
| 68 | 386526-00 | 1 | STOP RUBBER | B1 | |
||
| 70 | 391459-00 | 1 | PLATE LOCK | B1 | |
||
| 71 | 382677-00 | 1 | FENCE | B1 | |
||
| 72 | 382540-00 | 1 | LEVER | B1 | |
||
| 73 | 383254-00 | 1 | BLOCK | B1 | |
||
| 74 | 383450-00 | 2 | SCREW | B1 | |
||
| 75 | 383252-00 | 1 | LOCK HANDLE | B1 | |
||
| 76 | 330036-08 | 1 | PIN | B1 | |
||
| 77 | 395856-00 | 1 | ROD | B1 | |
||
| 78 | 384365-00 | 1 | WASHER | B1 | |
||
| 79 | 607592-00 | 1 | WASHER | B1 | |
||
| 80 | 144803-00 | 1 | CIRCLIP | B1 | |
||
| 81 | 383169-00 | 1 | CIRCLIP | B1 | |
||
| 82 | 5140000-11 | 1 | PIN | & RETAINING RING | INCL. 153 | B1 | |
| 83 | 607278-00 | 1 | VICE JAW | B1 | |
||
| 84 | 386525-01 | 1 | DOWEL | B1 | |
||
| 85 | 383828-00 | 1 | LOCKING DEVICE | B1 | |
||
| 86 | 148641-00 | 1 | LOCK-NUT | B1 | |
||
| 87 | 386525-00 | 5 | DOWEL | B1 | |
||
| 88 | 033055-00 | 1 | PLUG | B1 | |
||
| 89 | 383451-00 | 1 | SADDLE | B1 | |
||
| 93 | 098197-09 | 4 | WASHER | B1 | |
||
| 94 | 383810-00 | 1 | MOUNT SA | Packaged SA | B1 | ||
| 104 | 388354-00 | 2 | WASHER | B1 | |
||
| 105 | 386491-00 | 1 | SLEEVE | B1 | |
||
| 108 | 397343-00 | 1 | LABEL | B1 | |||
| 109 | 330045-49 | 2 | SCREW | B1 | |
||
| 113 | 391740-00 | 1 | SPACER | B1 | |
||
| 118 | 391485-00 | 1 | O RING | B1 | |
||
| 132 | 384717-00 | 1 | WRENCH | B1 | |
||
| 153 | 398605-00 | 1 | RETAINER | FITS PIN W/MATTE FINISH ONLY | B1 | |
|
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | 1 LB. JAR | B1 | |
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | B1 |
