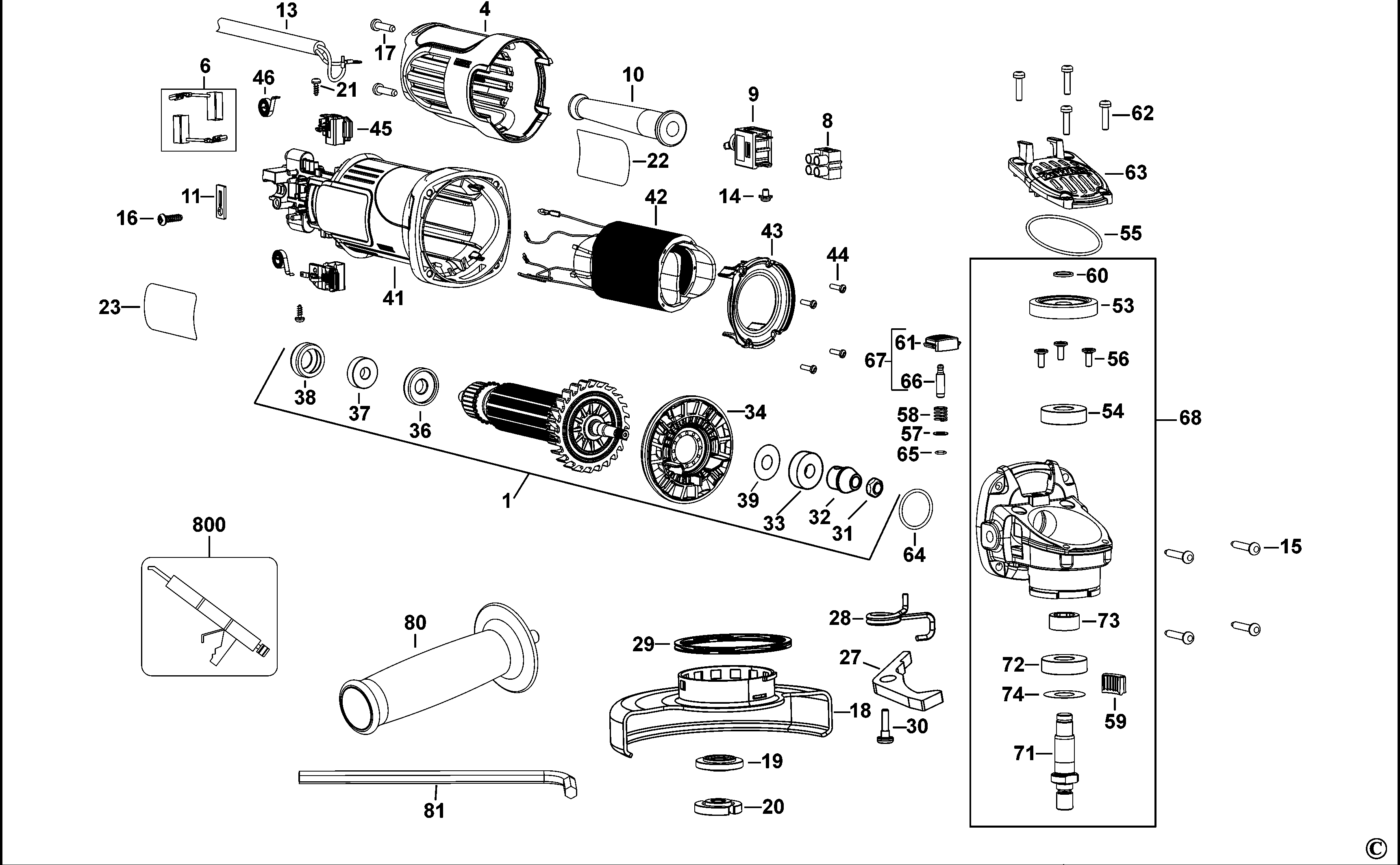

DWE4110 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N389433 | 1 | ARMATURE 230V | ZA | |||
| 4 | N121288-01 | 1 | HOUSING | ZA |  |
||
| 6 | N257700 | 1 | BRUSH PAIR 230V | ZA | |||
| 8 | 655417-00 | 1 | TERMINAL BLOCK | ZA | |||
| 9 | N016260 | 1 | SWITCH | ON/OFF, TOGGLE | ZA | |
|
| 10 | N447519 | 1 | CORD PROTECTOR | ZA | |
||
| 11 | 619328-00 | 1 | CORD CLAMP | ZA | |
||
| 14 | 627647-00 | 1 | SCREW | ZA | |
||
| 15 | 330065-31 | 4 | PLASTIC SCREW | ZA | |
||
| 16 | 562097-00 | 1 | SCREW | ZA | |
||
| 17 | N017839 | 2 | SCREW | ZA | |
||
| 18 | N143896 | 1 | GUARD | 115MM KEYLESS | ZA | |
|
| 19 | 391969-00 | 1 | INNER FLANGE | ZA | |
||
| 20 | N134466 | 1 | OUTER FLANGE | ZA | |
||
| 21 | 593478-00 | 2 | SCREW | M3 X 8 | ZA | |
|
| 22 | N149175 | 1 | BRAND LABEL | ZA | |
||
| 27 | N136731 | 1 | LEVER | ZA | |
||
| 28 | N105579 | 1 | SPRING | ZA | |
||
| 29 | N135116 | 1 | WASHER SPRING | ZA | |
||
| 30 | N137733 | 1 | SCREW | ZA |  |
||
| 31 | 604484-00 | 1 | NUT | ZA | |
||
| 32 | N153125 | 1 | PINION | ZA | |
||
| 33 | N175104 | 1 | BEARING | ZA | |
||
| 34 | N132042 | 1 | BAFFLE | ZA | |
||
| 36 | N101228 | 1 | WASHER | ZA | |
||
| 37 | N130916 | 1 | BEARING | ZA | |
||
| 38 | 641823-00 | 1 | SLEEVE | ZA | |
||
| 39 | N213812 | 1 | WASHER | ZA | |
||
| 41 | N121287-01 | 1 | FIELDCASE | ZA | |
||
| 42 | N232480 | 1 | FIELD 230V | ZA | |
||
| 43 | N132864 | 1 | BAFFLE | ZA | |
||
| 44 | 330065-25 | 2 | SCREW | ZA | |
||
| 45 | N097702 | 2 | BRUSHBOX | ZA | |
||
| 46 | N097703 | 2 | SPRING | ZA | |
||
| 53 | N153126 | 1 | GEAR | ZA | |
||
| 54 | N150961 | 1 | BEARING | ZA | |
||
| 55 | N094024 | 1 | O RING | ZA | |
||
| 56 | N118088 | 3 | SCREW | ZA | |
||
| 57 | N447838 | 1 | WASHER | ZA | |
||
| 58 | N092954 | 1 | SPRING | ZA | |
||
| 59 | N126708 | 1 | INSERT | ZA | |
||
| 60 | 444793-00 | 1 | CIRCLIP | ZA | |
||
| 61 | N126105 | 1 | BUTTON | ZA | |
||
| 62 | N122904 | 4 | SCREW | ZA | |
||
| 63 | N116180 | 1 | GEARCASE COVER | ZA | |
||
| 64 | N119639 | 1 | O RING | ZA | |
||
| 65 | N094012 | 1 | O RING | ZA | |
||
| 66 | N114592 | 1 | SPINDLE LOCK | ZA | |
||
| 67 | N181767 | 1 | SPINDLE LOCK | ZA | |
||
| 68 | N232479 | 1 | GEARCASE SA | ZA | |
||
| 71 | N110057 | 1 | SPINDLE | ZA | |
||
| 72 | N150961 | 1 | BEARING | ZA | |
||
| 73 | N095815 | 1 | SLEEVE | ZA | |
||
| 74 | 638229-00 | 1 | WASHER | ZA | |
||
| 80 | 562211-00 | 1 | HANDLE SIDE SA | ZA | |
||
| 81 | N107295 | 1 | HEX KEY | 6 mm | ZA | |
|
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | ZA | |
