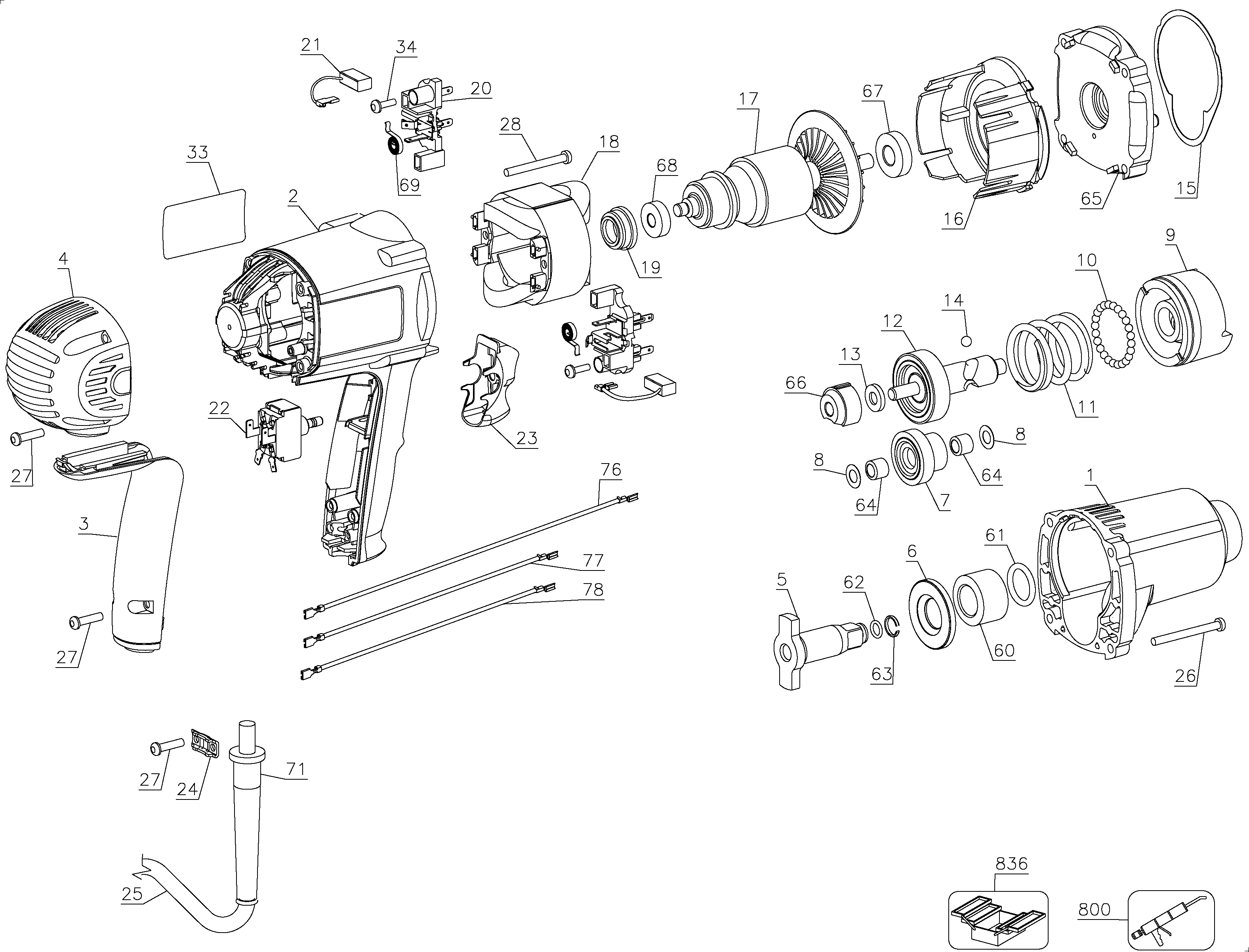

DW293 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N822135 | 1 | GEARCASE SA | PKGD 616822-00 | Incl. 60,61 | B1 |  |
| 2 | 616828-01 | 1 | FIELDCASE | ROCKER | B1 | ||
| 3 | 616829-00 | 1 | HANDLE COVER | ROCKER | B1 | ||
| 4 | 616830-00 | 1 | END CAP | B1 | |
||
| 5 | 616834-00SV | 1 | ANVIL | INC. 62,63 | B1 |  |
|
| 6 | 616859-00 | 1 | WASHER THRUST | B1 | |
||
| 7 | 135093-01SV | 1 | GEAR & PINION | B1 | |
||
| 8 | 135089-00 | 2 | WASHER | B1 | |
||
| 9 | 628129-00 | 1 | IMPACTOR | B1 | |
||
| 10 | 000475-00 | 25 | BALL STEEL | B1 | |
||
| 11 | 618843-00 | 1 | SPRING | B1 | |
||
| 12 | 659923-00SV | 1 | GEAR & CAM SA | B1 | |
||
| 13 | 450667-00 | 1 | WASHER | B1 | |
||
| 14 | 618844-00 | 2 | BALL STEEL | 1/4 INCH | B1 | |
|
| 15 | 616847-00 | 1 | GASKET | B1 | |
||
| 16 | 655537-00 | 1 | BAFFLE FAN | B1 | |
||
| 17 | 5140071-79 | 1 | ARMATURE KIT 220 | 230V | B1 | |
|
| 18 | 617862-01SV | 1 | FIELD | 230v | B1 | |
|
| 19 | 445217-01 | 1 | SLEEVE | B1 | |
||
| 20 | 616857-00 | 2 | BRUSH HOLDER | B1 | |
||
| 21 | 5140246-76 | 1 | BRUSH PAIR | 230V | B1 | |
|
| 22 | 616848-00 | 1 | SWITCH | ROCKER | B1 | |
|
| 23 | 617846-00 | 1 | TRIGGER | ROCKER | B1 | ||
| 24 | 450877-00 | 1 | CORD CLAMP | B1 | |
||
| 25 | 380651-09 | 1 | CORDSET | 2 PIN, 16-2SJT | B1 | ||
| 26 | 330019-18 | 4 | SCREW | M4.55 x 50 PLASTIC THD FMG | B1 | ||
| 27 | 330019-13 | 8 | SCREW | M4X19 T20 | B1 | |
|
| 28 | 330019-17 | 2 | SCREW | B1 | |
||
| 33 | 605523-00 | 1 | IDENTITY LABEL | B1 | |
||
| 34 | 176951-00 | 2 | SCREW | B1 | |
||
| 60 | N863052 | 1 | SERVICE KIT | INCL. SEAL | B1 | |
|
| 61 | N863052 | 1 | SERVICE KIT | INCL. SEAL | UP TO D/C 2020-30. ITEM 60 BEARING KIT INCL. SEAL | B1 | |
| 62 | 050056-00 | 1 | O RING | B1 | |
||
| 63 | 086947-00 | 1 | CIRCLIP | B1 | |
||
| 64 | 330004-02 | 2 | BEARING NEEDLE | B1 | |
||
| 65 | 616823-00SV | 1 | GEARCASE COVER SA | Incl. 66,67 | B1 | |
|
| 66 | 616841-00 | 1 | BEARING BLOCK | B1 | |
||
| 67 | 616823-00SV | 1 | GEARCASE COVER SA | B1 | |
||
| 68 | 330003-04 | 1 | BEARING | B1 | |||
| 69 | 383387-00 | 2 | BRUSH SPRING | B1 | |
||
| 71 | 330005-01 | 1 | CORD PROTECTOR | B1 | |
||
| 76 | 616851-01 | 1 | LEAD | RED, 235MM | B1 | ||
| 77 | 616851-03 | 1 | LEAD | YELLOW, 140MM | B1 | ||
| 78 | 616851-02 | 1 | LEAD | BLACK, 140MM | B1 | ||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | B1 | |
|
| 836 | 233804-32 | 1 | SERVICE TOOL | 626571-00 | FOR ARMATURE FAN END BRG. | B1 |
