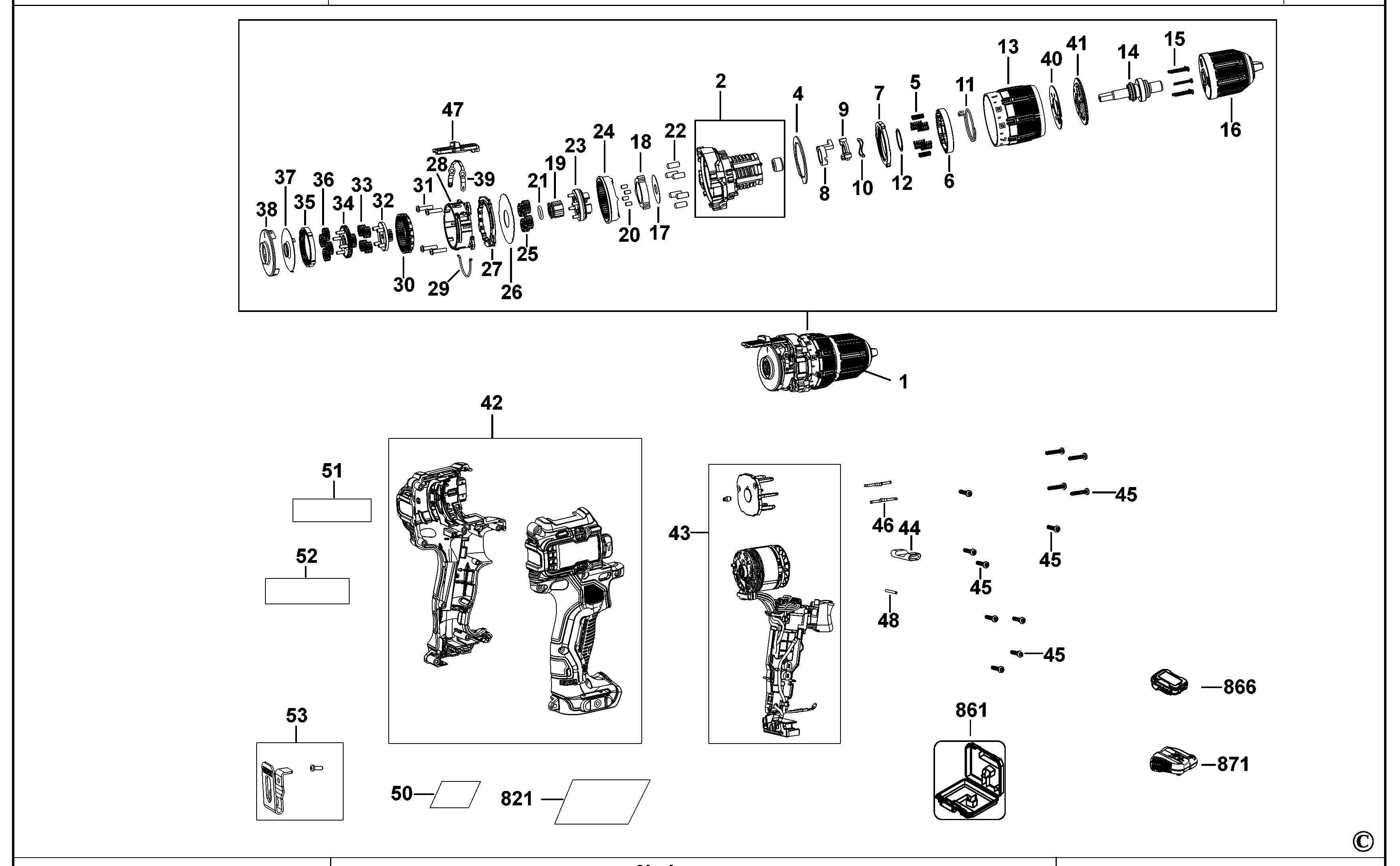

DCD706 CORDLESS DRILL/DRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N826225 | 1 | TRANSMISSION SA | B1 | |||
| 2 | N726443 | 1 | HOUSING SA | B1 |  |
||
| 4 | N527877 | 1 | WASHER | B1 | |
||
| 5 | N527878 | 12 | SPRING | B1 | |
||
| 6 | N527879 | 1 | SPRING | B1 | |
||
| 7 | N527880 | 1 | ADJUSTER TORQUE | B1 | |
||
| 8 | N598613 | 1 | GEAR | B1 | |
||
| 9 | N598614 | 1 | GEAR | B1 | |
||
| 10 | N000226 | 1 | LABEL | REGULATOR KNOB ADJ | B1 | ||
| 11 | N616763 | 1 | SPRING | B1 | |
||
| 12 | N613395 | 1 | WASHER | B1 | |
||
| 13 | N657958 | 1 | COLLAR | B1 | |
||
| 14 | N725221 | 1 | SPINDLE SA | B1 | |||
| 15 | N039795 | 5 | SCREW | B1 |  |
||
| 16 | N607028 | 1 | CHUCK KEYLESS | B1 | |
||
| 17 | N090435 | 1 | WASHER | B1 | |
||
| 18 | N022985 | 1 | LOCKING RING | B1 | |
||
| 19 | N645930 | 1 | ANVIL ASSEMBLY | B1 | |
||
| 20 | N507193 | 4 | PIN | B1 | |||
| 21 | N703476 | 1 | O RING | B1 | |||
| 22 | N645931 | 6 | PIN | B1 | |
||
| 23 | N725223 | 1 | CARRIER SA | B1 | |
||
| 24 | N531435 | 1 | GEAR | B1 | |
||
| 25 | N657897 | 4 | GEAR | B1 | |
||
| 26 | N531627 | 1 | WASHER | B1 | |||
| 27 | N531634 | 1 | RING | B1 | |||
| 28 | N531638 | 1 | HOUSING | B1 | |
||
| 29 | N552206 | 1 | WIRE STEEL | B1 | |||
| 30 | N531632 | 1 | GEAR | B1 | |
||
| 31 | N075506 | 4 | SCREW | B1 | |
||
| 32 | N681265 | 1 | CARRIER SA | B1 | |
||
| 33 | N531633 | 4 | GEAR | B1 | |
||
| 34 | N681266 | 1 | CARRIER SA | B1 | |
||
| 35 | N549298 | 1 | GEAR | B1 | |
||
| 36 | N531637 | 4 | GEAR | B1 | |
||
| 37 | N550764 | 1 | WASHER | B1 | |||
| 38 | N549069 | 1 | PLATE | B1 | |||
| 39 | N551526 | 1 | LINK | B1 | |||
| 40 | N530050 | 1 | WASHER | B1 | |
||
| 41 | N693235 | 1 | COVER | B1 | |
||
| 42 | N652991 | 1 | CLAMSHELL SET | B1 | |
||
| 43 | N681272 | 1 | MOTOR & SWITCH SA | B1 | |
||
| 44 | N399342 | 1 | ACTUATOR FWD/REV | B1 | |
||
| 45 | N463678 | 12 | SCREW | B1 | |
||
| 46 | N014681 | 2 | LEAF SPRING | B1 | |
||
| 47 | N725238 | 1 | SELECTOR | B1 | |||
| 48 | N660916 | 1 | PIN | B1 | |
||
| 50 | N855600 | 1 | LABEL | FOOT | B1 | |
|
| 51 | N658203 | 1 | BRAND LABEL | B1 | |
||
| 52 | N658202 | 1 | LABEL | B1 | |
||
| 53 | N735595 | 1 | HOOK SA | B1 | |||
| 821 | N855599 | 1 | RATING LABEL | DCD706D2 | B1 | |
|
| 861 | N614791 | 1 | KITBOX | B1 | |
||
| 866 | N718656 | 2 | BATTERY PACK | DCD706D2 | B1 | |
|
| 871 | DCB112-B1 | 1 | CHARGER | DCD706D2 | B1 |
