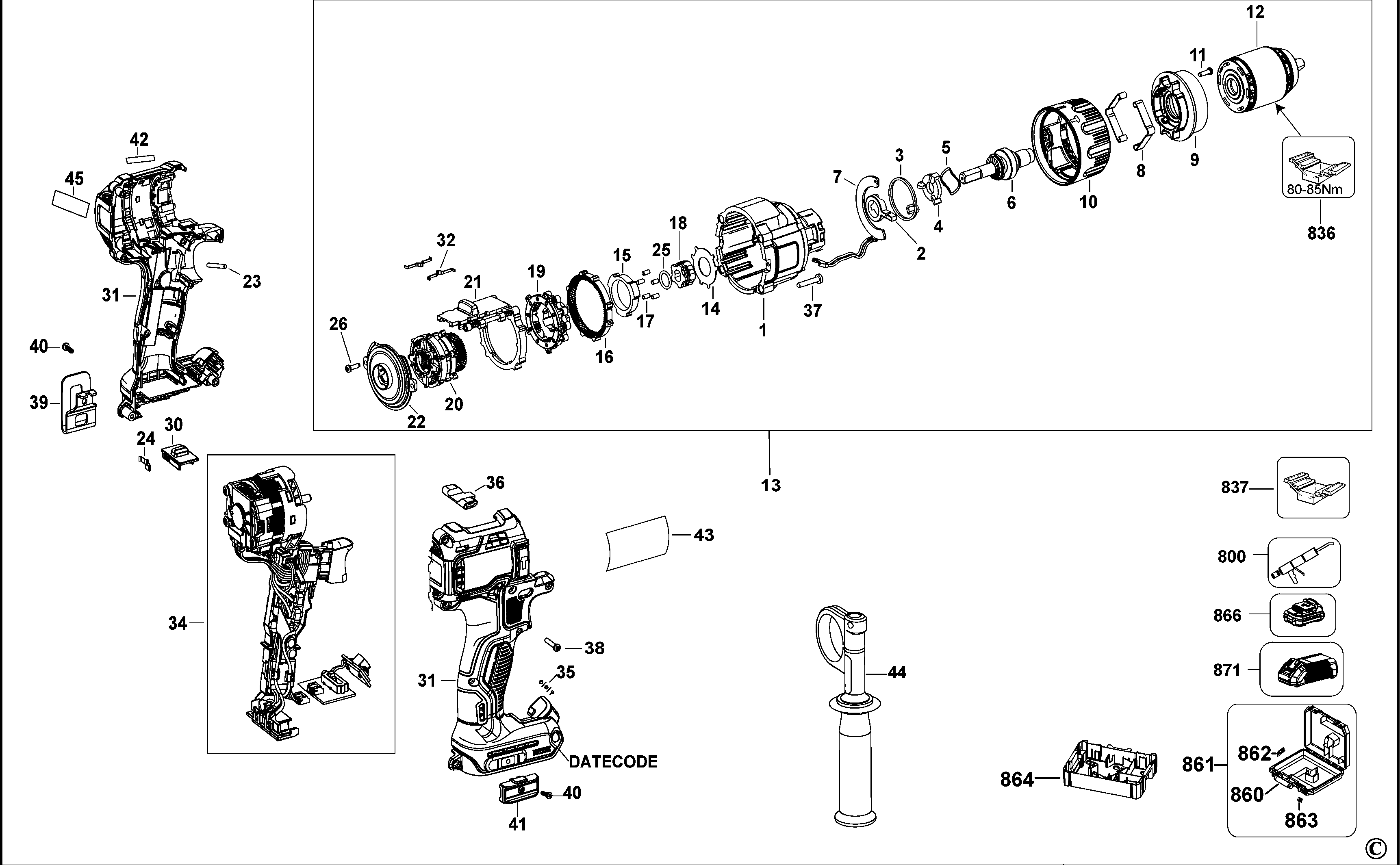

DCD996 CORDLESS DRILL 18V LI-ION Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N484226 | 1 | GEARCASE SA | GB |  |
||
| 2 | N146719 | 1 | LEVER | GB | |
||
| 3 | N316079 | 1 | SPRING | GB | |
||
| 4 | N149367 | 1 | GEAR | GB | |
||
| 5 | N269741 | 1 | WASHER SPRING | GB | |
||
| 6 | N481785 | 1 | SPINDLE SA | GB | |
||
| 7 | N481813 | 1 | SENSOR | GB | |
||
| 8 | N165352 | 2 | DETENT | GB | |
||
| 9 | N161216 | 1 | END CAP | GB |  |
||
| 10 | N443281 | 1 | COLLAR | GB | |
||
| 11 | N359062 | 3 | SCREW | M3 X 12 | GB | |
|
| 12 | N454251 | 1 | CHUCK KEYLESS | GB | |
||
| 13 | N470351 | 1 | GEARBOX SA | GB | |
||
| 14 | 652378-00 | 1 | PLATE | GB | |
||
| 15 | N375852 | 1 | LOCKING RING | GB | |
||
| 16 | N375864 | 1 | GEAR | GB | |
||
| 17 | 654110-00 | 5 | ROLLER | GB | |
||
| 18 | N481809 | 1 | ANVIL | GB | |
||
| 19 | N375865 | 1 | GEAR SA | GB | |
||
| 20 | N481798 | 1 | GEAR SA | GB | |
||
| 21 | N375867 | 1 | SLIDER SA | GB | |
||
| 22 | N375868 | 1 | BAFFLE SA | GB | |
||
| 23 | N071836 | 2 | ROLL PIN | GB | |
||
| 24 | N392855 | 1 | DETENT | GB | |
||
| 25 | N309119 | 1 | O RING | 10.82 ID - 1.78 DIA | GB | |
|
| 26 | N281559 | 2 | SCREW | T10 - M3 THD FORM | GB | |
|
| 30 | N393603 | 1 | SELECTOR | GB | |
||
| 31 | N810034 | 1 | CLAMSHELL SA | GB | |
||
| 32 | N014681 | 2 | LEAF SPRING | GB | |
||
| 34 | N481825 | 1 | MOTOR & SWITCH SA | GB | |
||
| 35 | N439418 | 1 | LABEL | GB | |
||
| 36 | N431555 | 1 | ACTUATOR FWD/REV | GB | |
||
| 37 | 330019-52 | 4 | SCREW | GB | |
||
| 38 | 682211-00 | 8 | SCREW | GB | |
||
| 39 | N086039 | 1 | HOOK | GB | |
||
| 40 | N042665 | 2 | SCREW | GB | |
||
| 41 | N095778 | 1 | HOLDER BIT | GB | |
||
| 42 | N237999 | 1 | LABEL | 18V | GB | |
|
| 43 | N720396 | 1 | RATING PLATE | EURO | GB | |
|
| 44 | N433408 | 1 | SIDE HANDLE | Length 234 mm | GB | |
|
| 45 | N317859 | 1 | LABEL | BRUSHLESS | GB | |
|
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | GB | |
|
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | GB | |
||
| 836 | 596004-99 | 1 | S.T.INSERT | GB | |
||
| 837 | N354959 | 1 | SERVICE TOOL | DIAGNOSTICS | GB | |
|
| 860 | H1400196008 | 2 | HANDLE | GB | |
||
| 861 | N279261 | 1 | KITBOX | DCD996T1-T2-X | GB | |
|
| 861 | N312359 | 1 | KITBOX | T-STAK | GB | ||
| 861 | N506511 | 1 | KITBOX | T-STAK | DCD996M1-M2 | GB | |
| 862 | H1500082520 | 2 | LATCH | GB | |||
| 863 | P910190 | 2 | LATCH | GB | |
||
| 864 | N530863 | 1 | INSERT | KITBOX | DCD996T1-T1-X | GB | |
| 866 | N195933 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182; Li-Ion - DCB182-XJ | DCD996M1-M2 | GB | |
| 866 | N473851 | 1 | BATTERY 3 X18V-6.0AH-108WH | Li-Ion - DCB546-XJ | DCD996T1-T2 | GB | |
| 866 | N491552 | 1 | BATTERY 3 X18V-9.0AH-162WH | DCB547-XJ | DCD996X | GB | |
| 871 | N473855 | 1 | CHARGER GB | DCB118-GB | DCD996T1-T2-X | GB | |
