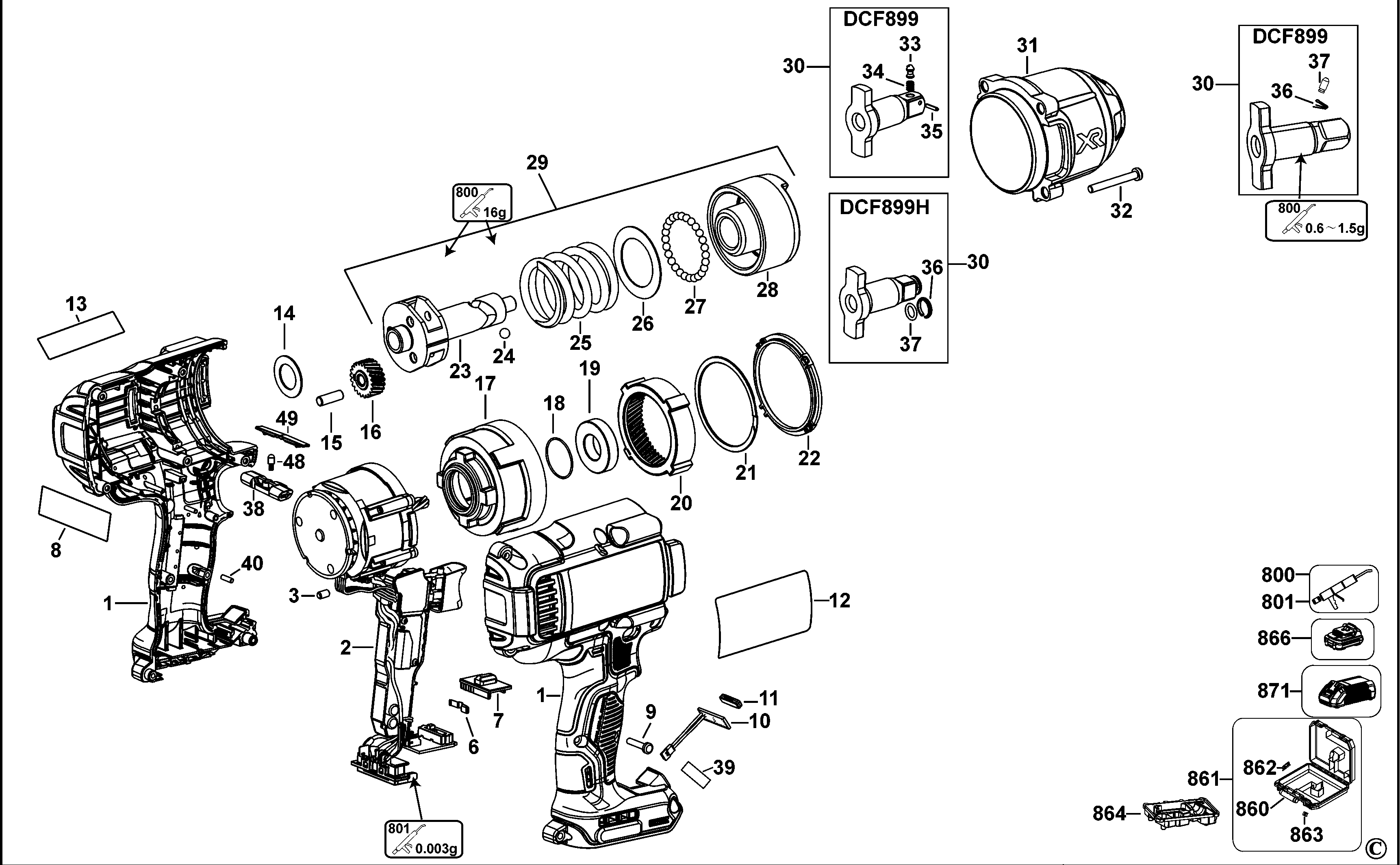

DCF899 IMPACT WRENCH Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N371919 | 1 | CLAMSHELL SET | EURO | XE | ||
| 2 | N578553 | 1 | MOTOR & SWITCH SA | XE | |||
| 3 | N186764 | 4 | RUBBER PAD | 4.5x8.0mm | XE | ||
| 6 | N392855 | 1 | DETENT | XE | |||
| 7 | N393603 | 1 | SELECTOR | XE | |||
| 8 | N404526 | 1 | LABEL | BRUSHLESS | XE | ||
| 9 | 90611830 | 9 | SCREW | XE | |||
| 10 | N231799 | 1 | LED LIGHT | XE | |||
| 11 | N394333 | 1 | LENS | XE | |||
| 12 | N472546 | 1 | RATING PLATE | DCF899-XE Type 3 | DCF899 | XE | |
| 12 | N473801 | 1 | RATING PLATE | DCF899H-XE Type 3 | DCF899H | XE | |
| 13 | N237999 | 1 | LABEL | 18V | XE | ||
| 14 | N114027 | 1 | WASHER | ID 17.14 OD 28 x 1.0 | XE | ||
| 15 | N194994 | 3 | PIN | XE | |||
| 16 | N389396 | 3 | GEAR | HELICAL | XE | ||
| 17 | N363283 | 1 | GEARCASE | XE | |||
| 18 | N411414 | 1 | O RING | 25.12 x 1.78 | XE | ||
| 19 | N158641 | 1 | BEARING | 17.0 x 35.0 x 8.0 | XE | ||
| 20 | N389398 | 1 | GEAR | HELICAL | XE | ||
| 21 | N389400 | 1 | RING | XE | |||
| 22 | N410641 | 1 | SEAL | XE | |||
| 23 | N456898 | 1 | CARRIER SA | XE | |||
| 24 | 618844-00 | 2 | BALL STEEL | 1/4 INCH | XE | ||
| 25 | N377938 | 1 | SPRING | XE | |||
| 26 | N377515 | 1 | WASHER THRUST | XE | |||
| 27 | 000475-00 | 27 | BALL STEEL | XE | |||
| 28 | N377373 | 1 | IMPACTOR | XE | |||
| 29 | N851243 | 1 | IMPACTOR | PKGD N766850 | XE | ||
| 30 | N866411 | 1 | NOSE SA | Type 3 to Type 4 | DCF899H | XE | |
| 30 | N880093 | 1 | SERVICE KIT | DCF899 | XE | ||
| 31 | N866410 | 1 | NOSE SA | Ty3-Ty4 ANVIL/NOSE | DCF899 | XE | |
| 31 | N866411 | 1 | NOSE SA | Type 3 to Type 4 | DCF899H | XE | |
| 32 | 330019-16 | 4 | SCREW | XE | |||
| 33 | N020802 | 1 | DETENT | DCF899 | XE | ||
| 34 | 038769-00 | 1 | SPRING | DCF899 | XE | ||
| 35 | 099205-07 | 1 | ROLL PIN | DCF899 | XE | ||
| 36 | 086947-00 | 1 | CIRCLIP | DCF899H | XE | ||
| 36 | N481048 | 1 | SPRING | DCF899 | XE | ||
| 37 | N587510 | 1 | DETENT | DCF899 | XE | ||
| 37 | 050056-00 | 1 | O RING | DCF899H | XE | ||
| 38 | N137055 | 1 | ACTUATOR FWD/REV | XE | |||
| 39 | N408083 | 1 | LABEL | XE | |||
| 40 | N071836 | 1 | ROLL PIN | XE | |||
| 41 | N464079 | 1 | WASHER | XE | |||
| 48 | 326467-00 | 1 | DETENT | XE | |||
| 49 | N419514 | 1 | DETENT | FWD/REV | XE | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | 0.016g | XE | |
| 801 | N108694 | 1 | GREASE | NYE Nyogel 760G 30ml | Battery terminals | XE | |
| 860 | H1400196008 | 2 | HANDLE | XE | |||
| 871 | N126190 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-XE | XE |
