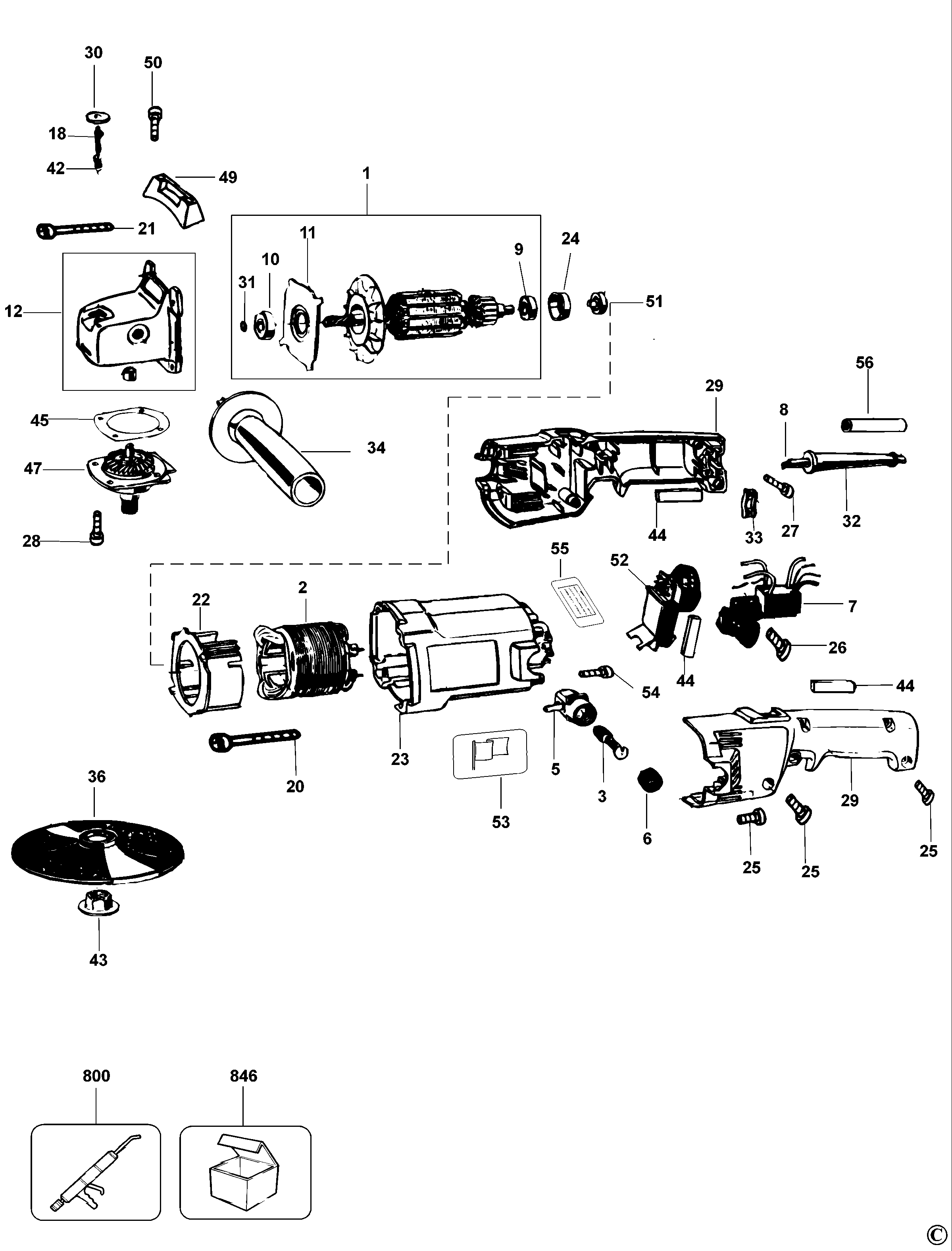

DW849 POLISHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448519-08SV | 1 | ARMATURE & FAN | 6 TEETH INC 8,9,11,25 | XD |  |
|
| 2 | 448171-75SV | 1 | FIELD | XD | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | XD |  |
||
| 4 | 448083-01 | 2 | BRUSHBOX SA | XD | |
||
| 5 | 448084-01 | 2 | BRUSH CAP | XD | |
||
| 6 | 450892-04 | 1 | SWITCH | XD | |||
| 7 | 330060-78 | 1 | CORD | XD | |
||
| 8 | 330003-04 | 1 | BEARING | XD | |||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | XD | |
|
| 11 | 448079-00 | 1 | PLATE | XD | |||
| 12 | 448506-07SV | 1 | CASE-GEAR | INC 13 | XD | ||
| 13 | 449852-00 | 1 | SLEEVE BEARING | XD | |
||
| 18 | 447827-00 | 1 | PIN | XD | |||
| 19 | 448127-01 | 1 | WASHER | XD | |
||
| 20 | 448136-00 | 1 | SPRING | XD | |
||
| 21 | 330019-15 | 4 | SCREW | XD | |
||
| 22 | 5140120-49 | 1 | GASKET | PCKG'D 143106-00 | XD | ||
| 24 | 158472-00 | 4 | SCREW | XD | |
||
| 25 | 696060-00 | 1 | RETAINER | XD | |
||
| 26 | 086319-19 | 1 | SIDE HANDLE | XD | |
||
| 27 | 447786-00 | 1 | BAFFLE FAN | XD | |
||
| 28 | 330044-23 | 2 | SCREW | XD | |
||
| 29 | 447799-08 | 1 | FIELDCASE | XD | |
||
| 30 | 330019-13 | 8 | SCREW | M4X19 T20 | XD | |
|
| 31 | 151122-12 | 1 | HANDLE COVER | XD | |
||
| 32 | 330005-01 | 1 | CORD PROTECTOR | XD | |
||
| 33 | 142519-00 | 1 | CABLE CLAMP | XD | |||
| 34 | 330019-03 | 2 | SCREW | XD | |
||
| 35 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | XD | |
|
| 36 | DAJHXKMD01 | 1 | BACKING PAD | 7in x 5/8-11, MEDIUM | XD | ||
| 37 | 150844-00 | 2 | PAD | XD | |
||
| 38 | 636574-00 | 1 | WASHER CLAMP | XD | |
||
| 40 | 445217-02 | 1 | SLEEVE | XD | |
||
| 42 | 148210-01 | 1 | MAGNET | XD | |
||
| 43 | 138122-22 | 1 | MODULE | XD | |
||
| 47 | 330019-02 | 1 | SCREW | XD | |
||
| 49 | 148622-00 | 1 | BUMPER | XD | |||
| 50 | 133895-00 | 2 | SCREW | XD | |||
| 51 | 449706-09SV | 1 | SPINDLE & GEAR | M14x2 | M14 x 2 THREAD | XD | |
| 53 | 627212-00 | 1 | BRAND LABEL | DEWALT | XD | ||
| 54 | 150087-01 | 1 | SPINDLE | M14 | XD | ||
| 56 | 150855-00 | 1 | TUBE | XD | |
||
| 60 | 233720-02 | 1 | BIT SCREWDRIVER | XD | |
||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | XD | |
|
| 856 | 384480-00 | 1 | BONNET POLISHING | XD | |
