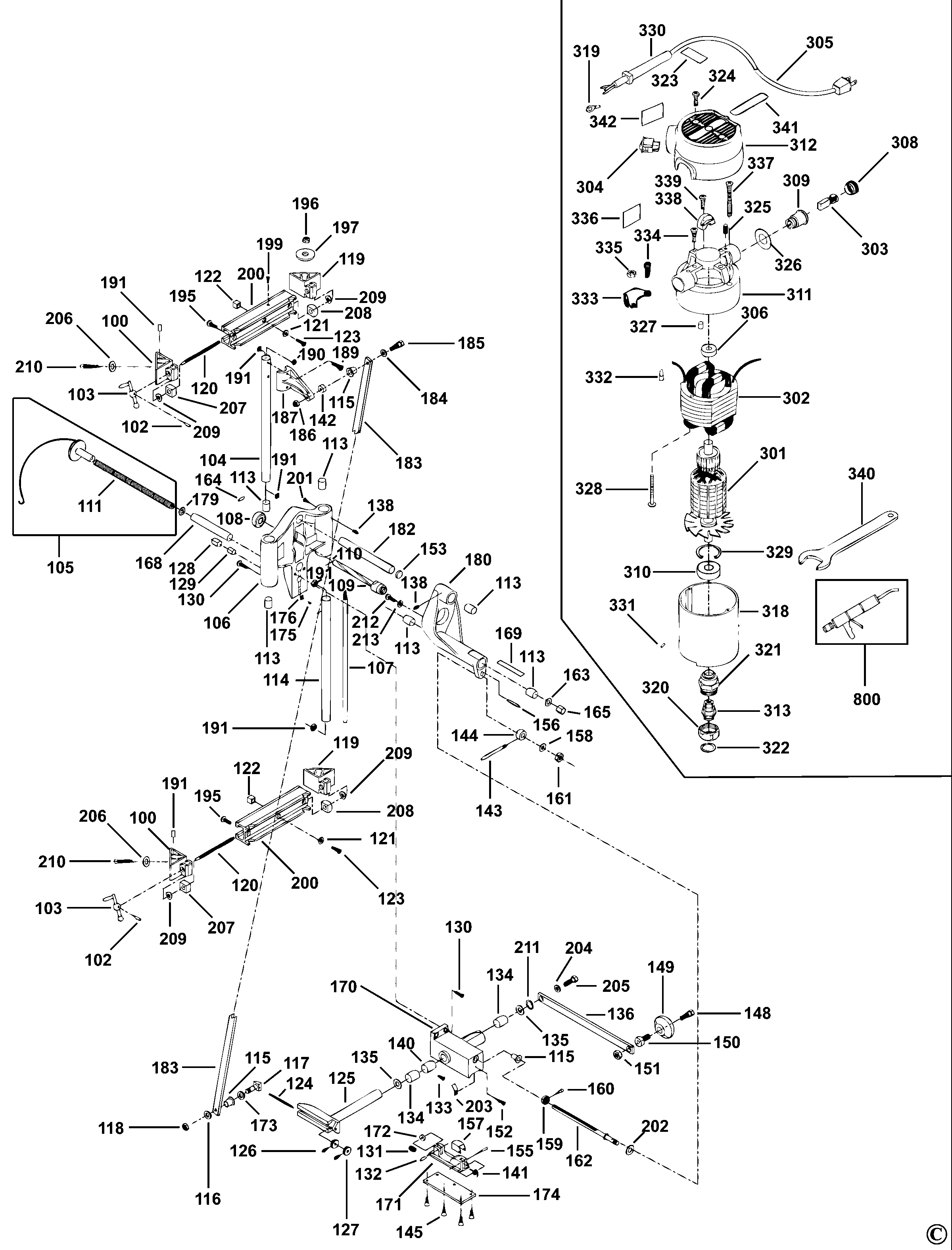

513 MORTICER Type 8 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 100 | 697216 | 1 | VICE JAW | XE | |||
| 102 | 695842 | 10 | SCREW | XE | |||
| 103 | 882450 | 1 | Handle | XE | |||
| 104 | 697212 | 1 | TUBE | LH | XE | ||
| 105 | 800175 | 1 | PULLEY | INCL. 111 | XE | ||
| 106 | 695486 | 1 | FRAME SA | XE | |||
| 106 | 800112 | 1 | HOUSING | XE | |||
| 107 | 804960 | 1 | ROD DEPTH | XE | |||
| 108 | 855259 | 1 | BEARING SA | XE | |||
| 109 | 695474 | 1 | SHAFT | XE | |||
| 110 | 696696 | 10 | SCREW | XE | |||
| 111 | 874605 | 1 | CABLE SA | XE | |||
| 113 | 800113 | 10 | BUSHING | Bronze | XE | ||
| 114 | 697211 | 1 | TUBE | RH | XE | ||
| 115 | 845840 | 10 | BUSHING | XE | |||
| 116 | 801349 | 10 | WASHER | XE | |||
| 117 | 695643 | 1 | PIN | XE | |||
| 118 | 698297 | 1 | LOCK NUT | XE | |||
| 119 | 697216 | 1 | VICE JAW | XE | |||
| 120 | 697215 | 1 | LOCKING SCREW | XE | |||
| 121 | 863428 | 10 | WASHER | XE | |||
| 122 | 697209 | 1 | BLOCK | XE | |||
| 123 | 804309 | 1 | SCREW | XE | |||
| 124 | 882259 | 1 | KNOB SA | INCL. 126, 128 | XE | ||
| 125 | 697225 | 1 | CRANK | XE | |||
| 126 | 804360 | 10 | SCREW | SET 8-32x3/16 CUP PT | XE | ||
| 127 | 800145 | 1 | KNOB | XE | |||
| 128 | 695454 | 1 | COVER | XE | |||
| 129 | 800201 | 1 | TUBE | XE | |||
| 130 | 803403 | 10 | SCREW | XE | |||
| 131 | 800127 | 10 | SPRING | XE | |||
| 132 | 800124 | 10 | PIN | XE | |||
| 133 | 804595 | 10 | SCREW | XE | |||
| 134 | 800140 | 10 | BUSHING | XE | |||
| 135 | 859731 | 1 | WASHER | XE | |||
| 136 | 697230 | 1 | LEVER | XE | |||
| 138 | 862554 | 10 | GRUB SCREW | XE | |||
| 140 | 695462 | 1 | CAM | XE | |||
| 141 | 695470 | 10 | SPRING | XE | |||
| 142 | 866795 | 10 | SPACER | XE | |||
| 143 | 695464 | 1 | LEVER | XE | |||
| 144 | 695466 | 1 | COLLAR | XE | |||
| 145 | 800120 | 10 | SCREW | XE | |||
| 148 | 800137 | 10 | BOLT | XE | |||
| 149 | 800374 | 1 | KNOB | XE | |||
| 150 | 800135 | 10 | BUSHING | XE | |||
| 151 | 862155 | 10 | NUT | XE | |||
| 152 | 689229 | 10 | SCREW | XE | |||
| 153 | 695453 | 1 | PLUG | XE | |||
| 155 | 695458 | 10 | PIN | XE | |||
| 156 | 695457 | 10 | ROLL PIN | XE | |||
| 157 | 695463 | 1 | PAWL | XE | |||
| 158 | 801377 | 10 | WASHER | 11.0x20.0x2.0 FLAT | XE | ||
| 159 | 695471 | 1 | COLLAR SA | Inc O ring | XE | ||
| 160 | 852428 | 10 | SCREW | XE | |||
| 161 | 862694 | 10 | NUT | XE | |||
| 162 | 695843 | 1 | ROD SA | XE | |||
| 163 | 800168 | 10 | WASHER | XE | |||
| 164 | 800185 | 10 | PIN | XE | |||
| 165 | 800167 | 1 | CAP | XE | |||
| 168 | 800166 | 1 | TUBE | XE | |||
| 169 | 800210 | 1 | SLIDE | XE | |||
| 170 | 695482 | 1 | HOUSING SA | XE | |||
| 171 | 695489 | 1 | SLIDE | XE | |||
| 172 | 800123 | 1 | ROLLER | XE | |||
| 173 | 800142 | 10 | WASHER | XE | |||
| 174 | 800119 | 1 | PLATE | XE | |||
| 175 | 801896 | 10 | SCREW | XE | |||
| 176 | 800208 | 1 | KEY | XE | |||
| 179 | 803496 | 10 | WASHER | 0.635x1.1x0.31 FIBER | XE | ||
| 180 | 873568 | 1 | CARRIAGE SA | INCL 114 | XE | ||
| 182 | 800165 | 1 | TUBE | XE | |||
| 183 | 697210 | 1 | ARM | XE | |||
| 184 | 801377 | 1 | WASHER | 11.0x20.0x2.0 FLAT | XE | ||
| 185 | 802201 | 10 | SCREW | 3/8-16x1.25 HEX | XE | ||
| 186 | 800190 | 10 | NUT | XE | |||
| 187 | 800187 | 1 | LINK | XE | |||
| 189 | 800191 | 10 | SCREW | XE | |||
| 190 | 800192 | 10 | NUT | XE | |||
| 191 | 800161 | 10 | NUT | XE | |||
| 195 | 823193 | 10 | SCREW | 5/16-18x1.0 | XE | ||
| 196 | 800204 | 10 | NUT | XE | |||
| 197 | 800203 | 1 | STOP | XE | |||
| 199 | 801374 | 10 | SCREW | XE | |||
| 200 | 697233 | 1 | HOUSING | XE | |||
| 201 | 873982 | 10 | SCREW | 8-32 x 5/16 PAN HD | XE | ||
| 202 | 695460 | 10 | WASHER | XE | |||
| 203 | 695469 | 1 | CLIP | XE | |||
| 204 | 801530 | 10 | WASHER | XE | |||
| 205 | 804309 | 10 | SCREW | XE | |||
| 206 | 800250 | 10 | WASHER | XE | |||
| 207 | 697219 | 10 | NUT | LH | XE | ||
| 208 | 697218 | 10 | NUT RH | XE | |||
| 209 | 697220 | 10 | WASHER SPRING | XE | |||
| 210 | 697236 | 10 | BOLT | XE | |||
| 211 | 697228 | 10 | CIRCLIP | XE | |||
| 212 | 693973 | 10 | SCREW | XE | |||
| 213 | 802752 | 10 | WASHER | 7/32x7/16 FLAT | XE | ||
| 301 | 874588 | 1 | ARMATURE | XE | |||
| 302 | 874589 | 1 | FIELD | XE | |||
| 303 | N031652 | 2 | BRUSH | XE | |||
| 304 | 876320 | 1 | SWITCH | XE | |||
| 305 | 874544 | 1 | CORDSET | XE | |||
| 306 | N110358 | 1 | BEARING | XE | |||
| 308 | 803483 | 2 | BRUSH CAP | XE | |||
| 309 | 873497 | 2 | BRUSH HOLDER | XE | |||
| 310 | 878064 | 1 | BEARING | XE | |||
| 311 | A22753 | 1 | HOUSING REAR | XE | |||
| 312 | 888727 | 1 | END CAP | XE | |||
| 313 | 42950 | 1 | COLLET 1/2 | XE | |||
| 313 | 42999 | 1 | COLLET 1/4 | XE | |||
| 313 | 876669 | 1 | COLLET 1/4 | XE | |||
| 313 | 876671 | 1 | COLLET 1/2 | XE | |||
| 318 | A14575 | 1 | HOUSING MOTOR | XE | |||
| 319 | 849314 | 1 | CONNECTOR | XE | |||
| 320 | 875893 | 1 | COLLET NUT | XE | |||
| 321 | 872793 | 1 | CHUCK | XE | |||
| 322 | 823030 | 1 | SPRING CLIP | XE | |||
| 323 | A11331 | 1 | WARNING LABEL | XE | |||
| 324 | 878389 | 2 | SCREW | XE | |||
| 325 | 803632 | 2 | GRUB SCREW | XE | |||
| 326 | 803496 | 2 | WASHER | 0.635x1.1x0.31 FIBER | XE | ||
| 327 | 898484 | 1 | PLUG | XE | |||
| 328 | 838312 | 2 | SCREW | XE | |||
| 329 | 802426 | 1 | RING | XE | |||
| 330 | 901266 | 1 | CORD PROTECTOR | XE | |||
| 331 | 800835 | 4 | PIN | XE | |||
| 332 | 682063 | 4 | CONNECTOR | XE | |||
| 333 | 876396 | 1 | BRACKET | XE | |||
| 334 | 892780 | 1 | SCREW | XE | |||
| 335 | 694771 | 2 | NUT | XE | |||
| 336 | A24391 | 1 | WARNING LABEL | XE | |||
| 337 | 681260 | 2 | SCREW | XE | |||
| 338 | 874137 | 1 | CORD CLAMP | XE | |||
| 339 | 878262 | 2 | SCREW | XE | |||
| 340 | A22709 | 1 | WRENCH SPECIAL | XE | |||
| 341 | A22784 | 1 | BRAND LABEL | XE | |||
| 342 | A22781 | 1 | RATING PLATE | 86902 TYPE 8 | XE | ||
| 800 | 883807 | 1 | GREASE | XE |
