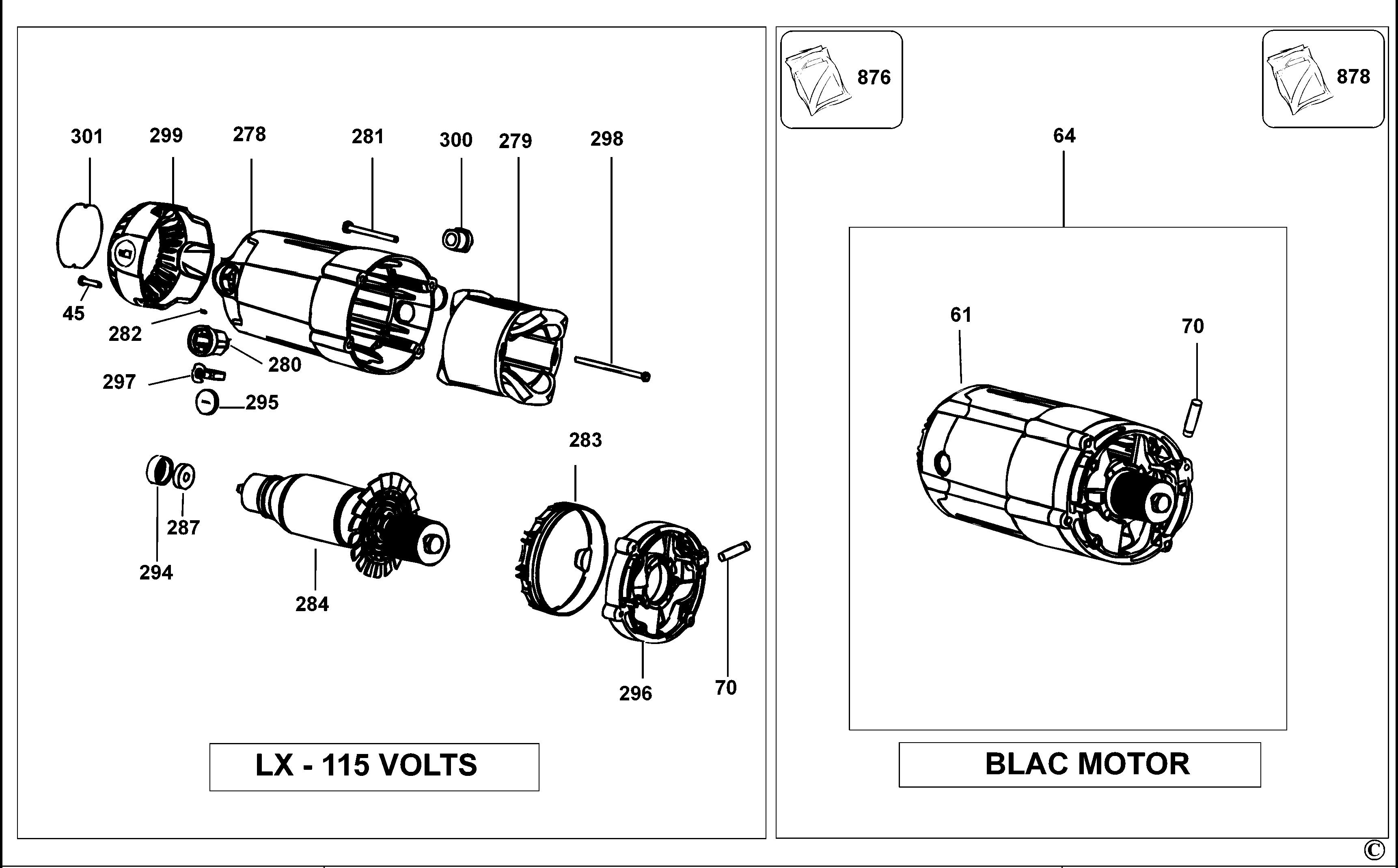

D27105 COMBINATION SAW Type 2 | Drawings
Documents
| Item No. |
Product Number |
Qty Per |
Product Description |
General Description |
Other Info |
Markets |
Product Status |
| 1 |
98094-35
|
4 |
SCREW |
M5 x 35 |
|
XE |
![]() |
| 2 |
147107-06
|
1 |
KNOB |
|
|
XE |
![]() |
| 3 |
152852-00
|
1 |
BOLT |
|
|
XE |
![]() |
| 4 |
N453995
|
1 |
BELT |
|
|
XE |
![]() |
| 5 |
153639-00
|
4 |
SCREW |
|
|
XE |
![]() |
| 6 |
398472-00
|
2 |
SPRING TORSION |
|
|
XE |
![]() |
| 7 |
605603-00
|
1 |
LEVER |
|
|
XE |
![]() |
| 8 |
606278-00
|
1 |
LINKAGE SA |
UPLOCK |
|
XE |
![]() |
| 9 |
606279-00
|
1 |
PLATE |
|
|
XE |
![]() |
| 10 |
607221-00
|
1 |
PLATE |
|
|
XE |
![]() |
| 11 |
330045-05
|
11 |
SCREW |
|
|
XE |
![]() |
| 12 |
618480-00
|
1 |
WASHER FELT |
|
|
XE |
![]() |
| 13 |
153561-00
|
1 |
LOCKING PIN |
|
|
XE |
![]() |
| 14 |
385915-01
|
4 |
SCREW |
|
|
XE |
![]() |
| 15 |
391315-00
|
1 |
GASKET |
|
|
XE |
![]() |
| 16 |
393071-00
|
1 |
PLATE |
|
|
XE |
![]() |
| 17 |
868082-00
|
2 |
SPRING |
|
|
XE |
![]() |
| 26 |
605040-59
|
1 |
BEARING |
|
|
XE |
![]() |
| 27 |
330003-66
|
1 |
BEARING,BALL |
|
|
XE |
![]() |
| 28 |
627904-00
|
1 |
BEARING PLATE |
|
|
XE |
![]() |
| 29 |
391616-00
|
1 |
BEARING NEEDLE |
|
|
XE |
![]() |
| 30 |
621759-00
|
1 |
GEARCASE COVER |
Inc 29 |
+ 29 |
XE |
![]() |
| 31 |
869219-06
|
1 |
SPINDLE & GEAR SA |
|
|
XE |
![]() |
| 32 |
330045-49
|
7 |
SCREW |
|
|
XE |
![]() |
| 33 |
869219-07
|
1 |
SPINDLE & GEAR SA |
|
|
XE |
![]() |
| 34 |
N105443
|
1 |
PULLEY SA |
inc 33,35 |
|
XE |
![]() |
| 35 |
612349-00
|
1 |
ARM |
|
+ 36,37,38,39 |
XE |
![]() |
| 36 |
148608-00
|
2 |
INSERT |
|
|
XE |
![]() |
| 37 |
386780-00
|
2 |
BEARING |
|
|
XE |
![]() |
| 38 |
621329-00
|
1 |
IDENTITY LABEL |
|
|
XE |
![]() |
| 40 |
616726-00
|
1 |
RETAINER |
|
|
XE |
![]() |
| 41 |
612350-00
|
1 |
CORD CLAMP |
|
|
XE |
![]() |
| 42 |
613781-00
|
1 |
COVER |
|
|
XE |
![]() |
| 43 |
605786-01
|
1 |
HOUSING SWITCH |
|
|
XE |
![]() |
| 44 |
638634-00
|
1 |
BOOT |
|
|
XE |
![]() |
| 45 |
330019-13
|
5 |
SCREW |
M4X19 T20 |
|
XE |
![]() |
| 47 |
610822-00
|
1 |
MODULE |
|
|
XE |
![]() |
| 48 |
326057-00
|
1 |
TERMINAL BLOCK |
|
|
XE |
![]() |
| 49 |
N380405
|
2 |
INSERT |
|
|
XE |
![]() |
| 50 |
330013-22
|
5 |
SCREW |
|
|
XE |
![]() |
| 57 |
N377629
|
1 |
SWITCH COVER |
|
|
XE |
![]() |
| 58 |
607854-00
|
1 |
PIN |
|
|
XE |
![]() |
| 59 |
613782-01
|
1 |
SPRING TORSION |
|
|
XE |
![]() |
| 60 |
607855-00
|
1 |
HANDLE SA |
|
|
XE |
![]() |
| 61 |
399125-00
|
1 |
COVER |
|
|
XE |
![]() |
| 63 |
384127-01
|
4 |
SCREW |
|
|
XE |
![]() |
| 65 |
860091-04
|
4 |
SCREW |
|
|
XE |
![]() |
| 66 |
860094-03
|
2 |
SCREW |
|
|
XE |
![]() |
| 67 |
330045-15
|
7 |
SCREW |
|
|
XE |
![]() |
| 68 |
330045-23
|
7 |
SCREW |
|
|
XE |
![]() |
| 69 |
606014-00
|
1 |
SPRING |
|
|
XE |
![]() |
| 70 |
394034-00
|
1 |
SCREW |
|
|
XE |
![]() |
| 71 |
330045-32
|
5 |
SCREW |
|
|
XE |
![]() |
| 72 |
621647-00
|
3 |
PLATE |
|
|
XE |
![]() |
| 73 |
N162216
|
1 |
FENCE |
|
|
XE |
![]() |
| 74 |
869233-00
|
1 |
TABLE |
|
|
XE |
![]() |
| 75 |
614822-00
|
1 |
SCALE |
|
|
XE |
![]() |
| 76 |
398999-00
|
1 |
DETENT |
|
|
XE |
![]() |
| 77 |
615876-00
|
4 |
SCREW |
Hex |
|
XE |
![]() |
| 78 |
607103-00
|
2 |
PLATE |
|
|
XE |
![]() |
| 79 |
98104-16
|
4 |
SCREW |
|
|
XE |
![]() |
| 80 |
N162168
|
1 |
NOSE |
|
|
XE |
![]() |
| 81 |
605799-00
|
1 |
ROD |
|
|
XE |
![]() |
| 82 |
399162-00
|
1 |
ACTUATOR |
|
|
XE |
![]() |
| 84 |
399009-00
|
1 |
PIN |
|
|
XE |
![]() |
| 85 |
860094-00
|
2 |
SCREW.TEMP |
|
|
XE |
![]() |
| 86 |
606898-00
|
1 |
DETENT |
SPRING |
|
XE |
![]() |
| 87 |
860092-02
|
3 |
NUT |
|
|
XE |
![]() |
| 88 |
606900-00
|
1 |
PLATE |
|
|
XE |
![]() |
| 89 |
606896-00
|
1 |
PAD |
|
|
XE |
![]() |
| 90 |
617561-00
|
7 |
SCREW |
M8, |
|
XE |
![]() |
| 91 |
606897-00
|
1 |
COVER |
|
|
XE |
![]() |
| 93 |
860205-01
|
4 |
SCREW |
|
|
XE |
![]() |
| 94 |
399004-00
|
1 |
KNOB |
|
|
XE |
![]() |
| 95 |
605785-00
|
1 |
BUTTON |
|
|
XE |
![]() |
| 96 |
611991-00
|
1 |
POINTER |
|
|
XE |
![]() |
| 98 |
606198-00
|
1 |
KNOB |
|
|
XE |
![]() |
| 99 |
N409486
|
4 |
SCREW |
|
|
XE |
![]() |
| 100 |
607129-00
|
3 |
PAD |
|
|
XE |
![]() |
| 101 |
N190890
|
1 |
BACK FENCE |
|
|
XE |
![]() |
| 102 |
610251-00
|
1 |
KNOB |
|
|
XE |
![]() |
| 103 |
610250-00
|
1 |
SPRING |
|
|
XE |
![]() |
| 104 |
N399933
|
5 |
SCREW |
M5x30 T30 Patch |
|
XE |
![]() |
| 105 |
610710-00
|
1 |
WARNING LABEL |
|
|
XE |
![]() |
| 106 |
941586-00
|
3 |
SPRING |
|
|
XE |
![]() |
| 107 |
153451-00
|
1 |
BEARING THRUST |
|
|
XE |
![]() |
| 109 |
153655-00
|
3 |
WASHER |
|
|
XE |
![]() |
| 110 |
153781-00
|
3 |
WASHER |
|
|
XE |
![]() |
| 111 |
153797-03
|
2 |
SCREW |
|
|
XE |
![]() |
| 112 |
330021-10
|
1 |
NUT |
M10 |
|
XE |
![]() |
| 113 |
391347-00
|
3 |
PAWL |
|
|
XE |
![]() |
| 115 |
869233-02
|
1 |
ROTARY TABLE |
inc 122,124 |
+ 122, 124 |
XE |
![]() |
| 116 |
399004-01
|
1 |
KNOB |
|
|
XE |
![]() |
| 117 |
605653-00
|
1 |
TRUNNION |
|
|
XE |
![]() |
| 118 |
606152-00
|
1 |
POINTER |
|
|
XE |
![]() |
| 119 |
618660-00
|
1 |
BEVEL SCALE |
|
|
XE |
![]() |
| 120 |
606192-00
|
1 |
POINTER |
|
|
XE |
![]() |
| 121 |
606193-00
|
1 |
BEVEL SCALE |
|
|
XE |
![]() |
| 122 |
606359-00
|
1 |
STUD |
|
|
XE |
![]() |
| 123 |
606362-00
|
1 |
SPACER |
|
|
XE |
![]() |
| 124 |
610707-00
|
2 |
WARNING LABEL |
|
|
XE |
![]() |
| 125 |
613709-00
|
1 |
LATCH |
|
|
XE |
![]() |
| 126 |
860094-06
|
6 |
SCREW |
|
|
XE |
![]() |
| 127 |
153576-03
|
1 |
SCREW |
|
|
XE |
![]() |
| 129 |
615589-00
|
1 |
ADJUSTER |
|
|
XE |
![]() |
| 131 |
615777-00
|
1 |
PIVOT SHAFT |
|
|
XE |
![]() |
| 132 |
148296-00
|
1 |
WASHER |
|
|
XE |
![]() |
| 133 |
146732-00
|
2 |
SPACER |
|
|
XE |
![]() |
| 134 |
619571-00
|
1 |
SPRING |
|
|
XE |
![]() |
| 135 |
146753-00
|
1 |
BUSHING |
|
|
XE |
![]() |
| 137 |
609837-00
|
1 |
ADJUSTER HEIGHT |
|
|
XE |
![]() |
| 138 |
606689-00
|
1 |
CRANK |
|
|
XE |
![]() |
| 139 |
607754-00
|
1 |
CARRIER |
|
|
XE |
![]() |
| 140 |
604107-00
|
14 |
BALL STEEL |
|
|
XE |
![]() |
| 141 |
609840-00
|
1 |
CLAMP |
|
|
XE |
![]() |
| 143 |
610254-00
|
1 |
BOLT |
|
|
XE |
![]() |
| 144 |
614072-00
|
2 |
PIN |
|
|
XE |
![]() |
| 145 |
606688-00
|
1 |
SPRING |
|
|
XE |
![]() |
| 146 |
N166053
|
1 |
DUST PORT |
|
|
XE |
![]() |
| 148 |
615459-00
|
1 |
PLATE |
|
|
XE |
![]() |
| 149 |
N041976
|
1 |
BACKPLATE |
|
|
XE |
![]() |
| 150 |
609514-00
|
1 |
BUMPER |
|
|
XE |
![]() |
| 151 |
146750-03
|
1 |
RETAINING PLATE |
|
|
XE |
![]() |
| 152 |
609314-00
|
1 |
SLEEVE |
|
|
XE |
![]() |
| 153 |
609496-00
|
1 |
SPRING TORSION |
|
|
XE |
![]() |
| 155 |
N298999
|
1 |
GUARD |
|
|
XE |
![]() |
| 156 |
146774-00
|
2 |
ROLLER |
|
|
XE |
![]() |
| 157 |
604728-00
|
2 |
LOCKING RING |
|
|
XE |
![]() |
| 159 |
394589-01
|
2 |
SCREW |
|
|
XE |
![]() |
| 160 |
N225776
|
1 |
LEVER SA |
|
|
XE |
![]() |
| 161 |
146740-02
|
3 |
SLEEVE |
|
|
XE |
![]() |
| 162 |
605590-00
|
1 |
SCREW |
|
|
XE |
![]() |
| 163 |
610556-01
|
1 |
BELT COVER |
|
|
XE |
![]() |
| 165 |
145344-01
|
1 |
BLADE BOLT |
M8 X 20 LH |
|
XE |
![]() |
| 166 |
616319-00
|
1 |
WASHER INNER CLAMP |
|
|
XE |
![]() |
| 167 |
604765-00
|
1 |
CLAMP OUTER |
|
|
XE |
![]() |
| 168 |
150075-00
|
2 |
SCREW |
|
|
XE |
![]() |
| 169 |
605593-00
|
1 |
GUARD |
|
|
XE |
![]() |
| 170 |
607536-00
|
1 |
WASHER |
|
|
XE |
![]() |
| 171 |
655037-00
|
1 |
FRAME RH |
|
>392007 |
XE |
![]() |
| 171 |
656421-00
|
1 |
FSO KIT |
Inc 171, 196 |
|
XE |
![]() |
| 173 |
391358-01
|
1 |
HOLDER |
|
|
XE |
![]() |
| 174 |
385567-03
|
1 |
KEY |
TX30 6.0mm |
|
XE |
![]() |
| 175 |
608563-01
|
1 |
WRENCH SPECIAL |
M13 - T30 |
|
XE |
![]() |
| 176 |
615993-00
|
2 |
RETAINER |
|
|
XE |
![]() |
| 177 |
946866-00
|
2 |
SPRING |
|
|
XE |
![]() |
| 180 |
609497-00
|
1 |
SHIM |
|
|
XE |
![]() |
| 181 |
607181-00
|
4 |
SCREW |
M8 |
|
XE |
![]() |
| 182 |
616634-00
|
4 |
BUMPER |
|
|
XE |
![]() |
| 183 |
860083-15
|
4 |
NUT |
|
|
XE |
![]() |
| 185 |
606233-00
|
1 |
LOCK |
|
|
XE |
![]() |
| 186 |
606232-00
|
1 |
LOCK |
|
|
XE |
![]() |
| 187 |
605601-01
|
1 |
CORD CLAMP |
|
|
XE |
![]() |
| 188 |
607132-00
|
1 |
PIN |
|
|
XE |
![]() |
| 189 |
330045-55
|
2 |
SCREW |
|
|
XE |
![]() |
| 190 |
153379-00
|
4 |
BEARING BLOCK |
|
|
XE |
![]() |
| 191 |
610574-00
|
1 |
SCREW |
M5X25 |
|
XE |
![]() |
| 192 |
611094-00
|
1 |
ROD |
|
|
XE |
![]() |
| 193 |
861090-00
|
1 |
SCREW |
|
|
XE |
![]() |
| 194 |
860073-14
|
3 |
WASHER |
|
|
XE |
![]() |
| 195 |
613233-00
|
2 |
FRONT LEG |
|
|
XE |
![]() |
| 196 |
655033-00
|
2 |
REAR LEG |
|
|
XE |
![]() |
| 196 |
655033-00
|
2 |
REAR LEG |
|
>392007 |
XE |
![]() |
| 197 |
861073-00
|
4 |
FOOT |
|
|
XE |
![]() |
| 198 |
N013623
|
4 |
CLAMP |
|
|
XE |
![]() |
| 199 |
618362-00
|
4 |
KNOB |
|
|
XE |
![]() |
| 200 |
98131-90
|
4 |
CARRIAGE BOLT |
M10*1.5 |
|
XE |
![]() |
| 201 |
861091-00
|
3 |
CABLE CLAMP |
|
|
XE |
![]() |
| 202 |
860112-11
|
1 |
SPRING |
|
|
XE |
![]() |
| 204 |
655032-00
|
1 |
FRAME LH |
|
>392007 |
XE |
![]() |
| 204 |
656421-01
|
1 |
FSO KIT |
Inc 204, 196 |
|
XE |
![]() |
| 205 |
615994-00
|
1 |
CLIP |
|
|
XE |
![]() |
| 206 |
860610-01
|
1 |
PUSHROD |
|
|
XE |
![]() |
| 207 |
616592-00
|
2 |
BOLT |
M8 x 16 |
|
XE |
![]() |
| 208 |
604537-00
|
2 |
TUBE |
|
|
XE |
![]() |
| 209 |
942447-00
|
2 |
SCREW |
|
|
XE |
![]() |
| 210 |
611623-00
|
2 |
AXLE STUB |
M12 |
|
XE |
![]() |
| 211 |
98197-08
|
4 |
WASHER |
|
|
XE |
![]() |
| 212 |
330045-50
|
3 |
SCREW |
|
|
XE |
![]() |
| 213 |
605789-00
|
1 |
FENCE |
|
|
XE |
![]() |
| 214 |
386616-00
|
1 |
FENCE |
|
|
XE |
![]() |
| 215 |
147107-00
|
2 |
KNOB |
|
|
XE |
![]() |
| 216 |
611712-00
|
1 |
PLATE |
|
|
XE |
![]() |
| 217 |
611921-00
|
1 |
BRACKET |
|
|
XE |
![]() |
| 218 |
605794-00
|
1 |
LEVER LOCK |
|
|
XE |
![]() |
| 219 |
605796-00
|
1 |
BRACKET |
|
|
XE |
![]() |
| 220 |
605795-00
|
1 |
CLEVIS PIN |
|
|
XE |
![]() |
| 221 |
392948-00
|
1 |
WASHER CLAMP |
|
|
XE |
![]() |
| 222 |
605798-00
|
1 |
POINTER |
|
|
XE |
![]() |
| 223 |
330045-05
|
1 |
SCREW |
|
|
XE |
![]() |
| 224 |
612284-00
|
2 |
NUT |
M8 |
|
XE |
![]() |
| 225 |
605790-00
|
2 |
WASHER |
|
|
XE |
![]() |
| 227 |
N060425
|
1 |
GUARD |
inc 3x271 |
|
XE |
![]() |
| 228 |
612441-00
|
2 |
WHEEL |
150MM |
|
XE |
![]() |
| 229 |
941602-00
|
2 |
WASHER |
|
|
XE |
![]() |
| 230 |
N219072
|
4 |
FOOT |
|
|
XE |
![]() |
| 231 |
860083-14
|
4 |
NUT |
|
|
XE |
![]() |
| 232 |
860073-03
|
4 |
WASHER M8 |
|
|
XE |
![]() |
| 233 |
860085-20
|
4 |
SCREW |
|
|
XE |
![]() |
| 234 |
621653-00
|
1 |
SHOE |
|
|
XE |
![]() |
| 235 |
610252-00
|
1 |
CLAMP |
|
|
XE |
![]() |
| 236 |
330045-14
|
4 |
SCREW |
|
|
XE |
![]() |
| 237 |
623499-00
|
1 |
WASHER |
|
|
XE |
![]() |
| 238 |
860075-00
|
1 |
WASHER |
|
|
XE |
![]() |
| 239 |
617108-00
|
1 |
IDENTITY LABEL |
|
|
XE |
![]() |
| 240 |
607182-00
|
2 |
BUSHING |
|
|
XE |
![]() |
| 241 |
860078-02
|
4 |
WASHER |
|
|
XE |
![]() |
| 243 |
620327-00
|
1 |
SPRING CLIP |
|
|
XE |
![]() |
| 244 |
624373-00
|
1 |
IDENTITY LABEL |
|
|
XE |
![]() |
| 245 |
931997-00
|
1 |
SCREW |
|
|
XE |
![]() |
| 246 |
720959-00
|
1 |
WASHER |
|
|
XE |
![]() |
| 248 |
720929-00
|
1 |
WING NUT |
|
|
XE |
![]() |
| 248 |
720929-00
|
1 |
WING NUT |
|
|
XE |
![]() |
| 249 |
860092-05
|
3 |
NUT |
|
|
XE |
![]() |
| 251 |
330021-08
|
1 |
NUT |
|
|
XE |
![]() |
| 270 |
626334-00
|
1 |
SPACER |
|
|
XE |
![]() |
| 271 |
868303-00
|
3 |
FASTENER |
|
|
XE |
![]() |
| 272 |
626191-00
|
1 |
LABEL |
|
|
XE |
![]() |
| 273 |
330019-13
|
4 |
SCREW |
M4X19 T20 |
|
XE |
![]() |
| 274 |
627449-01
|
1 |
CABLE SA
|
|
|
XE |
![]() |
| 275 |
611713-01
|
1 |
FENCE |
|
|
XE |
![]() |
| 276 |
949701-05
|
4 |
SCREW |
M8 x 20 |
|
XE |
![]() |
| 277 |
860083-15
|
4 |
NUT |
|
|
XE |
![]() |
| 302 |
635797-00
|
1 |
LASER HEAD SA |
|
D27105V |
XE |
![]() |
| 303 |
627631-00
|
1 |
SA POWER SUPPLY |
|
D27105V |
XE |
![]() |
| 304 |
615498-00
|
1 |
WINDOW |
|
D27105V |
XE |
![]() |
| 305 |
635797-00
|
1 |
LASER HEAD SA |
|
D27105V |
XE |
![]() |
| 306 |
860094-03
|
4 |
SCREW |
|
D27105V |
XE |
![]() |
| 800 |
5140061-28
|
1 |
GREASE |
|
|
XE |
![]() |
Parts List
Save PDF
View Full Page
