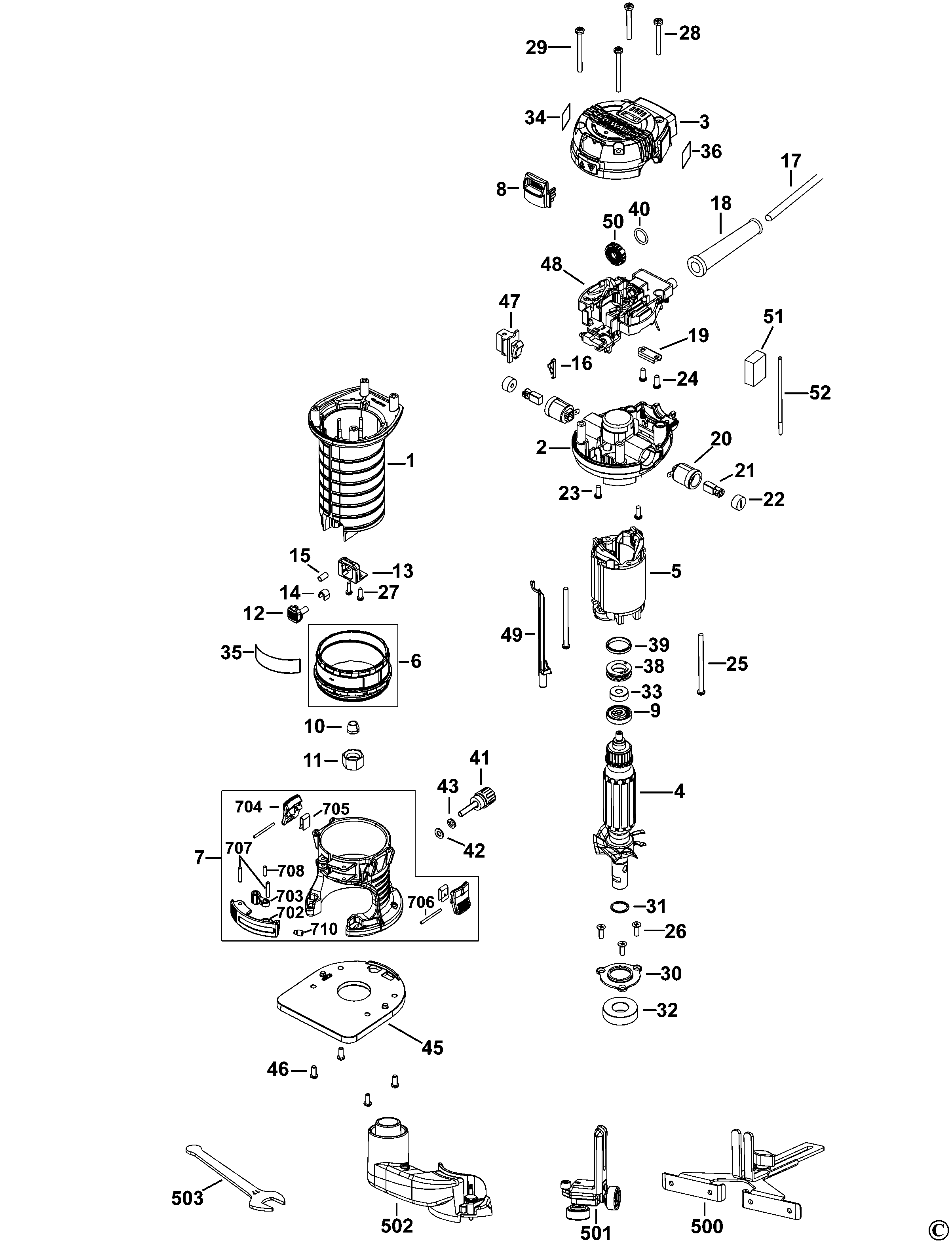

DWE6005 LAMINATE TRIMMER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	N381511	1	HOUSING MOTOR		XE
2	N381512	1	HOUSING UPPER		XE
3	N381888	1	HOUSING TOP		XE
4	N381862	1	ARMATURE 220/240V		XE
5	N381863	1	FIELD 220/240V		XE
6	N381737	1	ADJUSTER DEPTH		XE
7	N381528	1	BASE SA		XE
8	N381702	1	BUTTON		XE
9	N381769	1	HOLDER SA		XE
10	N381502	1	COLLET 6.35MM		XE
11	N381503	1	COLLET NUT		XE
12	N381504	1	SPINDLE LOCK		XE
13	N381505	1	INSERT		XE
14	N381506	1	PLATE		XE
15	N381513	1	SPRING		XE
16	N381514	1	SPRING		XE
18	N381742	1	CORD PROTECTOR		XE
19	N381706	1	CORD CLAMP		XE
20	N381707	2	BRUSH HOLDER		XE
21	N381855	1	BRUSH PAIR 230V		XE
22	N381709	2	BRUSH CAP		XE
23	860094-03	2	SCREW		XE
24	860094-05	2	SCREW		XE
25	N381713	2	SCREW		XE
26	N381714	3	SCREW		XE
27	330019-41	2	SCREW		XE
28	N381716	2	SCREW		XE
29	330019-50	2	SCREW	M4.55x50 PLASTIC THD FMG	XE
30	N381718	1	BEARING PLATE		XE
31	N381719	1	RETAINER		XE
32	605040-25	1	BEARING,BALL		XE
33	605040-65	1	BEARING		XE
34	N276088	1	WARNING LABEL		XE
35	N278600	2	BRAND LABEL		XE
36	N276083	1	RATING PLATE		XE
38	N381723	1	BEARING HOLDER		XE
39	N381724	1	WASHER		XE
40	N381755	1	O RING		XE
41	N381725	1	KNOB		XE
42	N381726	1	WASHER M5		XE
43	N381727	1	WASHER SPRING		XE
45	N381728	1	BASE PLATE		XE
46	949894-06	4	SCREW		XE
47	N381730	1	SWITCH		XE
48	N381865	1	ELECTRONIC 230V		XE
49	N381732	1	LED LIGHT		XE
50	N276101	1	WHEEL SPEED		XE
51	N381767	1	CONDENSOR		XE
52	N381768	1	LEAD EARTH		XE
500	N361320	1	GUIDE SA		XE
501	N361319	1	WHEEL GUIDE		XE
502	N361322	1	DUST PORT		XE
503	N361321	1	SPANNER		XE
702	N381520	1	LEVER LOCK		XE
703	N381521	1	LINK		XE
704	N381522	2	BUTTON RELEASE		XE
705	N381523	2	SPRING		XE
706	N381524	2	PIN		XE
707	N381525	2	PIN		XE
708	N381526	1	PIN		XE
710	N381527	1	SCREW		XE
