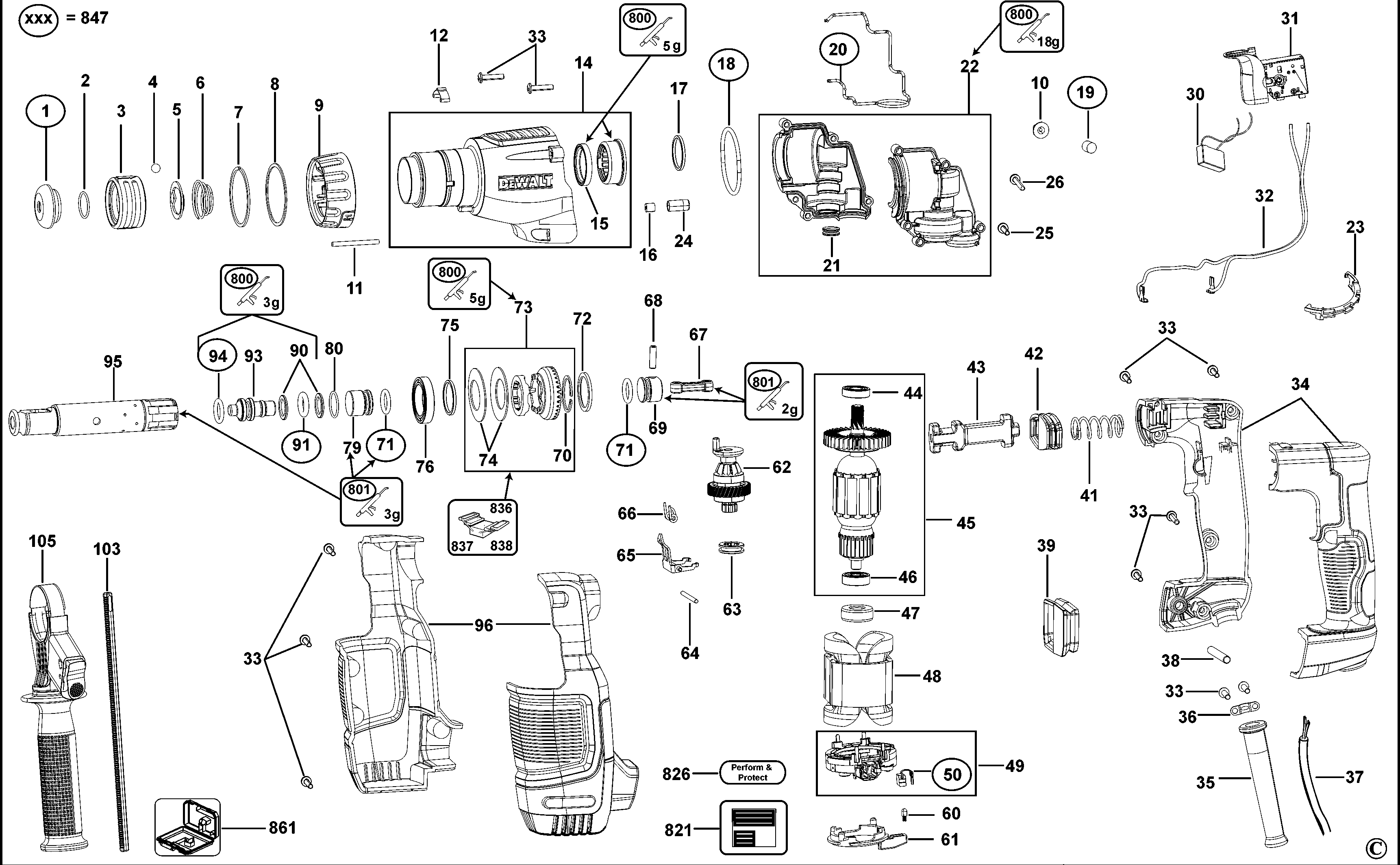

D25052K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323489-00 | 1 | CAP | XE | |||
| 2 | 579212-00 | 1 | RING | XE | |||
| 3 | N720573 | 1 | TUBE | XE | |||
| 4 | 583890-00 | 1 | BALL | XE | |||
| 5 | 578387-00 | 1 | WASHER | XE | |||
| 6 | 871690 | 1 | SPRING | XE | |||
| 7 | N163521 | 1 | RING | XE | |||
| 8 | N163522 | 1 | WASHER | XE | |||
| 9 | N163529 | 1 | SELECTOR SA | XE | |||
| 10 | N374339 | 1 | INSERT | XE | |||
| 11 | N132310 | 1 | PIN | XE | |||
| 12 | 395460-00 | 1 | SPRING GUIDE | XE | |||
| 14 | N364905 | 1 | HOUSING SA | XE | |||
| 15 | N132542 | 1 | SEAL | XE | |||
| 16 | N351959 | 1 | FELT | XE | |||
| 17 | N271799 | 1 | WASHER | XE | |||
| 18 | N170498 | 1 | O RING | XE | |||
| 19 | N038257 | 1 | FELT | XE | |||
| 20 | N164701 | 1 | SEAL | XE | |||
| 21 | N169939 | 1 | CAP | XE | |||
| 22 | N364906 | 1 | HOUSING GEAR SA | XE | |||
| 23 | N231636 | 1 | SUPPORT | XE | |||
| 24 | N351960 | 1 | HOLDER | XE | |||
| 25 | 324006-15 | 5 | SCREW | XE | |||
| 26 | 324006-02 | 1 | SCREW | XE | |||
| 30 | N272900 | 1 | CAPACITOR | XE | |||
| 31 | N364920 | 1 | SWITCH 240V | XE | |||
| 32 | N364922 | 1 | SET OF LEAD WIRES | XE | |||
| 33 | 330065-08 | 18 | SCREW | M4x18 T20 | XE | ||
| 34 | N364910 | 1 | HANDLE SA | XE | |||
| 35 | 584090-00 | 1 | CORD PROTECTOR | XE | |||
| 36 | 821070 | 1 | CORD CLAMP | XE | |||
| 38 | N159443 | 1 | AXIS | XE | |||
| 39 | N106222 | 1 | BELLOWS | XE | |||
| 41 | N106188 | 1 | SPRING COMPRESSION | XE | |||
| 42 | N106221-01 | 1 | BELLOWS | XE | |||
| 43 | N152623 | 1 | STOP | XE | |||
| 44 | N376455 | 1 | BEARING,BALL | XE | |||
| 45 | N364911 | 1 | ARMATURE 230V | Inc 44,46 | XE | ||
| 46 | 605040-02 | 1 | BEARING | XE | |||
| 47 | 870052 | 1 | SLEEVE | XE | |||
| 48 | N364913 | 1 | FIELD 230V | XE | |||
| 49 | N364915 | 1 | BRUSH PLATE SA | Inc 50 | XE | ||
| 50 | N544178 | 1 | BRUSH KIT | XE | |||
| 60 | 326467-00 | 1 | DETENT | XE | |||
| 61 | N180503 | 1 | LEVER | F/R | XE | ||
| 62 | N364907 | 1 | INTERSHAFT SA | XE | |||
| 63 | N184006 | 1 | COLLAR | XE | |||
| 64 | N203772 | 1 | PIN | 36x4 | XE | ||
| 65 | N184007 | 1 | SELECTOR FORK | XE | |||
| 66 | N187775 | 1 | SPRING TORSION | XE | |||
| 67 | N383652 | 1 | CONNECTING ROD | XE | |||
| 68 | 330041-16 | 1 | PIN | XE | |||
| 69 | N364903 | 1 | PISTON | XE | |||
| 70 | N128151 | 1 | RING | XE | |||
| 71 | N133196 | 1 | O RING | 14x3 | XE | ||
| 72 | N183783 | 1 | WASHER SPECIAL | XE | |||
| 73 | N364904 | 1 | CLUTCH KIT | Inc 74,70 | XE | ||
| 74 | N133027 | 2 | SPRING | Disc | XE | ||
| 75 | N133329 | 1 | SPACER | XE | |||
| 76 | N074826 | 1 | BEARING,BALL | XE | |||
| 79 | N364902 | 1 | RAM | XE | |||
| 80 | N132785 | 1 | RING | XE | |||
| 90 | N132783 | 2 | WASHER | 20 | XE | ||
| 91 | N132784 | 1 | O RING | XE | |||
| 93 | N364901 | 1 | BEAT PIECE | XE | |||
| 94 | N122319 | 1 | O RING | 11x3.5 | XE | ||
| 95 | N364900 | 1 | SPINDLE | XE | |||
| 96 | N364908 | 1 | HOUSING PAIR | XE | |||
| 103 | 798846-02 | 1 | DEPTH STOP | XE | |||
| 105 | 1005896-00 | 1 | SIDE HANDLE | K | XE | ||
| 800 | 870889-03 | 2 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | XE | ||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | XE | ||
| 826 | N304340 | 1 | LABEL | XE | |||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | XE | |||
| 837 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | XE | |||
| 838 | 1003956-99 | 1 | SERVICE TOOL | Fitting 'C' Clip | XE | ||
| 847 | N365563 | 1 | SERVICE KIT 230V | XE | |||
| 861 | N298959 | 1 | KITBOX | XE |
