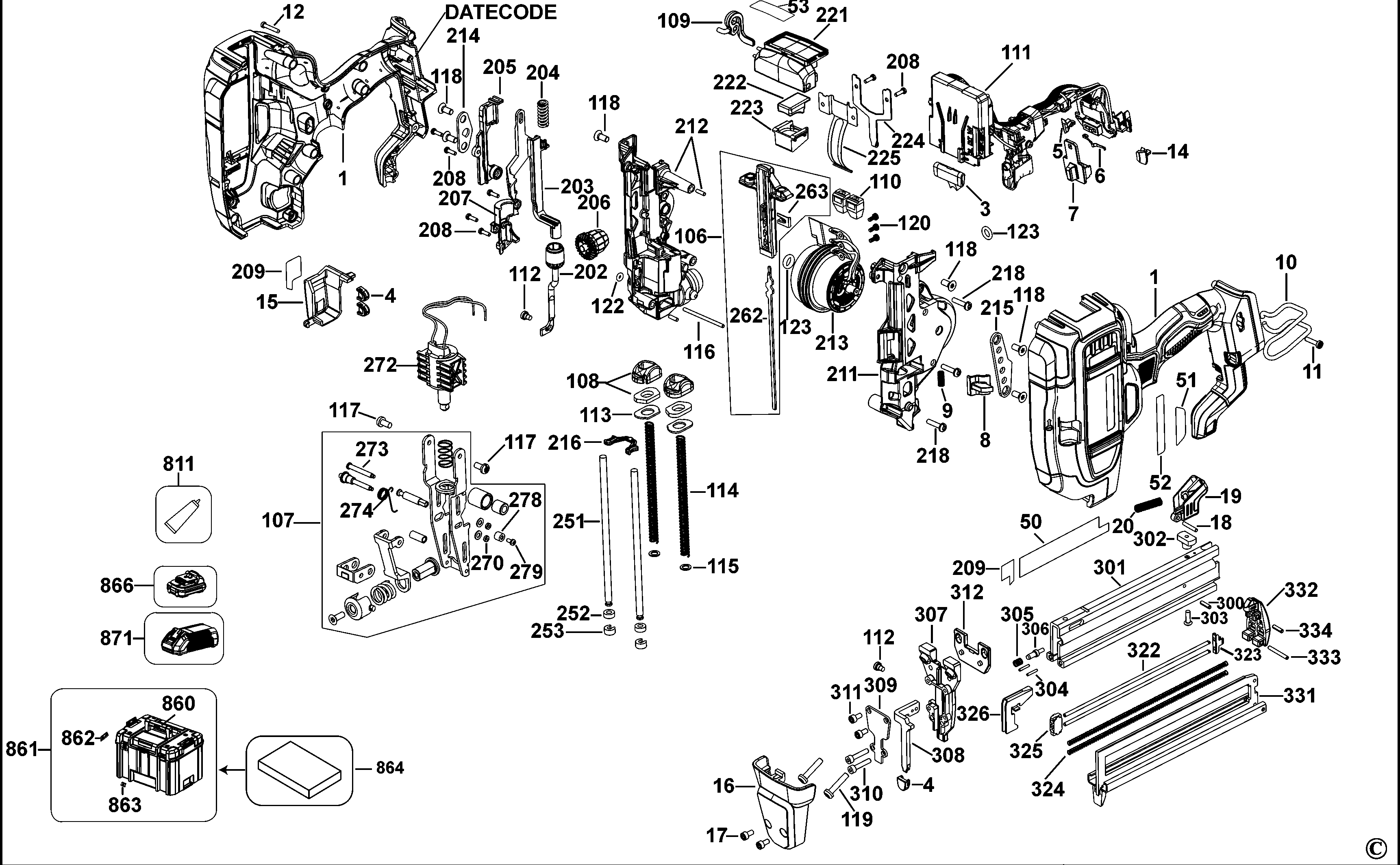

DCN681 BRAD NAILER 18 GAUGE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N534481 | 1 | CLAMSHELL SET | Narrow Crown Stapler | XE | ||
| 3 | N468738 | 1 | BUTTON LOCK-OFF | XE | |||
| 4 | N569446 | 3 | NO MAR TIP | PZL | XE | ||
| 5 | N471571 | 1 | LENS | RIGHT | XE | ||
| 6 | N388602 | 2 | LEAF SPRING | XE | |||
| 7 | N466948 | 1 | SELECTOR | 18 Gauge | XE | ||
| 8 | N505465 | 1 | BUTTON RELEASE | STALL RELEASE | XE | ||
| 9 | N411486 | 1 | SPRING COMPRESSION | XE | |||
| 10 | N410943 | 1 | HOOK | XE | |||
| 11 | 330019-52 | 1 | SCREW | XE | |||
| 12 | 330019-24 | 12 | SCREW | XE | |||
| 14 | N468840 | 1 | LENS | LEFT | XE | ||
| 15 | N468119 | 1 | SHROUD | XE | |||
| 16 | N487228 | 1 | COVER | XE | |||
| 17 | 174080 | 2 | SCREW | M4x0.7x8 | XE | ||
| 18 | N474517 | 1 | PIN | R3 x 17.5mm | XE | ||
| 19 | N465295 | 1 | LATCH | XE | |||
| 20 | 180528 | 1 | SPRING | XE | |||
| 50 | N502010 | 1 | RATING PLATE | DCN681 TYPE 1 | XE | ||
| 51 | N496807 | 1 | LABEL | "FLYWHEEL" 18 Ga. | XE | ||
| 52 | N502011 | 1 | LABEL | 18V XR Brushless | XE | ||
| 53 | N515515 | 1 | LABEL | REAR 18 Ga. | XE | ||
| 106 | N532144 | 1 | DRIVER SA | Narrow Staplers | XE | ||
| 107 | N568371 | 1 | CARRIAGE SA | w/o Solenoid | XE | ||
| 108 | N446577 | 2 | SERVICE KIT | XE | |||
| 109 | N532613 | 1 | ACTUATOR | XE | |||
| 110 | 650974-00 | 2 | CONNECTOR | XE | |||
| 111 | N532130 | 1 | ELECTRONIC & SWITCH | XE | |||
| 112 | N499064 | 1 | SCREW | M4 x 0.7P x 6mm T20 | XE | ||
| 113 | N376891 | 2 | PLATE | XE | |||
| 114 | N446578 | 1 | SPRING | x2 | XE | ||
| 115 | N383361 | 2 | WASHER | XE | |||
| 116 | N410969 | 1 | PIN | 3x50.5 | XE | ||
| 117 | N491757 | 2 | SCREW | M4 x 10mm T20 Pan Hd | XE | ||
| 118 | N386788 | 10 | SCREW | M5x12, MAGFORM | XE | ||
| 119 | N383360 | 2 | SCREW | M5x24 PAN HD MAGFORM | XE | ||
| 120 | N403241 | 3 | SCREW | M3x0.5x8 MACHINE | XE | ||
| 122 | N439188 | 1 | O RING | 2.0mm | XE | ||
| 123 | N407991 | 1 | O RING | ID 7.59mm, Dia. 2.62 | XE | ||
| 202 | N561939 | 1 | TRIP SA | intermediate | XE | ||
| 203 | N587377 | 1 | TRIP SA | XE | |||
| 204 | 644507-00 | 1 | SPRING | XE | |||
| 205 | N378116 | 1 | COVER | XE | |||
| 206 | N367663 | 1 | ADJUSTER DEPTH | XE | |||
| 207 | N367666 | 1 | COVER | XE | |||
| 208 | N379045 | 7 | SCREW | M3x10 PAN HD MAGFORM | XE | ||
| 209 | N496809 | 1 | LABEL | XE | |||
| 211 | N377231 | 1 | FRAME LH | XE | |||
| 212 | N496177 | 1 | FRAME RH | XE | |||
| 213 | N590301 | 1 | MOTOR SA | XE | |||
| 214 | N378063 | 1 | LOCATOR | MOTOR, RIGHT FRAME | XE | ||
| 215 | N377923 | 1 | LOCATOR | MOTOR, LEFT FRAME | XE | ||
| 216 | N376266 | 1 | RETAINER | XE | |||
| 218 | 613619-00 | 3 | SCREW | XE | |||
| 221 | N378032 | 1 | SUPPORT | REAR BUMPER | XE | ||
| 222 | N515311 | 1 | BUMPER | BACK DOUBLE ENDED | XE | ||
| 223 | N515810 | 1 | RETAINER | BACK BUMPER | XE | ||
| 224 | N367683 | 1 | PLATE | SKID | XE | ||
| 225 | N455371 | 1 | LIFTER | Profile | XE | ||
| 251 | N439725 | 2 | RAIL | XE | |||
| 252 | N378014 | 2 | BUMPER | XE | |||
| 253 | N402150 | 2 | CLIP | XE | |||
| 262 | N561254 | 1 | DRIVER | XE | |||
| 263 | 392206-00 | 1 | CLIP | XE | |||
| 270 | 391814-00 | 2 | GROMMET | XE | |||
| 272 | N446579 | 1 | SOLENOID ASSEMBLY | XE | |||
| 273 | 633207-00 | 1 | PIN | XE | |||
| 274 | N377077 | 1 | SPRING TORSION | XE | |||
| 278 | N377076 | 1 | SLEEVE | XE | |||
| 279 | N491759 | 1 | SCREW | M3 x 0.5P x 6mm T10 | XE | ||
| 300 | MPG030012 | 1 | PIN | M4x12 | XE | ||
| 301 | N465293 | 1 | MAGAZINE | FIXED | XE | ||
| 302 | N474281 | 1 | CONNECTOR | XE | |||
| 303 | 9R189734 | 1 | SCREW | XE | |||
| 304 | 180490 | 2 | PIN | XE | |||
| 305 | 180521 | 1 | SPRING | XE | |||
| 306 | N464383 | 1 | PLUNGER | XE | |||
| 307 | N468114 | 1 | NOSE | XE | |||
| 308 | N465291 | 1 | CONTACT | XE | |||
| 309 | N468118 | 1 | STRAP | XE | |||
| 310 | 182237 | 2 | SCREW | XE | |||
| 311 | 167168 | 2 | SCREW | SCHS M4 x 0.7 x 8mm | XE | ||
| 312 | N468113 | 1 | BACKPLATE | XE | |||
| 322 | 180526 | 2 | ROD | XE | |||
| 323 | 180200 | 1 | SUPPORT | XE | |||
| 324 | 180527 | 2 | SPRING | XE | |||
| 325 | 180199 | 1 | GUIDE | XE | |||
| 326 | N465300 | 1 | PUSHER | XE | |||
| 331 | N466964 | 1 | MAGAZINE | XE | |||
| 332 | 180201 | 1 | END CAP | XE | |||
| 333 | 180567 | 1 | PIN | XE | |||
| 334 | MPG030012 | 1 | PIN | M4x12 | XE | ||
| 811 | 851325 | 1 | LOCTITE 271 | XE | |||
| 860 | H1400196008 | 1 | HANDLE | XE | |||
| 861 | N445186 | 1 | KITBOX | XE | |||
| 862 | H1500082520 | 2 | LATCH | XE | |||
| 863 | P910190 | 2 | LATCH | XE | |||
| 864 | N433995 | 1 | INSERT | TSTAK-VI | XE | ||
| 866 | N342082 | 1 | BATTERY 18V - 2.0AH - 36WH | DBC183-XE | DCN681-D2 | XE | |
| 871 | N450538 | 1 | CHARGER 10.8V - 18V | XE |
