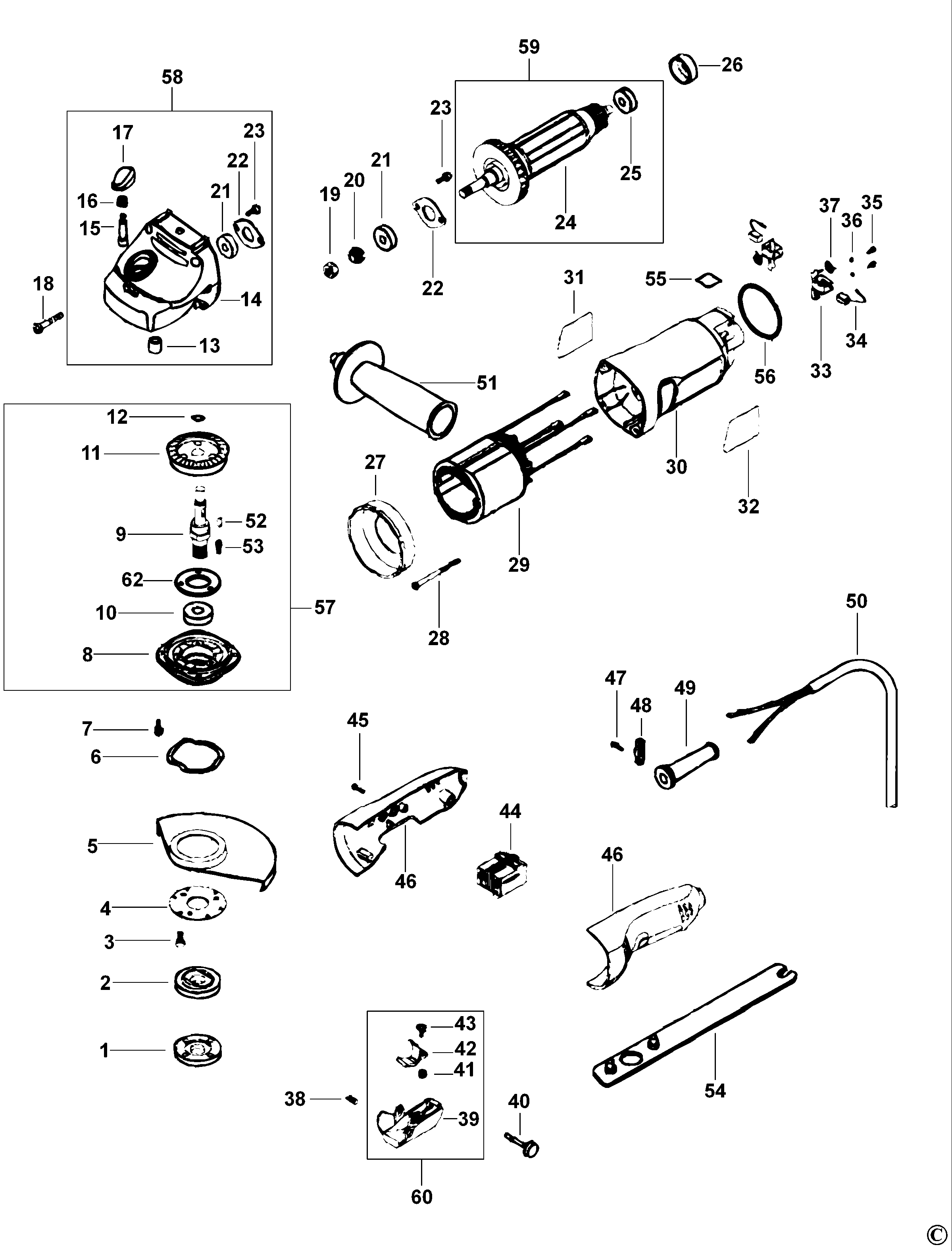

FS7500AG SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 23 | 596408-00 | 2 | SCREW | XE | |||
| 28 | 596413-00 | 2 | SCREW | FIELD RETENTION | XE | ||
| 36 | 596421-00 | 4 | WASHER | BRUSHBOX | XE | ||
| 47 | 596431-00 | 2 | SCREW | CORDCLAMP | XE | ||
| 57 | 596538-00 | 1 | SPINDLE SA | OUTPUT | XE | ||
| 101 | 596540-00 | 1 | ARMATURE SA | WITH BEARING | INCL. 111 | XE | |
| 102 | 596414-00 | 1 | FIELD SA | XE | |||
| 103 | 596429-00 | 1 | SWITCH | 2 POLE | XE | ||
| 104 | 596419-00 | 2 | BRUSH | XE | |||
| 105 | 596535-00 | 1 | CORDSET | XE | |||
| 110 | 596411-00 | 1 | BOOT | BOOT | XE | ||
| 111 | 330003-31 | 1 | BEARING | XE | |||
| 112 | 596407-00 | 1 | COVERPLATE | XE | |||
| 113 | 596406-00 | 1 | BEARING | FAN END | XE | ||
| 114 | 596405-00 | 1 | PINION GEAR | XE | |||
| 115 | 596404-00 | 1 | NUT | PINION | XE | ||
| 116 | 596539-00 | 1 | GEARCASE SA | WITH LOCK BUTTON | XE | ||
| 118 | 596403-00 | 5 | SCREW | GEARCASE-FIELDCASE | XE | ||
| 119 | 596412-00 | 1 | BAFFLE FAN | XE | |||
| 127 | 596391-00 | 1 | WASHER SPRING | XE | |||
| 128 | 596390-00 | 1 | GUARD | 5 INCH | XE | ||
| 129 | 596389-00 | 1 | FLANGE | GUARD | XE | ||
| 130 | 596388-00 | 3 | SCREW | XE | |||
| 131 | 596387-00 | 1 | INNER FLANGE | M14 | XE | ||
| 132 | 596386-00 | 1 | OUTER FLANGE | M14 | XE | ||
| 133 | 596437-00 | 1 | SIDE HANDLE | XE | |||
| 134 | 5140014-99 | 1 | TRIGGER | XE | |||
| 136 | 596418-00 | 2 | BRUSHBOX | XE | |||
| 139 | 596441-00 | 1 | CLAMSHELL SET | XE | |||
| 140 | 596425-00 | 1 | BUTTON LOCK-ON | XE | |||
| 141 | 596422-00 | 2 | SPRING BRUSH | XE | |||
| 142 | 596420-00 | 4 | SCREW | BRUSHBOX | XE | ||
| 145 | 596415-00 | 1 | FIELDCASE | XE | |||
| 146 | 596433-00 | 1 | CORD PROTECTOR | XE | |||
| 147 | 596392-00 | 4 | SCREW | GEARCASE COVER | XE | ||
| 151 | 596430-00 | 2 | SCREW | XE | |||
| 152 | 596432-00 | 1 | CORDCLAMP | XE | |||
| 156 | 596537-00 | 1 | O RING | SEAL | XE | ||
| 157 | 596423-00 | 1 | SPRING | XE | |||
| 163 | 5140024-45 | 2 | INSULATOR | XE | |||
| 816 | 596565-00 | 1 | BRAND LABEL | FS7500AG | XE | ||
| 821 | 596564-00 | 1 | RATING PLATE | FS7500AG - XE | XE | ||
| 826 | 5140019-98 | 1 | WARNING LABEL | XE | |||
| 900 | 596440-00 | 1 | WRENCH | XE |
