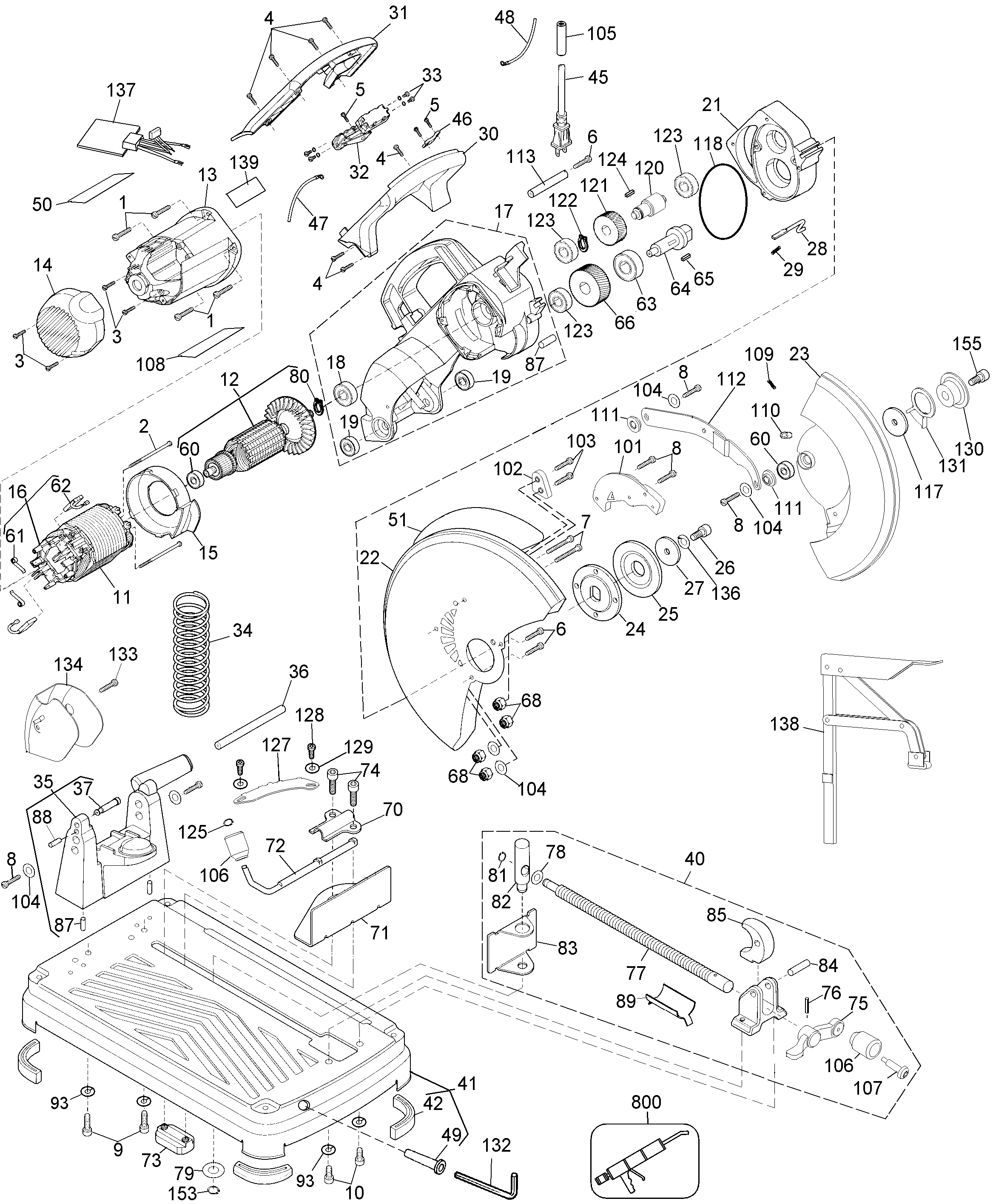

DW872 CHOP SAW - METAL CUTTING Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330045-16 | 4 | SCREW | XE | |||
| 2 | 330019-33 | 2 | SCREW | XE | |||
| 3 | 330019-13 | 4 | SCREW | M4X19 T20 | XE | ||
| 4 | 330019-14 | 7 | SCREW | XE | |||
| 5 | 330019-02 | 3 | SCREW | XE | |||
| 6 | 330045-50 | 4 | SCREW | XE | |||
| 7 | 330045-51 | 2 | SCREW | XE | |||
| 8 | 330045-49 | 7 | SCREW | XE | |||
| 9 | 098123-25 | 2 | SCREW | XE | |||
| 10 | 098123-16 | 2 | SCREW | XE | |||
| 11 | 624158-03 | 1 | FIELD SA 230V | XE | |||
| 12 | 383652-10S | 1 | ARMATURE | XE | |||
| 13 | 383151-00 | 1 | FIELDCASE SA | XE | |||
| 14 | 392284-00 | 1 | END CAP | XE | |||
| 15 | 383167-00 | 1 | BAFFLE FAN | XE | |||
| 16 | 383685-01SV | 1 | BRUSH RING ASM | XE | |||
| 17 | 386628-00SV | 1 | ARM/GEAR CASE | XE | |||
| 18 | 605040-27 | 1 | BEARING | XE | |||
| 19 | 330003-64 | 2 | BEARING | XE | |||
| 21 | 385286-01 | 1 | GEARCASE COVER | XE | |||
| 22 | 383164-02 | 1 | GUARD UPPER | XE | |||
| 23 | 388432-00 | 1 | GUARD LOWER | XE | |||
| 24 | 607173-00 | 1 | INNER FLANGE | XE | |||
| 25 | 395925-00 | 1 | OUTER FLANGE | XE | |||
| 26 | 383450-00 | 1 | SCREW | XE | |||
| 27 | 396972-00 | 1 | WASHER | XE | |||
| 28 | 387544-00 | 1 | LOCKING PIN | XE | |||
| 29 | 384716-00 | 1 | SPRING | XE | |||
| 30 | 621514-00S | 1 | SWITCH KIT | ASSEMBLY HALF | XE | ||
| 31 | 621514-00S | 1 | SWITCH KIT | COVER HALF | XE | ||
| 32 | 621514-00S | 1 | SWITCH KIT | XE | |||
| 33 | 387746-00 | 4 | SCREW | M3.5x0.6x7.5 W/LOCKW | XE | ||
| 34 | 387282-00 | 1 | SPRING | XE | |||
| 35 | 388431-00SV | 1 | PIVOT BRACKET | XE | |||
| 36 | 383118-00 | 1 | PIN | XE | |||
| 37 | 383148-00 | 1 | LOCKING PIN | XE | |||
| 40 | 395929-00S | 1 | VISE ASSEMBLY | XE | |||
| 41 | 391963-00 | 1 | BASE SA | XE | |||
| 42 | 383243-00 | 4 | FOOT | XE | |||
| 45 | 330122-14 | 1 | CORD & PLUG | XE | |||
| 46 | 386540-00 | 1 | CORD CLAMP | XE | |||
| 47 | 386465-00 | 1 | LEAD | XE | |||
| 48 | 386466-00 | 1 | LEAD | XE | |||
| 49 | 386765-00 | 1 | HOLDER TOOL | XE | |||
| 50 | 395853-05 | 1 | NP: DW872-XE T1 | XE | |||
| 51 | 397340-00 | 2 | BRAND LABEL | XE | |||
| 60 | 330003-17 | 2 | BEARING | XE | |||
| 61 | 384612-00 | 2 | SPRING | XE | |||
| 62 | 384613-01 | 2 | BRUSH 230V | XE | |||
| 63 | 146555-01 | 1 | BEARING | NPP | XE | ||
| 64 | 395842-00 | 1 | SPINDLE | M10 x 1.5 THREAD | XE | ||
| 65 | 382675-01 | 1 | WOODRUFF KEY | XE | |||
| 66 | 382680-00 | 1 | GEAR | XE | |||
| 68 | 148641-00 | 4 | LOCK NUT | XE | |||
| 70 | 391459-00 | 1 | PLATE LOCK | XE | |||
| 71 | 395930-01 | 1 | FENCE SA | XE | |||
| 72 | 395930-01 | 1 | FENCE SA | XE | |||
| 73 | 383254-00 | 1 | BLOCK | XE | |||
| 74 | 383450-00 | 2 | SCREW | XE | |||
| 75 | 389658-00 | 1 | Handle | XE | |||
| 76 | 330036-15 | 1 | ROLLPIN | XE | |||
| 77 | 429997-00 | 1 | THREADED ROD | KIT | XE | ||
| 78 | 384365-00 | 1 | WASHER | XE | |||
| 79 | 607592-00 | 1 | WASHER | XE | |||
| 80 | 144803-00 | 1 | CIRCLIP | XE | |||
| 81 | 383169-00 | 1 | CIRCLIP | XE | |||
| 82 | 5140000-11 | 1 | PIN | & RETAINING RING | INCL. 153 | XE | |
| 83 | 607278-00 | 1 | VICE JAW | XE | |||
| 84 | 386525-01 | 1 | DOWEL | XE | |||
| 85 | 383828-00 | 1 | LOCKING DEVICE | XE | |||
| 87 | 386525-00 | 5 | DOWEL | XE | |||
| 88 | 033055-00 | 1 | PLUG | XE | |||
| 89 | 383451-00 | 1 | SADDLE | XE | |||
| 93 | 098197-09 | 4 | WASHER | XE | |||
| 101 | 388046-00 | 1 | MOUNT | XE | |||
| 102 | 388041-00 | 1 | PLATEN | XE | |||
| 103 | 098013-16 | 2 | SCREW | XE | |||
| 104 | 388354-00 | 6 | WASHER | XE | |||
| 105 | 386491-00 | 1 | SLEEVE | XE | |||
| 106 | 390567-00 | 2 | KNOB | XE | |||
| 107 | 395240-00 | 1 | SCREW | XE | |||
| 108 | 389260-05 | 1 | RATING PLATE | XE | |||
| 108 | 397343-00 | 1 | LABEL | XE | |||
| 109 | 388056-00 | 1 | SPRING | XE | |||
| 110 | 388048-00 | 1 | STOP RUBBER | XE | |||
| 111 | 388049-00 | 2 | SLEEVE | XE | |||
| 112 | 388055-00 | 1 | LINK | XE | |||
| 113 | 388434-00 | 1 | SPACER | XE | |||
| 117 | 383154-00 | 1 | WASHER PLASTIC | XE | |||
| 118 | 391485-00 | 1 | O RING | XE | |||
| 120 | 382682-00 | 1 | PINION | XE | |||
| 121 | 386277-00 | 1 | GEAR | XE | |||
| 122 | 045012-00 | 1 | RETAINER | XE | |||
| 123 | 605040-20 | 3 | BEARING | 12 x 28 x 8mm | XE | ||
| 124 | 382675-00 | 1 | KEY | XE | |||
| 125 | 037653-00 | 1 | CLIP | XE | |||
| 127 | 395930-01 | 1 | FENCE SA | XE | |||
| 128 | 949894-06 | 2 | SCREW | XE | |||
| 129 | 330016-01 | 2 | WASHER | XE | |||
| 130 | 391039-00 | 1 | RETAINING PLATE | XE | |||
| 131 | 389894-00 | 1 | COVER | XE | |||
| 132 | 384717-00 | 1 | WRENCH | XE | |||
| 133 | 330045-23 | 1 | SCREW | XE | |||
| 134 | 390096-00 | 1 | DEFLECTOR | XE | |||
| 136 | 98197-07 | 1 | WASHER LOCK | XE | |||
| 137 | 393465-00 | 1 | MODULE | XE | |||
| 138 | 391526-00 | 1 | CLAMP | XE | |||
| 139 | 394188-00 | 1 | WARNING LABEL | XE | |||
| 153 | 398605-00 | 1 | RETAINER | FITS PIN W/MATTE FINISH ONLY | XE | ||
| 155 | 330045-15 | 1 | SCREW | XE | |||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | XE | ||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | 1 LB. JAR | XE |
