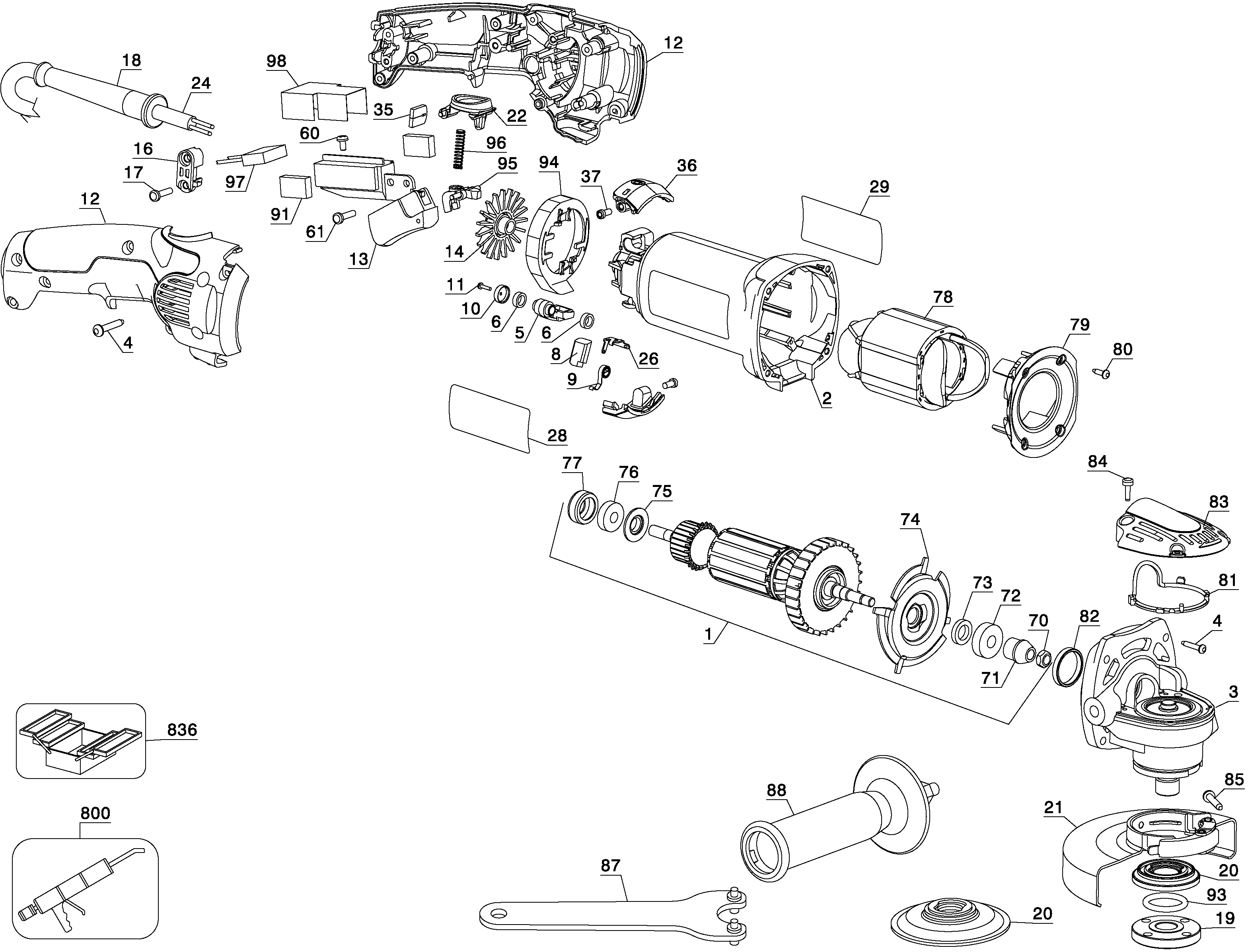

D28065 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N397978 | 1 | ARMATURE SA | 230V | XE | ||
| 2 | 632180-03 | 1 | FIELDCASE | XE | |||
| 3 | 629447-05S | 1 | GEARCASE SA | XE | |||
| 4 | 330065-31 | 11 | PLASTIC SCREW | XE | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | XE | ||
| 6 | 623592-00 | 4 | FELT SEAL | XE | |||
| 8 | 647709-03 | 2 | BRUSH 230V | POP-OFF | XE | ||
| 9 | 648613-00 | 2 | BRUSH SPRING | XE | |||
| 10 | 623591-00 | 2 | BRUSH CAP | XE | |||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | XE | ||
| 12 | N376084 | 1 | HANDLE ASSEMBLY | PKG'D 647727-03 | XE | ||
| 13 | 647715-01SV | 1 | SWITCH | NO LOCK-ON | XE | ||
| 14 | N055787 | 1 | SEPARATOR | Particle | XE | ||
| 16 | 643889-00 | 1 | CORD CLAMP | XE | |||
| 17 | 330019-03 | 1 | SCREW | XE | |||
| 18 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | XE | ||
| 20 | 640183-00 | 1 | INNER FLANGE | STAMPED STEEL | XE | ||
| 20 | 633257-00SV | 1 | INNER FLANGE SA | XE | |||
| 21 | 397661-02 | 1 | GUARD SA | 5 IN (125MM) | XE | ||
| 22 | 647229-00SV | 1 | LOCK BUTTON | XE | |||
| 24 | 562226-85 | 1 | CORDSET | XE | |||
| 26 | 623593-00 | 2 | TERMINAL | XE | |||
| 28 | 647691-05 | 1 | RATING PLATE | D28065-XE TY.1 | XE | ||
| 29 | 628885-00 | 1 | BRAND LABEL | XE | |||
| 35 | 646012-00 | 1 | FELT SEAL | XE | |||
| 36 | 646940-01 | 2 | BRUSH COVER | XE | |||
| 37 | 648777-00 | 2 | SCREW | M3, MACHINE | XE | ||
| 60 | 387746-00 | 4 | SCREW | M3.5x0.6x7.5 W/LOCKW | XE | ||
| 61 | 330065-07 | 1 | SCREW | XE | |||
| 70 | 604484-00 | 1 | NUT | XE | |||
| 71 | 629797-00 | 1 | PINION | 9 TOOTH | XE | ||
| 72 | 605040-05 | 1 | BEARING | XE | |||
| 73 | 623617-00 | 1 | FELT SEAL | XE | |||
| 74 | N422242 | 1 | RETAINER | XE | |||
| 75 | 623613-00 | 1 | WASHER | XE | |||
| 76 | 605040-02 | 1 | BEARING | XE | |||
| 77 | 641823-00 | 1 | SLEEVE | XE | |||
| 78 | 627125-05 | 1 | FIELD 230V | 230V | XE | ||
| 79 | 623572-00 | 1 | BAFFLE FAN | XE | |||
| 80 | 330065-25 | 4 | SCREW | XE | |||
| 81 | 632513-00 | 1 | GASKET | XE | |||
| 82 | 611492-00 | 1 | SLEEVE | XE | |||
| 83 | 627313-00 | 1 | GEARCASE COVER | XE | |||
| 84 | 385676-01 | 4 | SCREW | XE | |||
| 85 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XE | ||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | XE | ||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | XE | ||
| 91 | 620051-00 | 2 | PAD | XE | |||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | XE | ||
| 94 | 640723-00 | 1 | BAFFLE | XE | |||
| 95 | 647228-00SV | 1 | LOCK OFF | XE | |||
| 96 | 647227-00 | 1 | SPRING | XE | |||
| 97 | 646860-00 | 1 | CAPACITOR | XE | |||
| 98 | 650937-00 | 1 | INSULATOR | XE | |||
| 800 | 429954-00 | 1 | GREASE | NYE RHEOLUBE 380G1, 7LBS. / 3175 GRAMS | XE | ||
| 800 | 429954-01 | 1 | GREASE | NYE RHEOLUBE 380G1, 500grams JAR | XE | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | XE |
