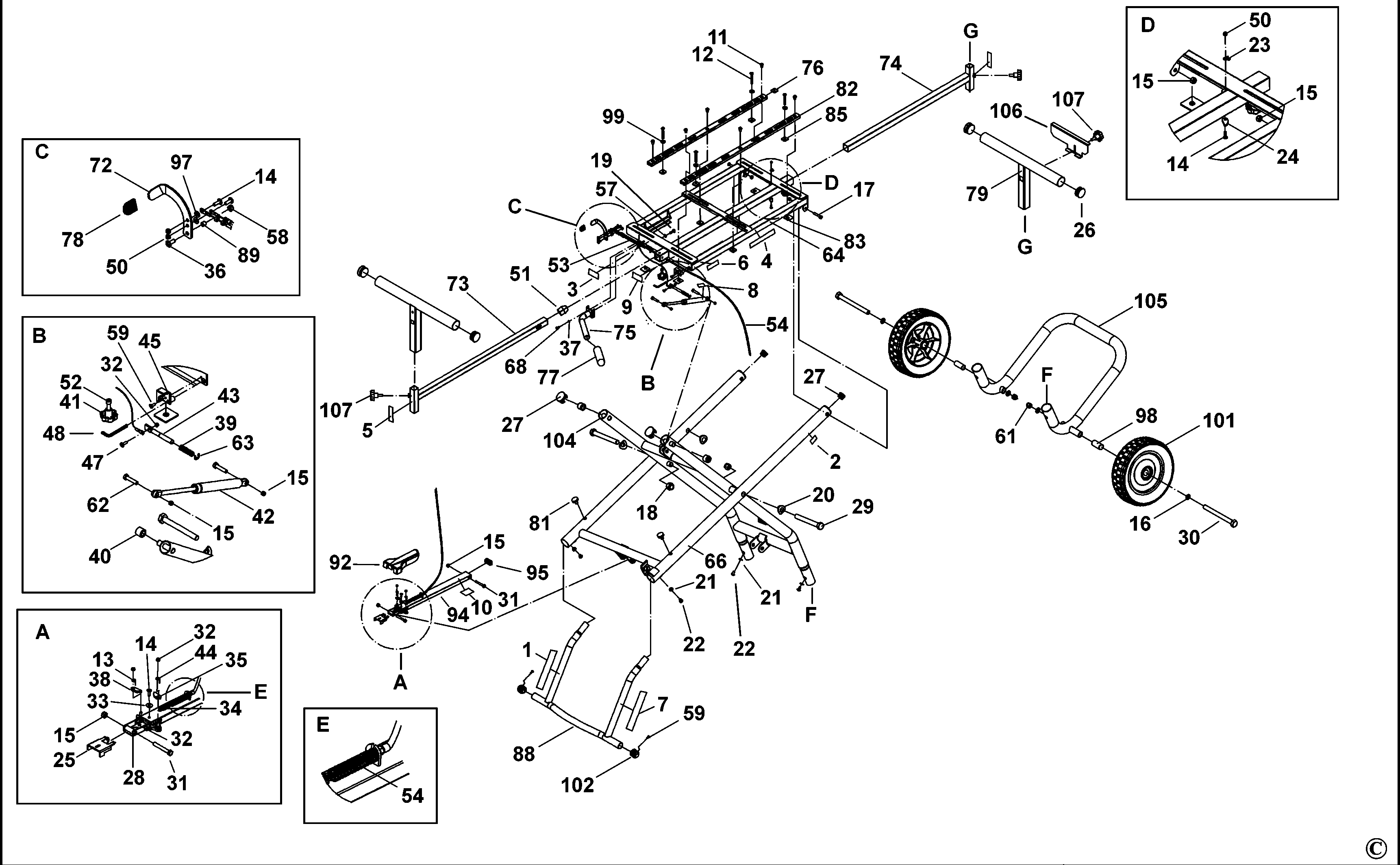

DE7260 FOLDING STAND Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N567279 | 2 | WARNING LABEL | XJ | |||
| 3 | N567280 | 1 | LABEL | XJ | |||
| 4 | N116780 | 1 | LABEL | XJ | |||
| 6 | N567274 | 1 | LABEL | XJ | |||
| 8 | N116784 | 1 | WARNING LABEL | XJ | |||
| 9 | N116542 | 1 | IDENTITY LABEL | XJ | |||
| 10 | N594646 | 1 | RATING PLATE. | XJ | |||
| 11 | N474586 | 6 | SCREW | XJ | |||
| 12 | N474591 | 4 | SCREW | XJ | |||
| 13 | N476133 | 1 | SPRING LH | XJ | |||
| 14 | N477168 | 5 | SCREW | M5X15 | XJ | ||
| 15 | N477172 | 6 | LOCK-NUT | XJ | |||
| 16 | N476177 | 4 | WASHER | XJ | |||
| 17 | N476091 | 2 | BOLT | XJ | |||
| 18 | N476105 | 2 | NUT | XJ | |||
| 19 | N476148 | 1 | SCREW | XJ | |||
| 20 | N476104 | 4 | WASHER | XJ | |||
| 21 | N476174 | 4 | WASHER | XJ | |||
| 22 | N476173 | 4 | SCREW | XJ | |||
| 23 | N479435 | 2 | SPRING LH | XJ | |||
| 24 | N474580 | 2 | STOP | XJ | |||
| 25 | N476131 | 1 | PLATE | XJ | |||
| 26 | N476161 | 2 | END CAP | XJ | |||
| 27 | N476120 | 4 | END CAP | XJ | |||
| 28 | N476128 | 1 | BRACKET | XJ | |||
| 29 | N476103 | 2 | BOLT | XJ | |||
| 30 | N476176 | 2 | BOLT | XJ | |||
| 31 | N476138 | 2 | SCREW | XJ | |||
| 32 | N477170 | 4 | NUT | XJ | |||
| 33 | N476132 | 1 | WASHER | XJ | |||
| 34 | N476136 | 1 | SPRING | XJ | |||
| 35 | N476135 | 1 | STOP LH | XJ | |||
| 36 | N474572 | 1 | SCREW | XJ | |||
| 37 | N476151 | 1 | WASHER | XJ | |||
| 38 | N476134 | 1 | STOP RH | XJ | |||
| 39 | N474577 | 1 | SPRING COMPRESSION | XJ | |||
| 40 | N476102 | 2 | SPACER | XJ | |||
| 41 | N476140 | 2 | LOCK KNOB | XJ | |||
| 42 | N474583 | 1 | PISTON | XJ | |||
| 43 | N474576 | 1 | LOCKING PIN | XJ | |||
| 44 | N477171 | 1 | SPRING RH | XJ | |||
| 45 | N474566 | 1 | INSERT | XJ | |||
| 47 | N474579 | 1 | SCREW | XJ | |||
| 48 | N474567 | 1 | HEX KEY | XJ | |||
| 50 | N477169 | 1 | LOCK NUT | XJ | |||
| 51 | N476156 | 1 | END CAP | XJ | |||
| 52 | N476142 | 2 | NUT | XJ | |||
| 53 | N474575 | 1 | WIRE | XJ | |||
| 54 | N474571 | 1 | WIRE | XJ | |||
| 57 | N476149 | 1 | WASHER SPRING | XJ | |||
| 58 | N474573 | 1 | LOCK NUT | XJ | |||
| 59 | N477167 | 3 | SCREW | XJ | |||
| 61 | N476178 | 1 | LOCK NUT | XJ | |||
| 62 | N474584 | 2 | BOLT | XJ | |||
| 63 | N474578 | 1 | SPRING | XJ | |||
| 64 | N474216 | 1 | TABLE | XJ | |||
| 66 | N476086 | 1 | FRAME | XJ | |||
| 68 | N476150 | 1 | SCREW | XJ | |||
| 72 | N474569 | 1 | RELEASE | XJ | |||
| 73 | N476154 | 1 | EXTENSION | XJ | |||
| 74 | N476152 | 1 | EXTENSION | XJ | |||
| 75 | N476144 | 1 | Handle | XJ | |||
| 76 | N474587 | 4 | SLIDER | XJ | |||
| 77 | N476147 | 1 | RUBBER | XJ | |||
| 78 | N474570 | 1 | CAP | XJ | |||
| 79 | N476158 | 2 | SUPPORT | XJ | |||
| 81 | N476092 | 2 | RUBBER SEAL | XJ | |||
| 82 | N474585 | 2 | RAIL | XJ | |||
| 83 | N474588 | 4 | NUT | XJ | |||
| 85 | N474589 | 6 | NUT | XJ | |||
| 88 | N476166 | 1 | STABILISER | XJ | |||
| 89 | N474568 | 1 | COLLAR | XJ | |||
| 92 | N476139 | 1 | COVER | XJ | |||
| 94 | N476122 | 1 | FRAME | XJ | |||
| 95 | N476137 | 1 | CAP | XJ | |||
| 97 | N474574 | 2 | WASHER | XJ | |||
| 98 | N476179 | 2 | BUSH | XJ | |||
| 99 | N474590 | 4 | WASHER | XJ | |||
| 101 | N576963 | 2 | WHEEL | XJ | |||
| 102 | N476169 | 2 | CAP | XJ | |||
| 104 | N476093 | 1 | FRAME | XJ | |||
| 105 | N476170 | 1 | FRAME | XJ | |||
| 106 | N476162 | 1 | SUPPORT PLATE | XJ | |||
| 107 | N476163 | 3 | KNOB | XJ |
