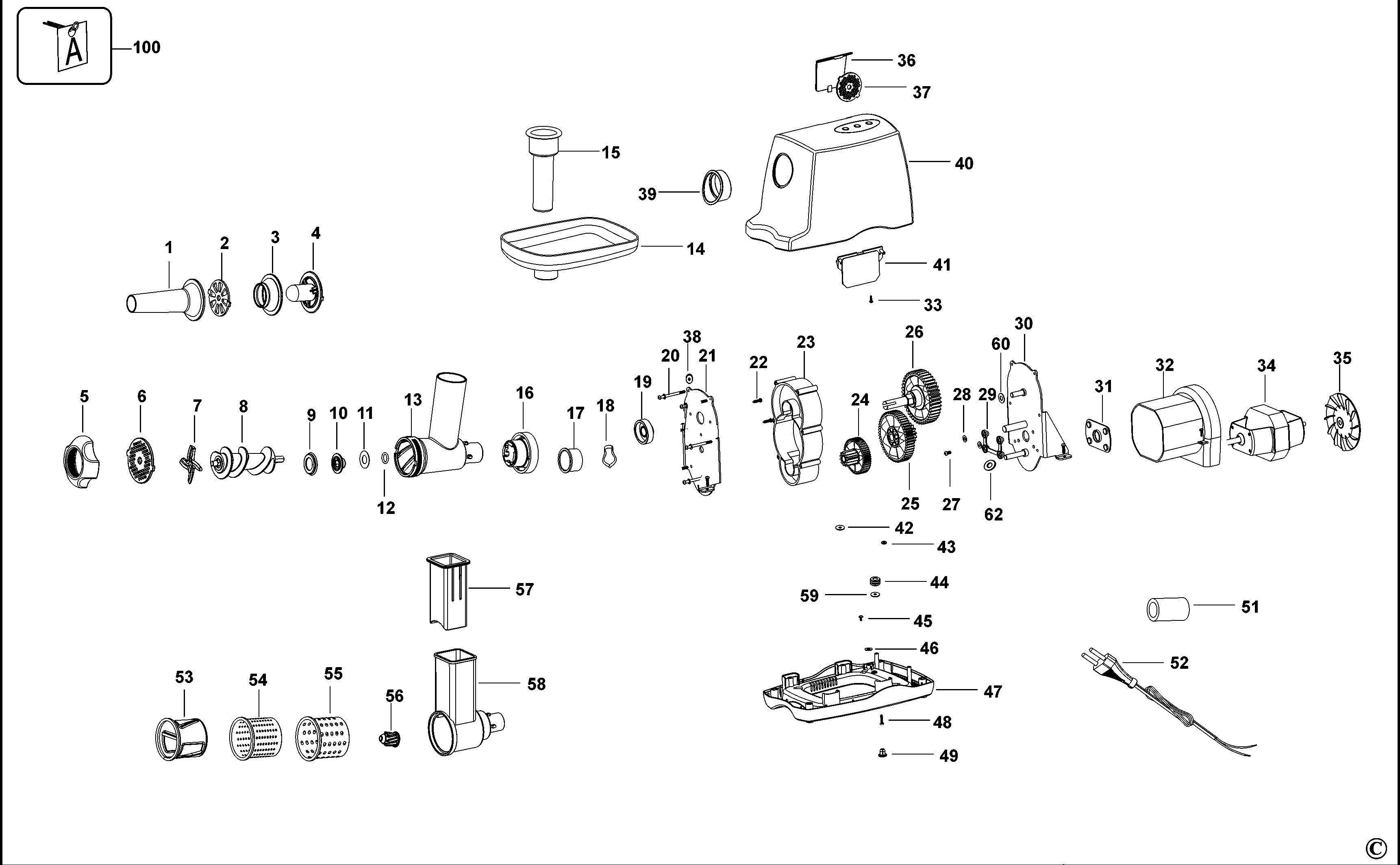

FM1700 MINCERS Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	6010147-01	1	ROD		XJ
2	6010147-02	1	DISC		XJ
3	6010147-03	1	ATTACHMENT		XJ
4	6010147-04	1	ATTACHMENT		XJ
5	6010147-05	1	CAP		XJ
6	6010147-06	1	DISC		XJ
7	1004689-01	1	BLADE SA	Round	XJ
8	1004689-01	1	BLADE SA		XJ
9	6010147-09	1	SEAL		XJ
10	6010195-10	1	WASHER		XJ
11	6010147-11	1	WASHER		XJ
12	6010147-12	1	O RING		XJ
13	6010147-13	1	HEAD SA		XJ
14	6010147-14	1	TRAY		XJ
15	6010147-15	1	FOOD PUSHER		XJ
16	6010147-16	1	CONNECTOR		XJ
17	6010147-17	1	TUBE		XJ
18	6010147-18	2	WASHER		XJ
19	6010147-19	1	BEARING		XJ
20	6010147-20	6	SCREW		XJ
21	6010147-21	1	PLATE		XJ
22	6010147-22	8	SCREW		XJ
23	6010147-23	1	GEARBOX		XJ
24	6010147-24	1	GEAR		XJ
25	6010147-25	1	GEAR		XJ
26	6010195-26	1	GEAR		XJ
27	6010147-27	4	SCREW		XJ
28	6010147-28	4	WASHER SPRING		XJ
29	6010147-29	1	PLATE		XJ
30	6010147-30	1	PLATE		XJ
31	6010147-31	1	PLATE		XJ
32	6010147-32	1	MOTOR COVER		XJ
33	6010147-33	4	SCREW		XJ
34	6010147-34	1	MOTOR		XJ
35	6010147-35	1	FAN		XJ
36	6010147-36	1	CAP		XJ
37	6010147-37	1	DISC		XJ
38	6010147-38	6	WASHER SPRING		XJ
39	6010147-39	1	COVER		XJ
40	6010147-40	1	HOUSING MOTOR		XJ
41	6010147-41	1	PCB SA		XJ
42	6010147-42	4	WASHER		XJ
43	6010147-43	4	WASHER		XJ
44	6010147-44	4	RUBBER PAD		XJ
45	6010147-45	1	SCREW		XJ
46	6010147-46	1	WASHER		XJ
47	6010147-47	1	COVER HOUSING		XJ
48	6010147-48	4	SCREW		XJ
49	6010147-49	4	FOOT		XJ
51	6010147-51	1	CHOKE		XJ
52	6010147-52	1	CORDSET		XJ
53	6010147-53	1	BLADE METAL		XJ
54	6010147-54	1	BLADE.SHREDDING		XJ
55	6010147-55	1	BLADE.SHREDDING		XJ
56	6010147-56	1	CONNECTOR		XJ
57	6010147-57	1	FOOD PUSHER		XJ
58	6010147-58	1	ATTACHMENT		XJ
59	6010147-59	4	PLATE		XJ
60	6010147-60	1	WASHER		XJ
62	6010147-62	1	WASHER		XJ
99	1004689-01	1	BLADE SA		XJ
