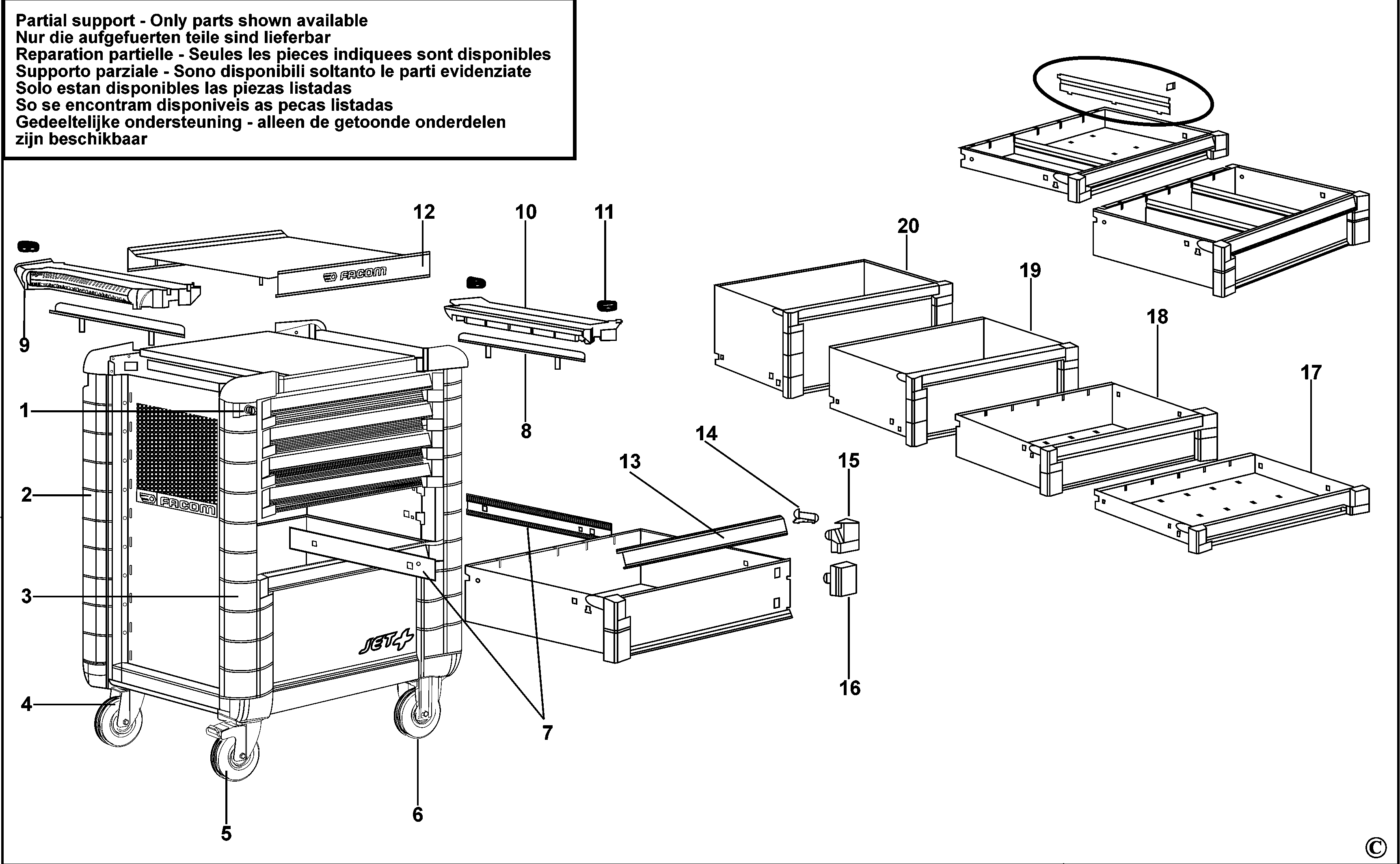

JET.7M3 ROLLER CABINET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 2840.17 | 1 | LOCK | XJ | |||
| 2 | JET3-05 | 2 | BUMPER | XJ | |||
| 3 | JET3-06 | 2 | BUMPER | XJ | |||
| 4 | JET3-RP125 | 1 | WHEEL PIVOT | XJ | |||
| 5 | JET3-RPF125 | 1 | WHEEL PIVOT - BRAKE | XJ | |||
| 6 | JET3-RF125 | 2 | WHEEL FIXED | XJ | |||
| 7 | SER.GL10 | 7 | TRACK | XJ | |||
| 8 | JET3-14 | 2 | SIDE | XJ | |||
| 9 | JET3-02 | 1 | HANDLE | XJ | |||
| 10 | JET3-01 | 1 | EXTENDER | XJ | |||
| 11 | JET3-03 | 1 | PLATE | XJ | |||
| 12 | JET3-13M3 | 1 | COVER-TOP | XJ | |||
| 13 | JET3-04M3 | 7 | HANDLE | XJ | |||
| 14 | JET3-07/08 | 7 | HOOK | XJ | |||
| 15 | JET3-09/10 | 7 | BUMPER | XJ | |||
| 16 | JET3-11/12 | 3 | BUMPER | XJ | |||
| 17 | JET3-15M3R2 | 4 | DRAWER | XJ | |||
| 18 | JET3-16M3R2 | 1 | DRAWER | XJ | |||
| 19 | JET3-17M3R2 | 1 | DRAWER | XJ |
