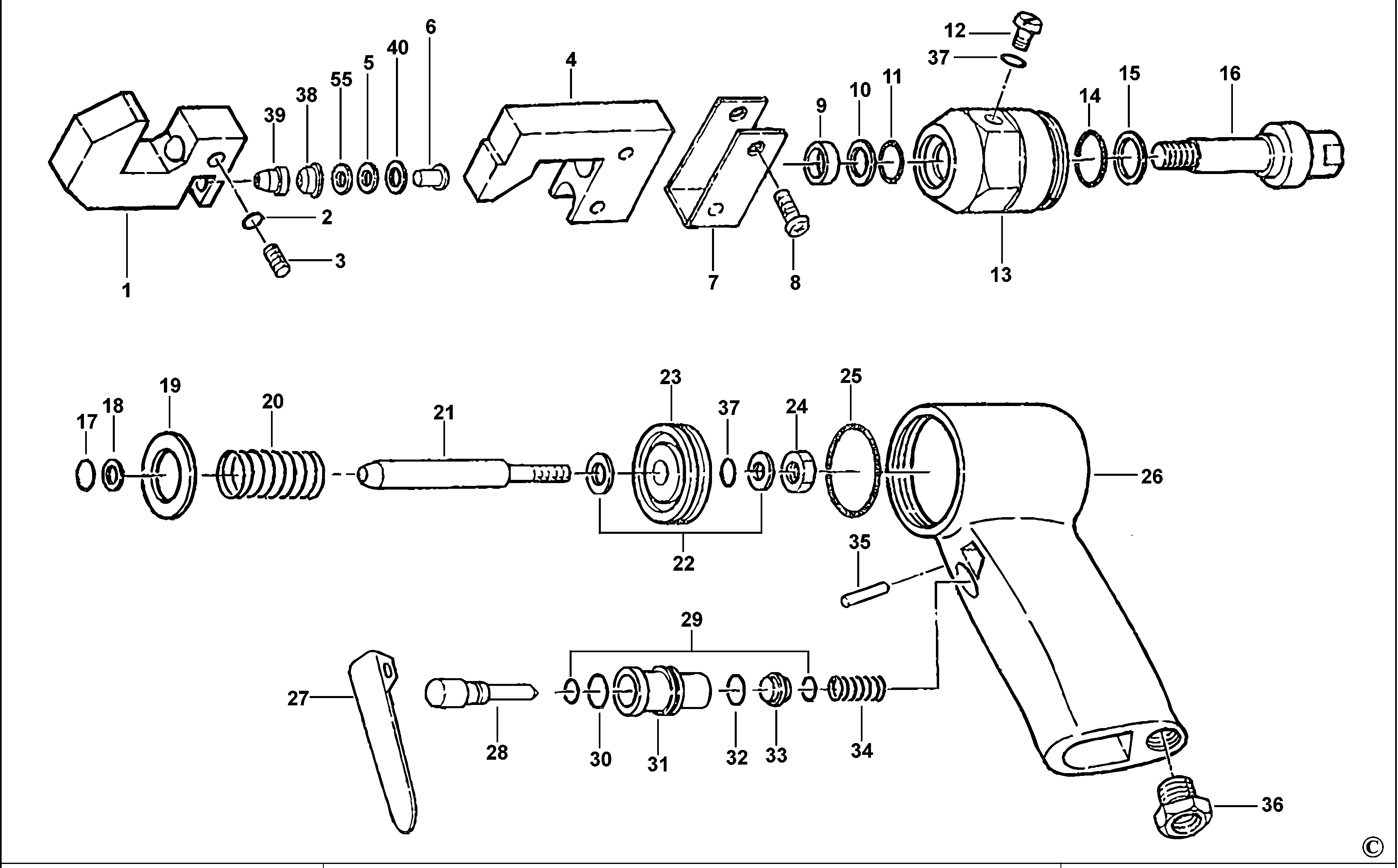

V.PF300F PUNCH AND FLANGE TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004724-73 | 1 | CLAMP | XJ | |||
| 2 | 1004724-74 | 1 | SEAL | XJ | |||
| 3 | 1004724-75 | 1 | SCREW KIT | XJ | |||
| 4 | 1004724-76 | 1 | CLAMP | XJ | |||
| 5 | 1004724-77 | 10 | WASHER | XJ | |||
| 6 | 1004724-78 | 1 | PIN | XJ | |||
| 7 | 1004724-79 | 1 | GUARD | XJ | |||
| 8 | 1004724-80 | 2 | SCREW | XJ | |||
| 9 | 1004724-81 | 1 | SEAL | XJ | |||
| 10 | 1004724-82 | 1 | RING | XJ | |||
| 11 | 1004724-83 | 1 | O RING | XJ | |||
| 12 | 1004724-84 | 1 | PLUG | XJ | |||
| 13 | 1004724-85 | 1 | HOUSING | XJ | |||
| 14 | 1004724-86 | 1 | O RING | XJ | |||
| 15 | 1004724-87 | 1 | RING | XJ | |||
| 16 | 1004724-88 | 1 | PISTON | XJ | |||
| 17 | 1004724-89 | 1 | O RING | XJ | |||
| 18 | 1004724-90 | 1 | RING | XJ | |||
| 19 | 1004724-91 | 1 | SPACER | XJ | |||
| 20 | 1004724-92 | 1 | SPRING | XJ | |||
| 21 | 1004724-93 | 1 | ROD | XJ | |||
| 22 | 1004724-94 | 1 | WASHER | XJ | |||
| 23 | 1004724-95 | 1 | PISTON | XJ | |||
| 24 | 1004724-96 | 1 | NUT | XJ | |||
| 25 | 1004724-97 | 1 | O RING | XJ | |||
| 26 | 1004724-98 | 1 | BODY | XJ | |||
| 27 | 1004725-01 | 1 | LEVER | XJ | |||
| 28 | 1004725-02 | 1 | PIN | XJ | |||
| 29 | 1004725-03 | 2 | O RING | XJ | |||
| 30 | 1004725-04 | 1 | O RING | XJ | |||
| 31 | 1004725-05 | 1 | BUSHING | XJ | |||
| 32 | 1004725-06 | 1 | O RING | XJ | |||
| 33 | 1004725-07 | 1 | VALVE | XJ | |||
| 34 | 1004725-28 | 1 | SPRING | XJ | |||
| 35 | 1004725-09 | 1 | PIN | XJ | |||
| 36 | 1004725-10 | 1 | BUSHING | XJ | |||
| 37 | 1004725-11 | 1 | O RING | XJ | |||
| 38 | 1004725-12 | 1 | BUSHING | XJ | |||
| 39 | 1004725-13 | 1 | BUSHING | XJ | |||
| 40 | 1004725-14 | 1 | WASHER | XJ | |||
| 55 | 1004725-15 | 1 | WASHER | XJ |
