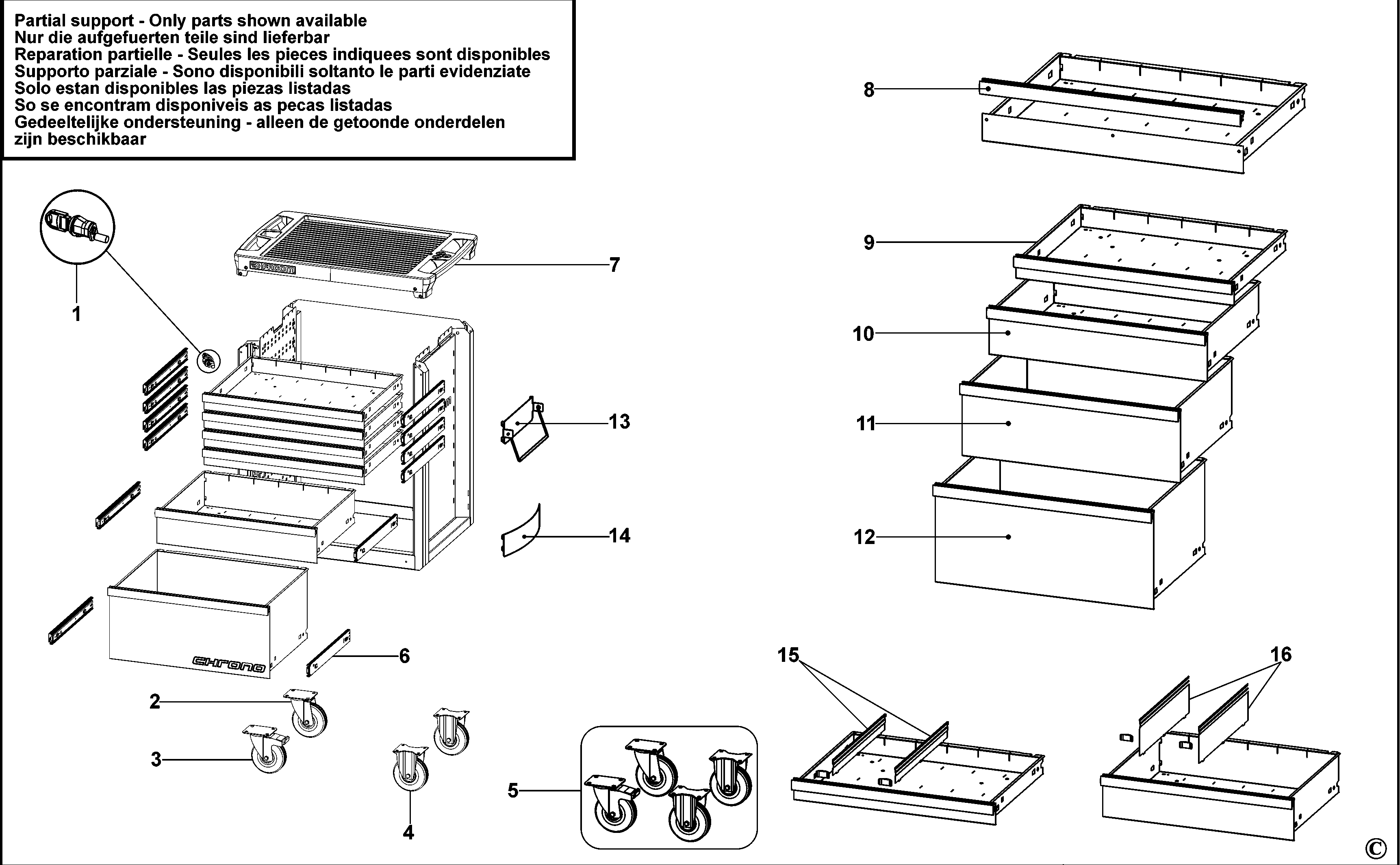

CHRONO.7M3A ROLLER CABINET Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 2840.17 | 1 | LOCK | XJ | |||
| 2 | 2092.09 | 1 | WHEEL PIVOT | XJ | |||
| 3 | 2092.10 | 1 | WHEEL PIVOT - BRAKE | XJ | |||
| 4 | 2092.11 | 2 | WHEEL FIXED | XJ | |||
| 5 | SER.J4R | 1 | WHEELS | XJ | |||
| 6 | SER.GLSC | 6 | SLIDER | XJ | |||
| 7 | CHR6.01 | 1 | COVER-TOP | XJ | |||
| 8 | CHR6.02 | 6 | SEPARATOR | XJ | |||
| 9 | CHR6.70N1 | 4 | DRAWER | XJ | |||
| 10 | CHR6.140N1 | 1 | DRAWER | XJ | |||
| 11 | CHR6.210R2 | 1 | DRAWER | XJ | |||
| 12 | CHR6.280N1 | 1 | DRAWER | XJ | |||
| 13 | SER.RPN1 | 1 | HOLDER | XJ | |||
| 14 | SER.SBN1 | 1 | HOLDER | XJ | |||
| 15 | JET2.15 | 2 | SEPARATOR | XJ | |||
| 16 | JET2.16 | 1 | SEPARATOR | XJ |
