SHT-26-55 HEDGE TRIMMER Type 1 | Drawings

Documents

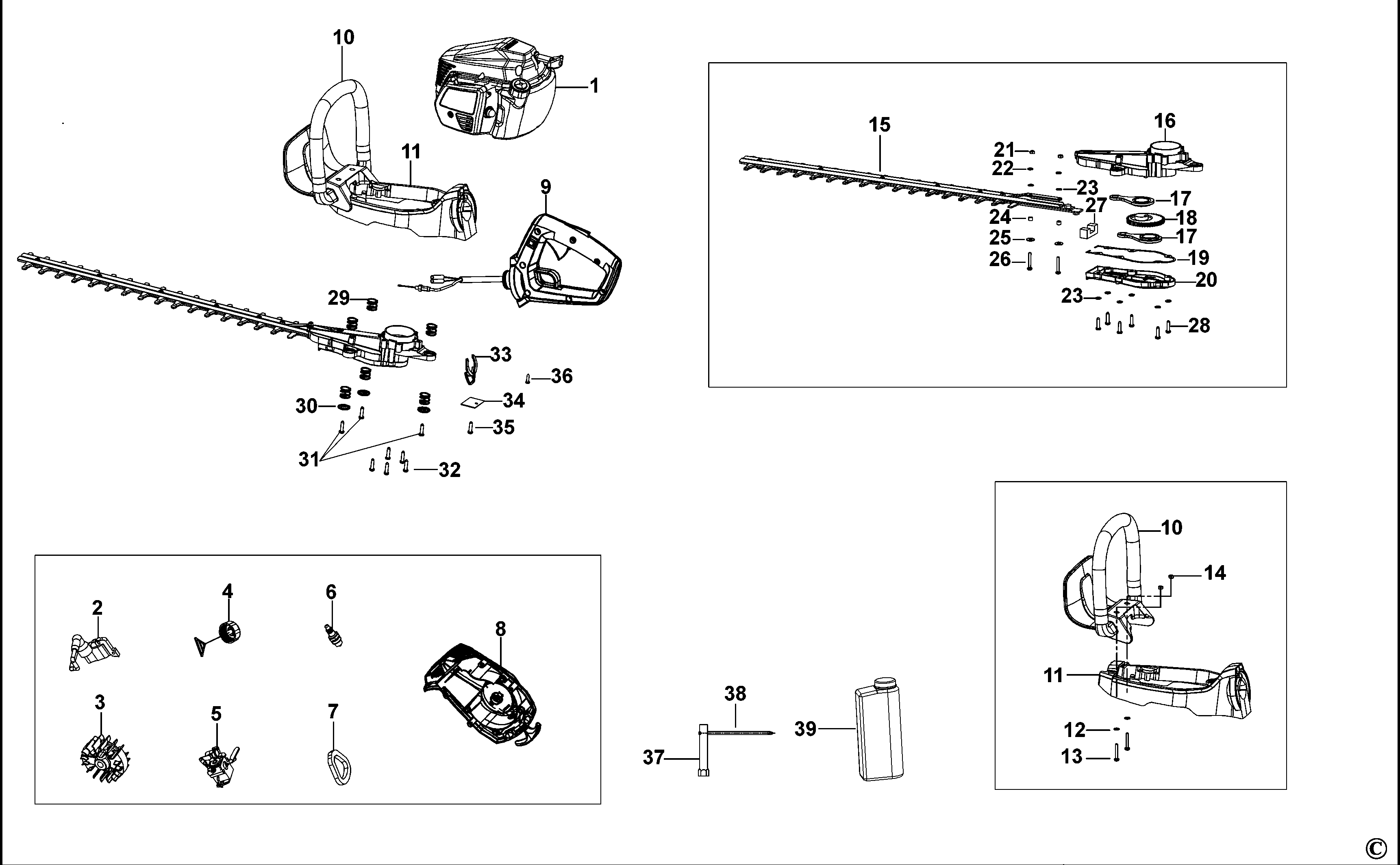

Item No.	Product Number	Qty Per	Product Description	Other Info	Markets
1	E604200010A	1	MOTOR SA		XJ
2	E604200010A1	1	COIL SA		XJ
3	E604200010A2	1	FLYWHEEL		XJ
4	E604200010A3	1	CAP SA		XJ
5	E604200010A4	1	CARBURETTOR SA		XJ
6	E604200010A5	1	SPARK PLUG	L8RTC or RCJ67	XJ
7	E604200010A6	1	FILTER		XJ
8	E604200010A7	1	STARTER SA		XJ
9	E604200010B	1	HANDLE SA		XJ
10	E604200010C1	1	HANDLE SA		XJ
11	E604200010C2	1	RACK SA		XJ
12	E604200010C3	2	WASHER		XJ
13	E604200010C4	2	SCREW	M5x25	XJ
14	E604200010C5	2	NUT		XJ
15	E604200010D1	1	BLADE SA		XJ
16	E604200010D2	1	GEARCASE		XJ
17	E604200010D3	2	ROD SA		XJ
18	E604200010D4	1	GEAR		XJ
19	E604200010D5	1	GASKET		XJ
20	E604200010D6	1	GEARCASE COVER		XJ
21	E604200010D7	2	NUT M5		XJ
22	E604200010D8	2	WASHER SPRING		XJ
23	E604200010D9	8	WASHER	5x10	XJ
24	E604200010D10	2	SLEEVE		XJ
25	E604200010D11	2	GASKET		XJ
26	E604200010D12	2	SCREW	M5x32L	XJ
27	E604200010D13	1	GASKET		XJ
28	E604200010D14	6	SCREW	ST5x25	XJ
29	E604200010E	6	SPRING COMPRESSION		XJ
30	E604200010F	3	RETAINER		XJ
31	E604200010G	3	SCREW		XJ
32	E604200010H	5	SCREW	M5x30	XJ
33	E604200010I	1	CLIP		XJ
34	E604200010J	1	COVER		XJ
35	E604200010K	1	SCREW	ST4.5 x16L	XJ
36	E604200010L	1	SCREW	ST3.5 x 15L	XJ
37	E604200010M	1	SOCKET		XJ
38	E604200010N	1	SCREWDRIVER-SET		XJ
39	E604200010O	1	BOTTLE	Ratio 40:1	XJ
