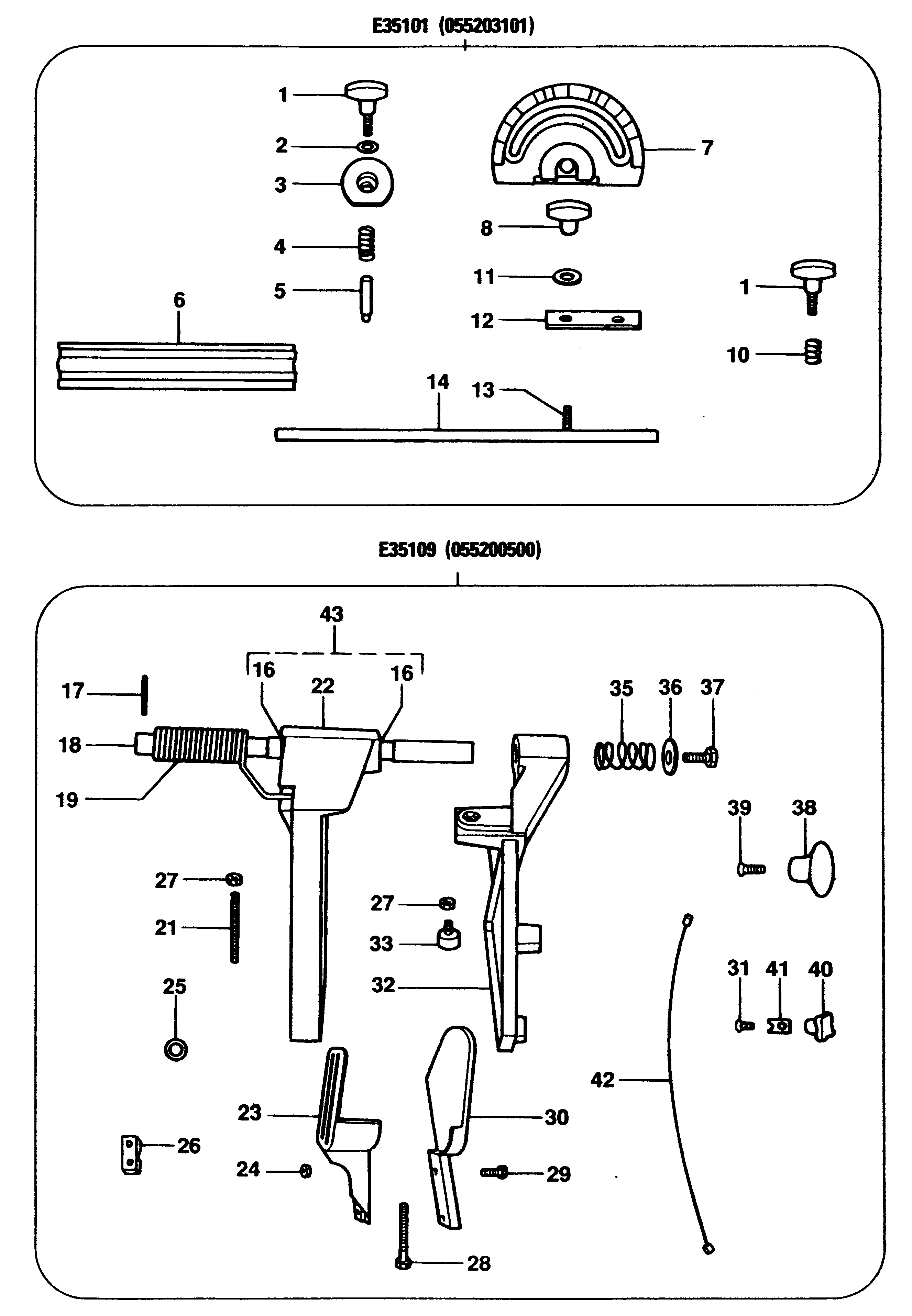

E35109 SAW BENCH ACCESSORY Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 941881-00 | 2 | Handle | E35101 | XJ | ||
| 2 | 860073-03 | 1 | WASHER M8 | E35101 | XJ | ||
| 3 | 941746-00 | 1 | CLAMP | E35101 | XJ | ||
| 4 | 941759-00 | 1 | SPRING | E35101 | XJ | ||
| 5 | 941717-00 | 1 | SCREW | E35101 | XJ | ||
| 6 | 941744-00 | 1 | BAR | E35101 | XJ | ||
| 7 | 941708-00 | 1 | SCALE | E35101 | XJ | ||
| 8 | 941756-00 | 1 | KNOB | E35101 | XJ | ||
| 10 | 941586-00 | 1 | SPRING | E35101 | XJ | ||
| 11 | 941602-00 | 1 | WASHER | E35101 | XJ | ||
| 12 | 055230000 | 2 | PLATE | E35101 | XJ | ||
| 13 | 941755-00 | 1 | STUD | E35101 | XJ | ||
| 14 | 866121-00 | 1 | GUIDE | E35101 | XJ | ||
| 16 | 055980130 | 2 | BEARING SINTER | E35109 | XJ | ||
| 17 | 009810201 | 1 | ADAPTOR | E35109 | XJ | ||
| 18 | 055230402 | 1 | ROD | E35109 | XJ | ||
| 19 | 941757-00 | 1 | SPRING | E35109 | XJ | ||
| 21 | 941754-00 | 1 | ROD | E35109 | XJ | ||
| 22 | 055233900 | 1 | ARM SWIVEL | E35109 | XJ | ||
| 23 | 055239401 | 1 | COVER | E35109 | XJ | ||
| 24 | 860083-12 | 2 | NUT M6 | E35109 | XJ | ||
| 25 | 860073-03 | 4 | WASHER M8 | E35109 | XJ | ||
| 26 | 055233500 | 1 | CLAMP | E35109 | XJ | ||
| 27 | 860083-14 | 2 | NUT | E35109 | XJ | ||
| 28 | 942043-00 | 4 | SCREW | E35109 | XJ | ||
| 29 | 003811102 | 2 | SCREW | E35109 | XJ | ||
| 30 | 055239400 | 1 | COVER | E35109 | XJ | ||
| 31 | 860085-09 | 1 | SCREW.TEMP | E35109 | XJ | ||
| 32 | 055230101 | 1 | HOLDER | E35109 | XJ | ||
| 33 | 941614-00 | 1 | FOOT | E35109 | XJ | ||
| 35 | 941758-00 | 1 | SPRING | E35109 | XJ | ||
| 36 | 055930160 | 1 | WASHER | E35109 | XJ | ||
| 37 | 860085-00 | 1 | BOLT | E35109 | XJ | ||
| 38 | 941609-00 | 1 | KNOB | E35109 | XJ | ||
| 39 | 860085-03 | 1 | BOLT | E35109 | XJ | ||
| 40 | 941536-01 | 1 | KNOB | E35109 | XJ | ||
| 41 | 941715-00 | 1 | PLATE | E35109 | XJ | ||
| 42 | 941763-00 | 1 | CORDSET | E35109 | XJ |
