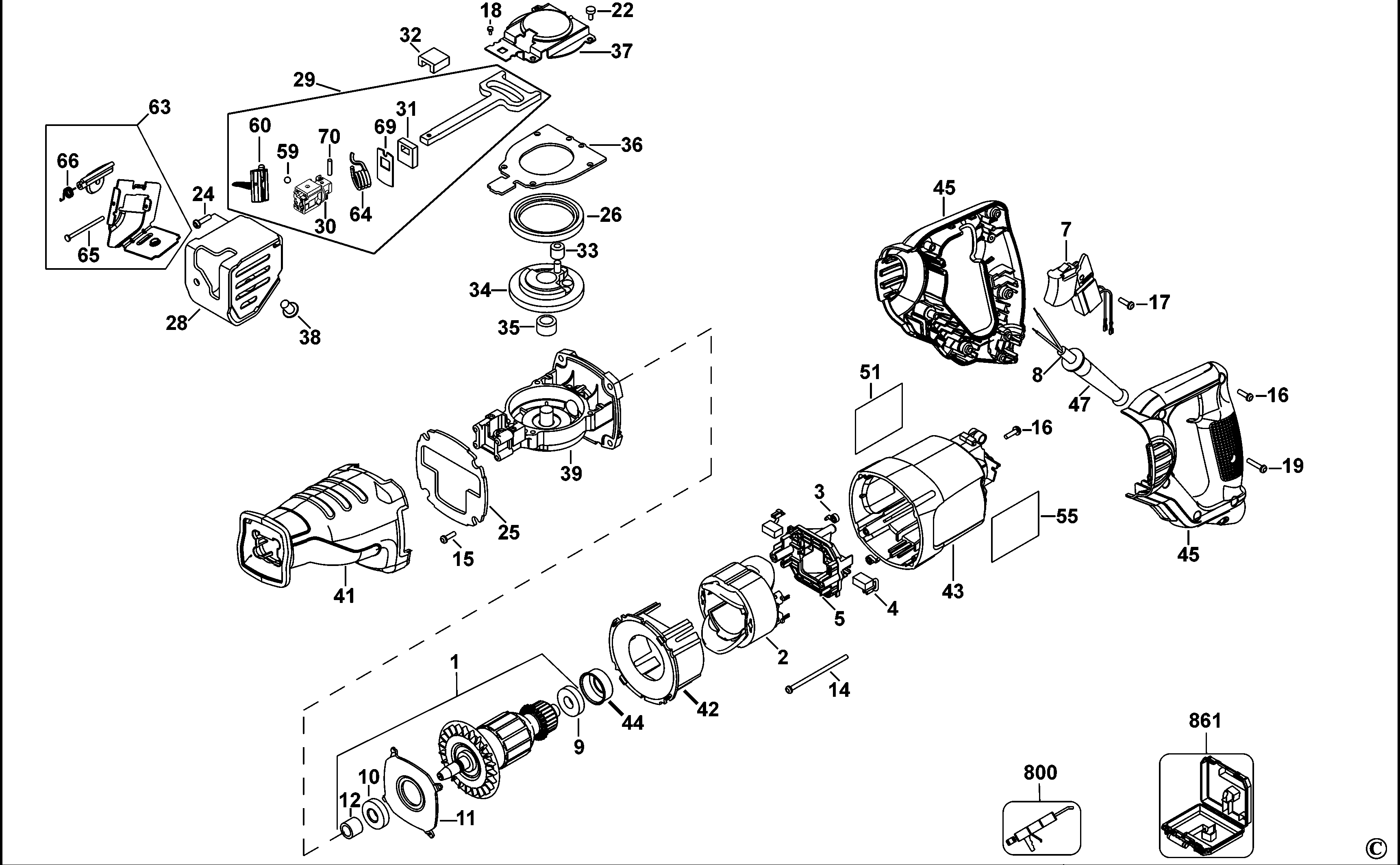

DW304PK CUTSAW Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 616355-00SV | 1 | ARMATURE 120V | TW | |||
| 2 | 448719-80 | 1 | FIELD SA | TW | |||
| 3 | 383387-00 | 2 | BRUSH SPRING | TW | |||
| 4 | 5140129-52 | 1 | BRUSH PAIR | TW | |||
| 5 | N408690 | 1 | BRUSHPLATE | PKG'D N399782 | TW | ||
| 7 | N054930SV | 1 | SWITCH SA | TW | |||
| 8 | N053148 | 1 | CORDSET | TW | |||
| 9 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | TW | ||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | TW | ||
| 11 | 383476-00 | 1 | PLATE | TW | |||
| 12 | 616345-00 | 1 | BUSH | TW | |||
| 14 | 330019-18 | 2 | SCREW | M4.55 x 50 PLASTIC THD FMG | TW | ||
| 15 | 330019-15 | 4 | SCREW | TW | |||
| 16 | 330019-32 | 7 | SCREW | TW | |||
| 17 | 330019-01 | 3 | SCREW.TEMP | M3.63 x 9.5mm T15 | TW | ||
| 18 | 158472-00 | 2 | SCREW | TW | |||
| 19 | 330019-14 | 2 | SCREW | TW | |||
| 22 | 144457-02 | 4 | SCREW | TW | |||
| 24 | 142940-00 | 4 | SCREW | TW | |||
| 25 | 146576-00 | 1 | GASKET | TW | |||
| 26 | N401394 | 1 | RING | TW | |||
| 28 | N192684 | 1 | SHOE | TW | |||
| 29 | N201032 | 1 | SHAFT SA | TW | |||
| 30 | N410097 | 1 | BLADE CLAMP | INCL. SPRING | TW | ||
| 31 | 609488-00 | 1 | FELT SEAL | TW | |||
| 32 | N400905 | 1 | BEARING | TW | |||
| 33 | 385238-00 | 1 | BEARING NEEDLE | TW | |||
| 34 | 448503-14 | 1 | GEAR | TW | |||
| 35 | 135531-00 | 1 | BEARING | TW | |||
| 36 | N083910 | 1 | PLATE | TW | |||
| 37 | 448489-03 | 1 | PLATE | TW | |||
| 38 | 099279-08 | 1 | SCREW | TW | |||
| 39 | 616333-00SV | 1 | GEARCASE | TW | |||
| 41 | N028019 | 1 | COVER | TW | |||
| 42 | 382750-01 | 1 | BAFFLE FAN | TW | |||
| 43 | 382747-12 | 1 | FIELDCASE | TW | |||
| 44 | 137382-02 | 1 | SLEEVE | TW | |||
| 45 | N427215 | 1 | HOUSING HANDLE | TW | |||
| 47 | 330005-01 | 1 | CORD PROTECTOR | TW | |||
| 51 | N266768 | 1 | RATING LABEL | TW | |||
| 55 | 627212-00 | 1 | BRAND LABEL | DEWALT | TW | ||
| 59 | 903-00 | 1 | BALL | TW | |||
| 60 | N436043 | 1 | SLIDER | TW | |||
| 63 | N192680 | 1 | LEVER SA | TW | |||
| 64 | N410097 | 1 | BLADE CLAMP | INCL. SPRING | TW | ||
| 65 | 396016-00 | 1 | PIN | TW | |||
| 66 | 396017-00 | 1 | SPRING | TW | |||
| 69 | 608202-00 | 1 | RETAINER | PLATE | TW | ||
| 70 | 330041-27 | 1 | ROLLPIN | TW | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | TW | ||
| 861 | N003337 | 1 | KITBOX | TW |
