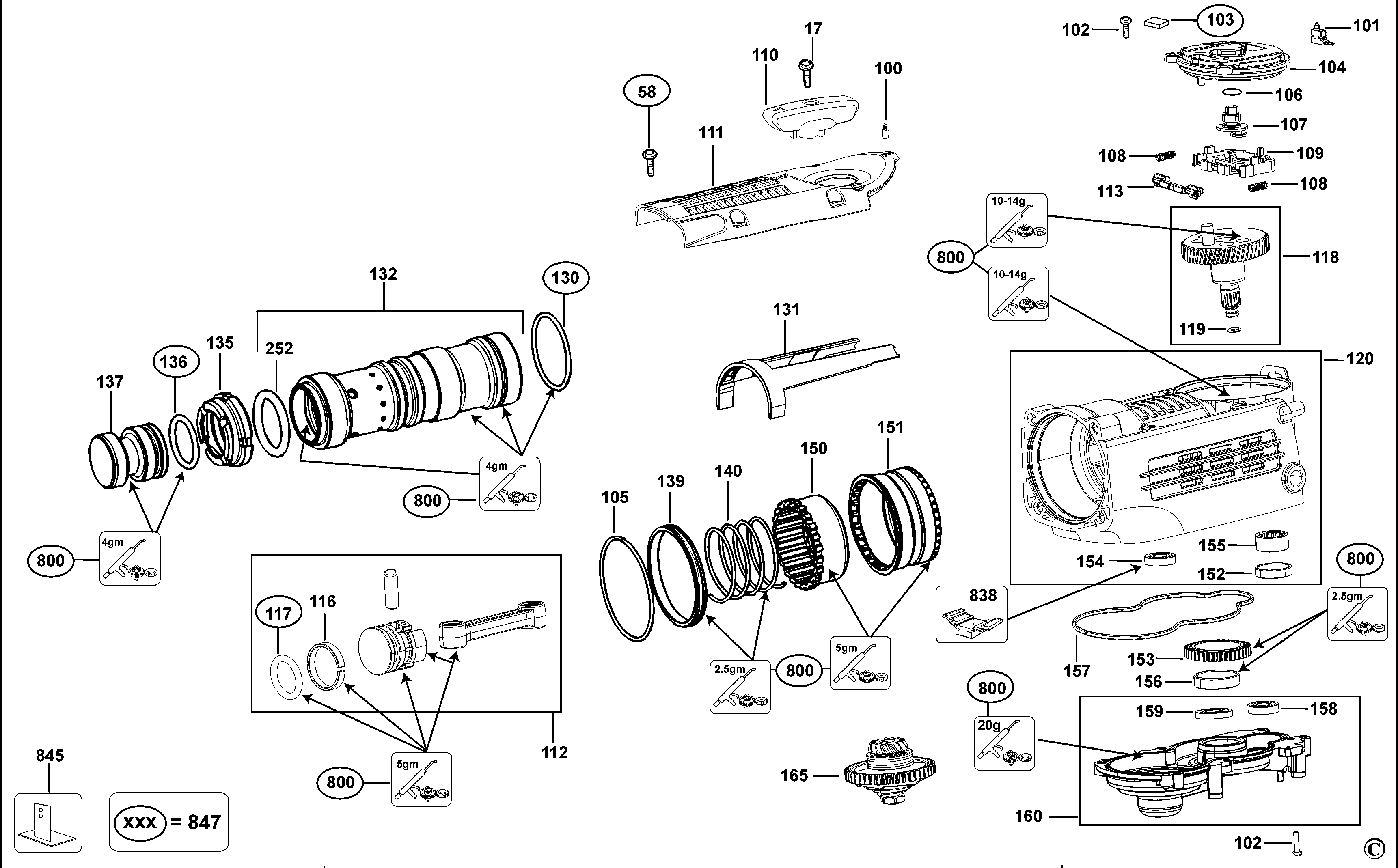

D25711K ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 489252-00 | 1 | ARMATURE 120V | TW | |||
| 2 | 489255-00 | 1 | FIELD 115V | TW | |||
| 3 | 587274-00 | 1 | SWITCH | TW | |||
| 4 | 489257-00 | 1 | BRUSH PAIR 115V | TW | |||
| 5 | 330019-30 | 2 | SCREW | TW | |||
| 6 | 577746-00 | 1 | RING | TW | |||
| 7 | 577745-00 | 1 | BEARING | TW | |||
| 8 | 590191-00 | 1 | SLEEVE INSULATING | TW | |||
| 9 | N053063-02 | 1 | HOUSING MOTOR | TW | |||
| 10 | N542569 | 1 | FAN SA | TW | |||
| 15 | 324119-02 | 1 | SCREW | TW | |||
| 16 | N029959 | 1 | BAFFLE FAN | TW | |||
| 17 | 330065-08 | 19 | SCREW | M4x18 T20 | TW | ||
| 18 | N053976 | 1 | GACC MODULE 115V | TW | |||
| 19 | N022762-00 | 1 | MOTOR COVER | TW | |||
| 20 | N027971 | 1 | END CAP | TW | |||
| 21 | N186903 | 1 | CAPACITOR | X- 0.1uf | TW | ||
| 27 | 1005672-00 | 1 | SCREW | TW | |||
| 28 | N026163-01 | 1 | SUPPORT PLATE | TW | |||
| 29 | 1007569-00 | 1 | SPRING | TW | |||
| 30 | 1007567-00 | 1 | BUSH | TW | |||
| 35 | 1007566-00 | 1 | STOP | TW | |||
| 36 | 1007565-00 | 1 | BELLOWS | TW | |||
| 37 | 1006579-00 | 1 | SWITCH HANDLE | TW | |||
| 38 | 587114-01 | 1 | TRIGGER | TW | |||
| 39 | 1006580-00 | 1 | HANDLE COVER | TW | |||
| 40 | N019514 | 1 | TRIGGER LOCK-ON | TW | |||
| 45 | N037180 | 1 | SET OF LEAD WIRES | TW | |||
| 46 | 1008678-00 | 1 | BELLOWS | TW | |||
| 47 | N038214 | 2 | BUSH | TW | |||
| 48 | N062047 | 1 | PIN | TW | |||
| 49 | N030728 | 1 | LENS | TW | |||
| 50 | 1008391-00 | 1 | COVER | TW | |||
| 55 | 821070 | 1 | CORD CLAMP | TW | |||
| 56 | 323091-01 | 1 | CORD PROTECTOR | TW | |||
| 57 | N093992 | 1 | CORDSET | TW | |||
| 58 | 324007-11 | 4 | SCREW | M5 X 18 | TW | ||
| 100 | 326467-00 | 1 | DETENT | TW | |||
| 101 | N019533 | 1 | MICRO SWITCH | TW | |||
| 102 | 324007-11 | 18 | SCREW | M5 X 18 | TW | ||
| 103 | 488067-00 | 1 | FILTER | TW | |||
| 104 | N027968 | 1 | COVER GEARCASE | TW | |||
| 105 | 323711-56 | 1 | O RING | TW | |||
| 106 | 323711-48 | 1 | O RING | TW | |||
| 107 | 586032-00 | 1 | ECCENTRIC | TW | |||
| 108 | 323395-32 | 2 | SPRING | TW | |||
| 109 | N027969 | 1 | SLIDER | TW | |||
| 110 | 586038-00 | 1 | SELECTOR | TW | |||
| 111 | 585168-00 | 1 | COVER-TOP | TW | |||
| 112 | 488689-00 | 1 | PISTON KIT | <352010 | TW | ||
| 112 | N079389 | 1 | PISTON KIT | >352010 | TW | ||
| 113 | N027970 | 1 | RETAINER | TW | |||
| 116 | N029957 | 1 | CLIP | TW | |||
| 117 | 584703-00 | 1 | O RING | TW | |||
| 118 | N513280 | 1 | CRANKSHAFT | <352010 | TW | ||
| 118 | N090947 | 1 | CRANKSHAFT | >352010 | TW | ||
| 119 | 323711-26 | 1 | O RING | TW | |||
| 120 | N079379 | 1 | HOUSING SA | TW | |||
| 130 | 577744-07 | 1 | O RING | TW | |||
| 131 | 586034-00 | 1 | SLIDER | TW | |||
| 132 | N079394 | 1 | CYLINDER SA | TW | |||
| 135 | 584715-00 | 1 | BUSH | TW | |||
| 136 | 584706-00 | 1 | O RING | TW | |||
| 137 | 489180-00 | 1 | RAM | TW | |||
| 139 | 478650-00 | 1 | BUSH | TW | |||
| 140 | 584726-00 | 1 | SPRING | TW | |||
| 150 | 489181-01 | 1 | SLEEVE | TW | |||
| 151 | N079396 | 1 | BEVEL GEAR | TW | |||
| 152 | 479974-00 | 1 | SPACER | TW | |||
| 153 | 488688-00 | 1 | GEAR | TW | |||
| 154 | 577745-02 | 1 | BEARING,BALL | TW | |||
| 155 | 586301-00 | 1 | BEARING,NEEDLE | TW | |||
| 156 | 489239-00 | 1 | BEARING BRASS BUSH | TW | |||
| 157 | 586022-00 | 1 | SEAL | TW | |||
| 158 | 330003-39 | 1 | BEARING | TW | |||
| 159 | 327141-08 | 1 | SEAL | TW | |||
| 160 | N079387 | 1 | COVER GEARCASE | TW | |||
| 165 | N079393 | 1 | CLUTCH SA | TW | |||
| 200 | 487238-01 | 1 | SEAL | TW | |||
| 201 | 487205-00 | 1 | RING | TW | |||
| 202 | 487241-00 | 1 | WASHER | TW | |||
| 203 | 487244-00 | 1 | RUBBER | TW | |||
| 204 | 487236-00 | 1 | SLEEVE | TW | |||
| 205 | 579784-00 | 1 | LOCKING RING | TW | |||
| 206 | 487218-00 | 1 | SPRING | TW | |||
| 207 | 489672-00 | 2 | KEY | TW | |||
| 208 | 487249-00 | 1 | BUSH | TW | |||
| 209 | 590377-00 | 1 | GUIDE BUSH | TW | |||
| 210 | 487216-00 | 1 | SPRING | TW | |||
| 220 | 584696-00 | 1 | GUIDE | TW | |||
| 221 | 585167-01 | 1 | COVER | TW | |||
| 223 | 949886-32 | 4 | SCREW | TW | |||
| 224 | 327141-07 | 1 | LIP SEAL | TW | |||
| 225 | 488679-00 | 1 | BEARING SET | TW | |||
| 226 | 488787-00 | 1 | RING | TW | |||
| 227 | 488678-00 | 1 | HOUSING FRONT | TW | |||
| 228 | 589096-00 | 1 | BUSH | TW | |||
| 229 | 589223-00 | 1 | DAMPER | TW | |||
| 230 | 584727-00 | 1 | BUSH | TW | |||
| 240 | 488546-00 | 1 | O RING | TW | |||
| 250 | 488676-00 | 1 | SPINDLE SA | TW | |||
| 251 | N014007 | 1 | SEAL | TW | |||
| 252 | 1005597-00 | 1 | O RING | TW | |||
| 253 | 488685-00 | 1 | BEARING | TW | |||
| 254 | 488681-00 | 1 | BEAT PIECE | TW | |||
| 255 | 488680-00 | 1 | WASHER | TW | |||
| 256 | 496678-00 | 1 | DAMPER | TW | |||
| 257 | 488686-00 | 1 | BUSH | TW | |||
| 260 | N083965 | 1 | HANDLE SA | TW | |||
| 261 | N021312 | 1 | CLAMPING INSERT | TW | |||
| 262 | N114828 | 1 | HANDLE | TW | |||
| 263 | 326553-00 | 1 | LOCKING RING | TW | |||
| 264 | N097712 | 1 | CLAMP | TW | |||
| 265 | 326552-00 | 1 | BUSH | TW | |||
| 266 | N079374 | 1 | PIN | TW | |||
| 800 | 578970-06 | 1 | GREASE 150 GMS | TW | |||
| 816 | N061824 | 1 | BRAND LABEL | TW | |||
| 817 | 487395-01 | 1 | LABEL | TW | |||
| 821 | N092450 | 1 | RATING PLATE | TW | |||
| 836 | 559652-99 | 1 | S.T.CIRCLIP REMOVER | TW | |||
| 836 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | TW | |||
| 837 | 559653-99 | 1 | S.T.BEARING EXTRACTOR | O Ring/Bush extracto | TW | ||
| 838 | 559657-99 | 1 | S.T.BEARING EXTRACTOR | Bearing puller, assm | TW | ||
| 840 | 559659-99 | 1 | S.T.SEAL FITTING TOOL | TW | |||
| 845 | 559656-99 | 1 | S.T.SUPPORT JIG | TW | |||
| 847 | N082645 | 1 | SERVICE KIT 120V | 7kg | TW | ||
| 861 | N072214 | 1 | KITBOX | TW |
