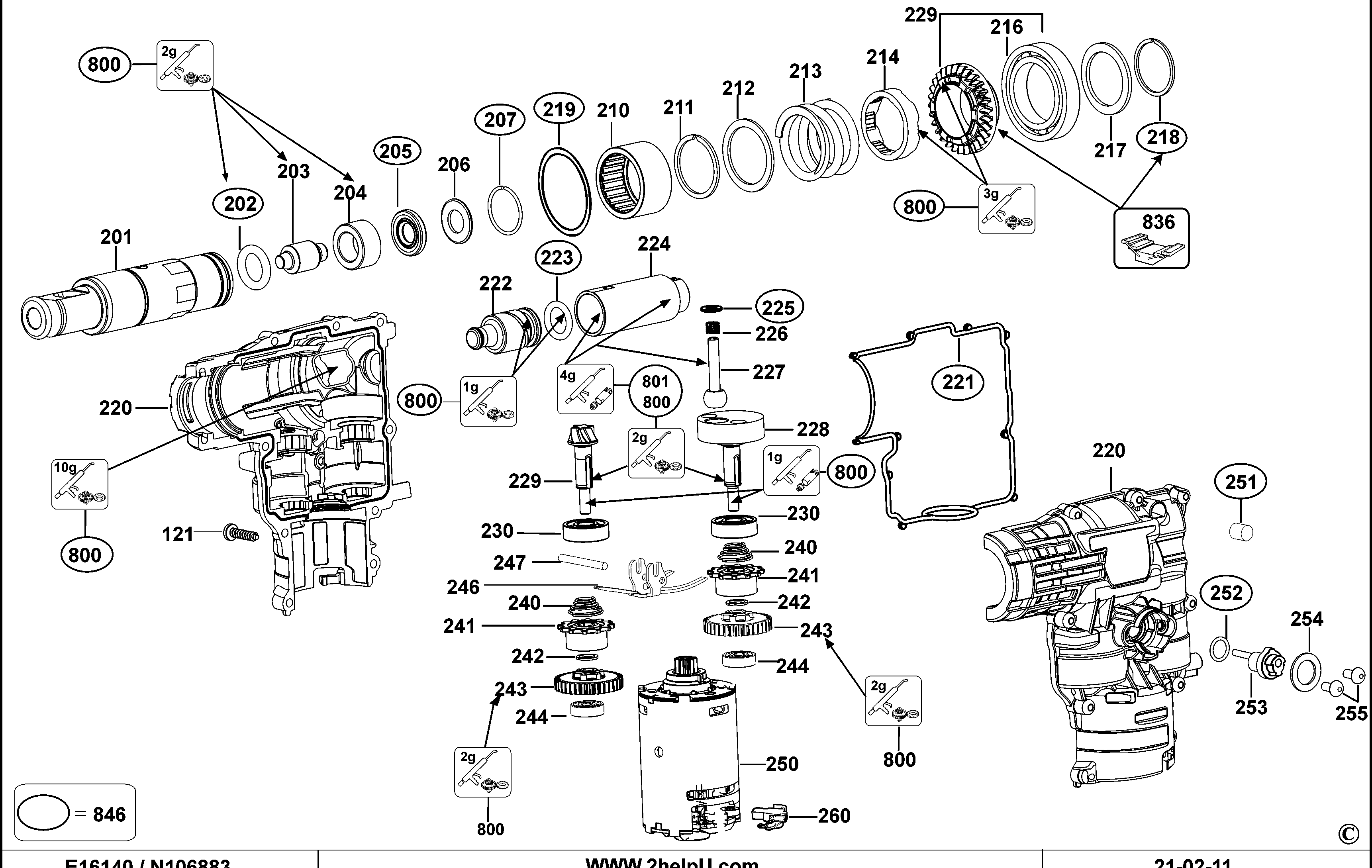

DCH213 ROTARY HAMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 323489-00 | 1 | CAP | TW | |||
| 102 | 579212-00 | 1 | RING | TW | |||
| 103 | N774198 | 1 | TUBE SA | TW | |||
| 103 | N910599 | 1 | TUBE | TW | |||
| 104 | 583890-00 | 1 | BALL | TW | |||
| 105 | 578387-00 | 1 | WASHER | TW | |||
| 106 | 871690 | 1 | SPRING | TW | |||
| 107 | 590306-00 | 1 | FELT SEAL | TW | |||
| 110 | 574937-00 | 1 | COVER | 3 mode | TW | ||
| 111 | 490785-00 | 1 | SLEEVE | TW | |||
| 112 | 575023-00 | 1 | SELECTOR | TW | |||
| 113 | 324006-16 | 1 | SCREW | TW | |||
| 114 | 478843-00 | 1 | SPRING | TW | |||
| 115 | 575026-00 | 1 | CAP | TW | |||
| 116 | 575024-00 | 1 | BUTTON RELEASE | TW | |||
| 120 | N123179 | 1 | CLAMSHELL PAIR | TW | |||
| 121 | 330065-08 | 21 | SCREW | M4x18 T20 | TW | ||
| 122 | N072124 | 1 | LEVER | TW | |||
| 123 | 575030-00 | 1 | SPRING | TW | |||
| 124 | 575032-00 | 2 | PIN | TW | |||
| 125 | 479313-00 | 1 | SPRING | TW | |||
| 127 | N123191 | 1 | LED LIGHT | TW | |||
| 128 | N160455 | 1 | SWITCH & PCB SA | TW | |||
| 130 | N094649 | 1 | PLATE | TW | |||
| 131 | N119679 | 1 | SPRING | TW | |||
| 132 | N122099 | 1 | BLOCK | TW | |||
| 160 | N112156 | 1 | HANDLE SIDE SA | TW | |||
| 170 | 580787-00 | 1 | DEPTH STOP | TW | |||
| 201 | 492807-00 | 1 | SPINDLE | NQCC | TW | ||
| 202 | 323711-02 | 1 | O RING | TW | |||
| 203 | 492808-00 | 1 | BEAT PIECE | NQCC | TW | ||
| 204 | 492809-00 | 1 | GUIDE BUSH | TW | |||
| 205 | N451068 | 1 | RETAINER | TW | |||
| 206 | 327087-00 | 1 | WASHER | TW | |||
| 207 | 323762-07 | 1 | RING | TW | |||
| 210 | 590302-00 | 1 | BEARING NEEDLE | TW | |||
| 211 | 488105-00 | 1 | CLIP | TW | |||
| 212 | 589350-00 | 1 | WASHER | TW | |||
| 213 | 589346-00 | 1 | SPRING | TW | |||
| 214 | 492817-00 | 1 | BUSH | TW | |||
| 216 | 479478-00 | 1 | BEARING,BALL | 6906 | TW | ||
| 217 | 589348-00 | 1 | WASHER | TW | |||
| 218 | 488390-00 | 1 | CLIP | SW26 1.5mm | TW | ||
| 219 | 491536-00 | 1 | O RING | TW | |||
| 220 | 492820-00 | 1 | HOUSING PAIR | 18 - 24v 3 Mode | TW | ||
| 221 | 478909-00 | 1 | SEAL | TW | |||
| 222 | N178363 | 1 | RAM SA | 19mm; Inc 222+223 | TW | ||
| 223 | 577168-00 | 1 | O RING | TW | |||
| 224 | 492822-00 | 1 | PISTON | TW | |||
| 225 | N108992 | 1 | WASHER | TW | |||
| 226 | 490286-00 | 1 | SPRING | TW | |||
| 227 | 492823-00 | 1 | BALL SPINDLE | TW | |||
| 228 | 492824-00 | 1 | CRANKSHAFT | TW | |||
| 229 | N071966 | 1 | REPAIR KIT | Inc 215, 229, 216 | TW | ||
| 230 | 477133-00 | 2 | BEARING,BALL | TW | |||
| 240 | N466046 | 2 | SPRING COMPRESSION | TW | |||
| 241 | 492826-00 | 2 | COLLAR | TW | |||
| 242 | 323763-10 | 2 | LOCKING RING | 8; | TW | ||
| 243 | N450704 | 2 | GEAR SA | TW | |||
| 244 | 330003-40 | 2 | BEARING | TW | |||
| 246 | 575022-00 | 1 | PLATE | TW | |||
| 247 | 590312-00 | 1 | PIN | TW | |||
| 250 | 492829-00 | 1 | MOTOR SA | 18V | TW | ||
| 251 | 582865-00 | 1 | FILTER | TW | |||
| 252 | 323711-34 | 1 | O RING | TW | |||
| 253 | 478898-00 | 1 | LEVER SA | TW | |||
| 254 | 577802-00 | 1 | WASHER SHIM | TW | |||
| 255 | 330065-04 | 2 | SCREW | TW | |||
| 260 | 493511-00 | 1 | BRUSH PAIR | TW | |||
| 800 | 870889-02 | 2 | GREASE | TW | |||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | TW | ||
| 818 | 493152-06 | 1 | LABEL | 18V | TW | ||
| 821 | N150551 | 1 | RATING PLATE | TW | |||
| 836 | 596005-99 | 1 | S.T.CIRCLIP REMOVER | TW | |||
| 836 | 596006-99 | 1 | S.T.CIRCLIP REMOVER | TW | |||
| 836 | 596007-99 | 1 | S.T.CIRCLIP INSERTER | TW | |||
| 846 | N178341 | 1 | SERVICE KIT | NQCC | TW | ||
| 861 | 576657-05 | 1 | KITBOX | TW | |||
| 871 | DCB101-NA | 1 | BATTERY CHARGER | TW |
