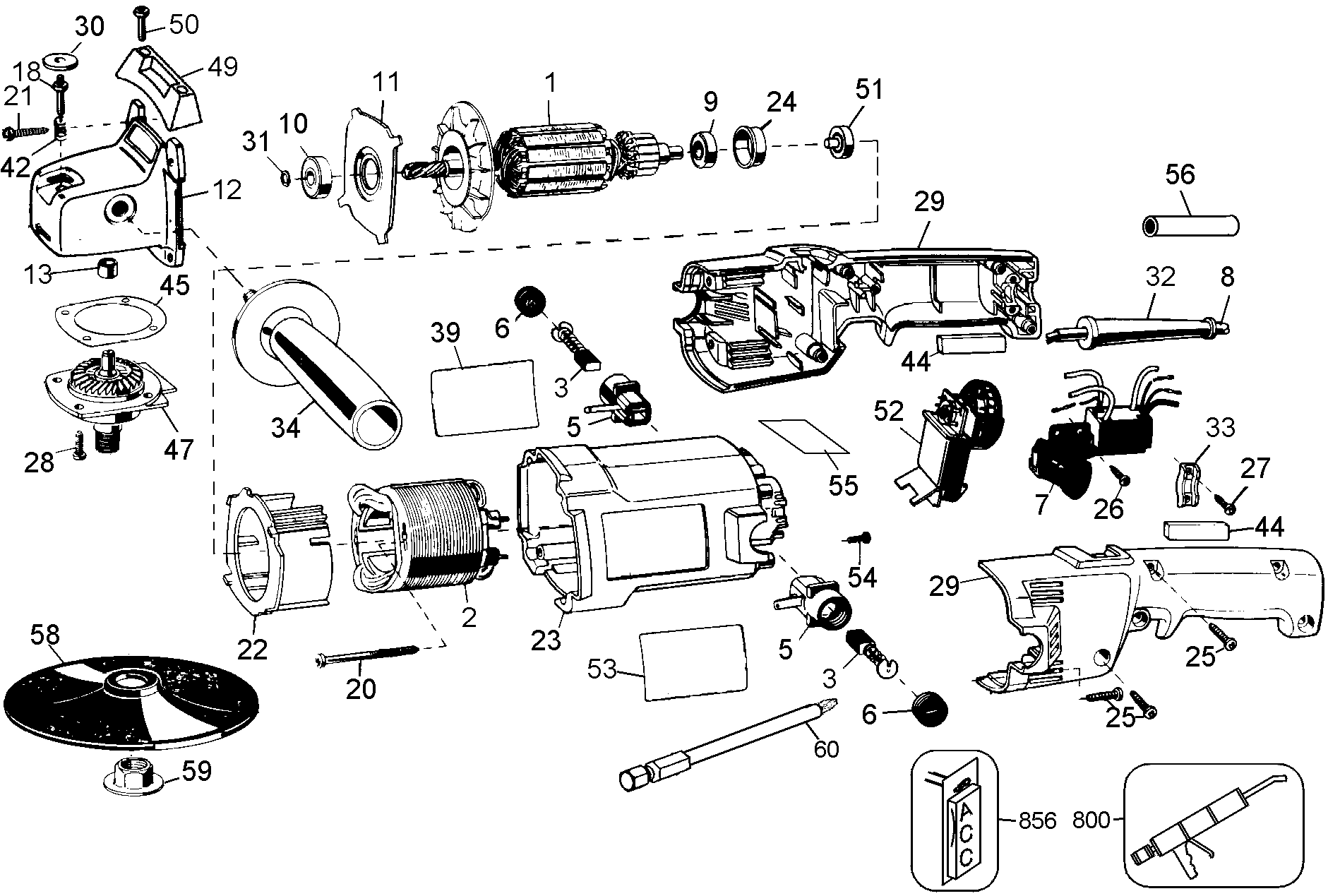

DW849 POLISHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 448519-06SV | 1 | ARMATURE 115V | 6 TEETH ;INC 9,10,11,31 | TW | ||
| 2 | 155467-00SV | 1 | FIELD | TW | |||
| 3 | 450374-12 | 2 | BRUSH & SPRING | TW | |||
| 5 | 448083-01 | 2 | BRUSHBOX SA | TW | |||
| 6 | 448084-01 | 2 | BRUSH CAP | TW | |||
| 7 | 450892-03 | 1 | SWITCH 115V | TW | |||
| 8 | 330113-01 | 1 | CORD | TW | TW | ||
| 9 | 330003-04 | 1 | BEARING | TW | |||
| 10 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | TW | ||
| 11 | 448079-00 | 1 | PLATE | TW | |||
| 12 | 448506-07SV | 1 | CASE-GEAR | INC 13 | TW | ||
| 13 | 449852-00 | 1 | SLEEVE BEARING | TW | |||
| 18 | 447827-00 | 1 | PIN | TW | |||
| 20 | 330044-23 | 2 | SCREW | TW | |||
| 21 | 330019-15 | 4 | SCREW | TW | |||
| 22 | 447786-00 | 1 | BAFFLE FAN | TW | |||
| 23 | 447799-08 | 1 | FIELDCASE | TW | |||
| 24 | 445217-02 | 1 | SLEEVE | TW | |||
| 25 | 330019-13 | 8 | SCREW | M4X19 T20 | TW | ||
| 26 | 330019-01 | 1 | SCREW.TEMP | M3.63 x 9.5mm T15 | TW | ||
| 27 | 330019-03 | 2 | SCREW | TW | |||
| 28 | 158472-00 | 4 | SCREW | TW | |||
| 29 | 151122-12 | 1 | HANDLE COVER | TW | |||
| 30 | 448127-01 | 1 | WASHER | TW | |||
| 31 | 696060-00 | 1 | RETAINER | TW | |||
| 32 | 148809-00 | 1 | CORD PROTECTOR | NPP | TW | ||
| 33 | 450877-00 | 1 | CORD CLAMP | TW | |||
| 34 | 086319-19 | 1 | SIDE HANDLE | TW | |||
| 39 | 000000-00 | 1 | NO LONGER AVAILABLE | TW | |||
| 42 | 448136-00 | 1 | SPRING | TW | |||
| 44 | 150844-00 | 2 | PAD | TW | |||
| 45 | 5140120-49 | 1 | GASKET | PCKG'D 143106-00 | USE 2 ON D/C 200432 ONLY | TW | |
| 47 | 449706-12SV | 1 | GEAR & SPINDLE | 5/8-11 THREAD | TW | ||
| 49 | 148622-00 | 1 | BUMPER | TW | |||
| 50 | 133895-00 | 2 | SCREW | TW | |||
| 51 | 148210-01 | 1 | MAGNET | TW | |||
| 52 | 138122-21 | 1 | MODULE | 115V | TW | ||
| 53 | 627212-00 | 1 | BRAND LABEL | DEWALT | TW | ||
| 54 | 330019-02 | 1 | SCREW | TW | |||
| 55 | 387680-00 | 1 | INSTR LABEL | TW | |||
| 56 | 150855-00 | 1 | TUBE | TW | |||
| 58 | DAJHXKMD01 | 1 | BACKING PAD | 7in x 5/8-11, MEDIUM | ACC | TW | |
| 59 | 636574-01 | 1 | CLAMP WASHER | 5/8-11 | TW | ||
| 60 | 233720-02 | 1 | BIT SCREWDRIVER | TW | |||
| 800 | 429698-00 | 1 | GREASE | BD-L 2 | TW | ||
| 856 | 384480-00 | 1 | BONNET POLISHING | TW |
