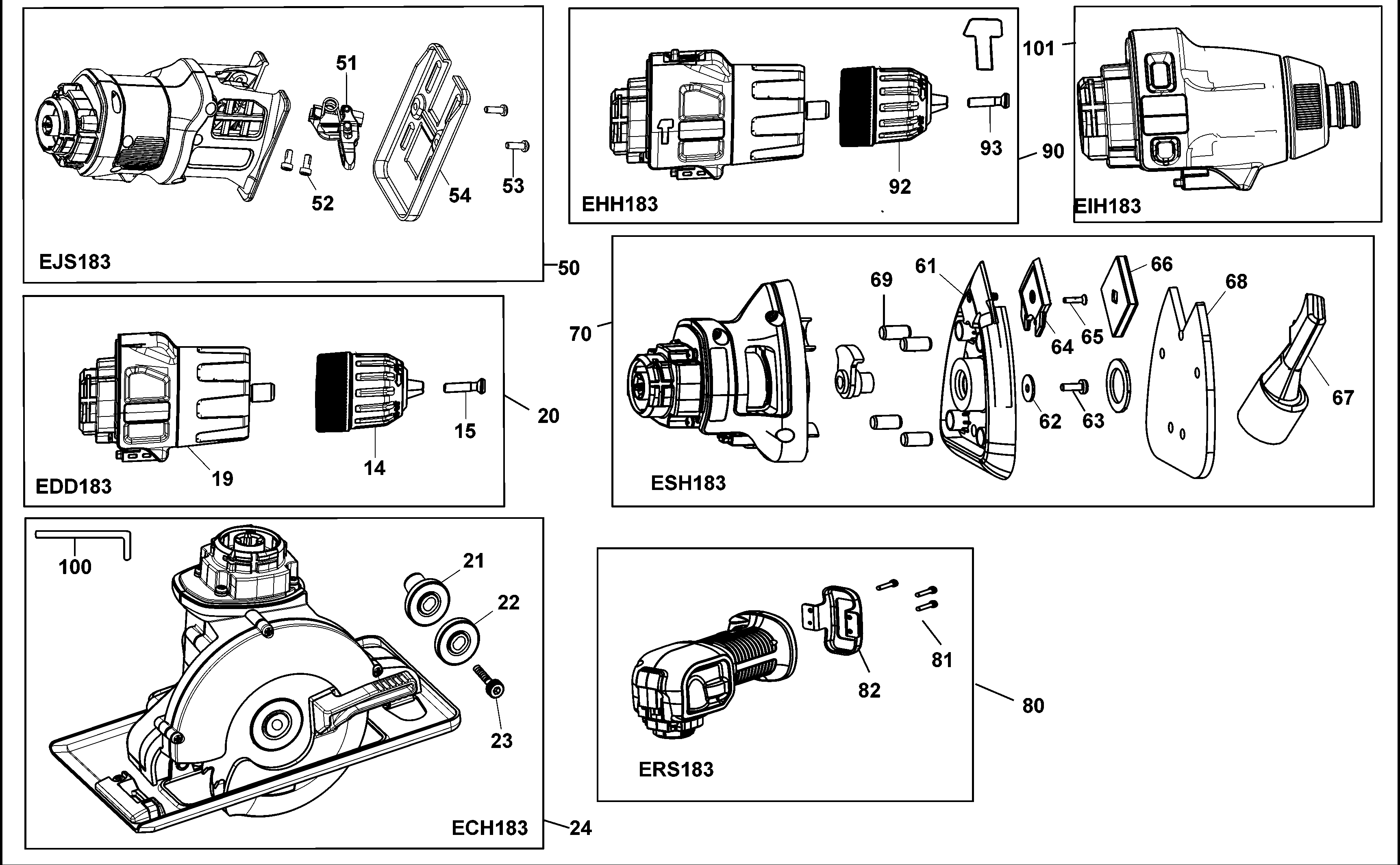

EVO185 MULTITOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5101046-00 | 3 | SCREW | TW | |||
| 2 | N870874 | 1 | HOUSING SA | TW | |||
| 3 | N792970 | 1 | SWITCH SA | TW | |||
| 4 | 90603536 | 1 | SPRING | TW | |||
| 5 | 90603537 | 1 | MOTOR SA | TW | |||
| 5 | N925309 | 1 | MOTOR SA | TW | |||
| 6 | 123456-11 | 1 | MAGNET | TW | |||
| 7 | 90566084 | 1 | SPRING CLIP | TW | |||
| 8 | N792963 | 1 | BUTTON | TW | |||
| 9 | N792964 | 1 | ACTUATOR FWD/REV | TW | |||
| 10 | 90570087 | 1 | SPRING TORSION | TW | |||
| 11 | 90605735 | 1 | PLATE LOCK | TW | |||
| 12 | 90570144-01 | 1 | LOCKING DEVICE | TW | |||
| 13 | 90584991 | 2 | INSERT | TW | |||
| 51 | 90580203 | 1 | CLAMP SA | EVO185B1 | TW | ||
| 52 | 90580204 | 2 | SCREW | EVO185B1 | TW | ||
| 53 | 90571363 | 2 | SCREW | EVO185B1 | TW | ||
| 54 | 90584688 | 1 | REST PLATE | EVO185B1 | TW | ||
| 61 | 90590472 | 1 | PLATEN | EVO185B1 | TW | ||
| 62 | 90572187 | 1 | WASHER | EVO185B1 | TW | ||
| 63 | 90607798 | 1 | SCREW | EVO185B1 | TW | ||
| 64 | 90569331 | 1 | TIP | EVO185B1 | TW | ||
| 65 | 90572188 | 1 | SCREW | EVO185B1 | TW | ||
| 66 | 90569329-01 | 1 | TIP | EVO185B1 | TW | ||
| 67 | 90569137 | 1 | VACUUM ADAPTOR | EVO185B1 | TW | ||
| 68 | 90569330-01 | 1 | BASE | EVO185B1 | TW | ||
| 69 | 90569286 | 4 | LEG | EVO185B1 | TW | ||
| 70 | 90567986-02 | 1 | HEAD SA | EVO185B1 | TW | ||
| 90 | 90588360-01 | 1 | HEAD SA | TW | |||
| 92 | 90585659 | 1 | CHUCK KEYLESS | TW | |||
| 93 | 149518-01 | 1 | SCREW | TW | |||
| 100 | 497570-02 | 1 | KEY | 4mm | TW | ||
| 104 | 5100035-03 | 2 | SPRING | TW | |||
| 105 | 5101046-01 | 5 | SCREW | TW | |||
| 106 | N870842 | 1 | WARNING LABEL | TW | |||
| 821 | N870446 | 1 | RATING LABEL | TW | |||
| 866 | N850165 | 1 | BATTERY PACK | TW | |||
| 871 | N510670 | 1 | CHARGER SA | TW |
