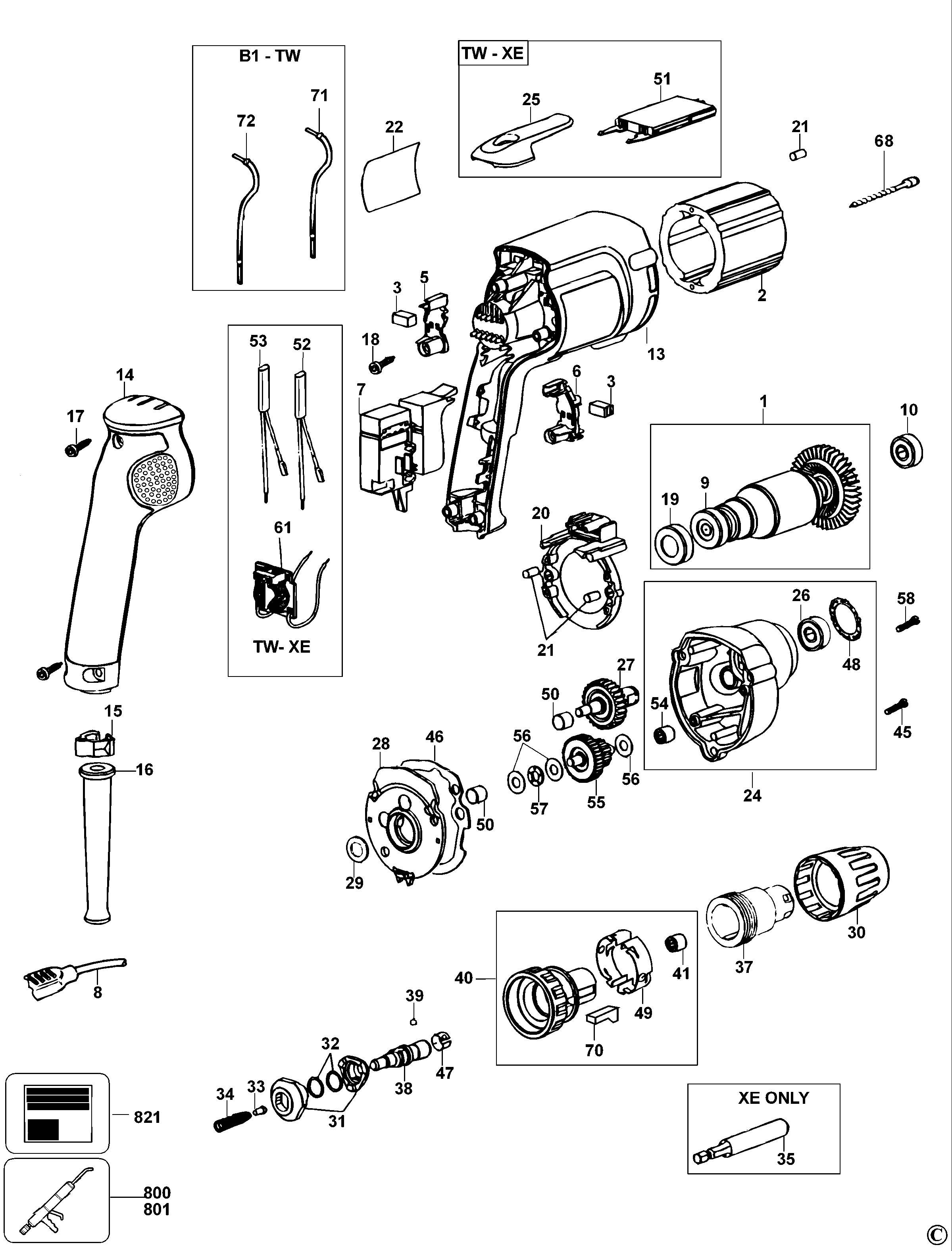

DW266 螺絲起子 Type 4 | 分解圖
文件資料
零件清單
保存PDF
全頁瀏覽
| 件號. | 產品型號 | 數量 | 品名 | 一般說明 | 其他資訊 | 市場 | 產品狀態 |
|---|---|---|---|---|---|---|---|
| 1 | 176853-00 | 1 | 轉子及風扇 | TW | |||
| 2 | 176849-00 | 1 | 定子 | TW | |||
| 3 | 176846-04 | 2 | 碳刷 120V | TW | |||
| 5 | 176801-03 | 1 | 碳刷架 | TW | |||
| 6 | 176800-03 | 1 | 碳刷架 | TW | |||
| 7 | 176830-19 | 1 | 開關 | TW | |||
| 8 | 330113-22 | 1 | 電源線 | 18-2 ST | TW | ||
| 9 | 330003-04 | 1 | 軸承 | TW | |||
| 10 | 330003-04 | 1 | 軸承 | TW | |||
| 13 | 396969-07 | 1 | 定子外殼 | TW | |||
| 14 | 176816-01 | 1 | 手柄蓋 | TW | |||
| 15 | 176829-00 | 1 | 電源線夾具 | TW | |||
| 16 | 330005-01 | 1 | 電線保護裝置 | TW | |||
| 17 | 330019-13 | 3 | 螺絲 | M4X19 T20 | TW | ||
| 18 | 176951-00 | 2 | 螺絲 | TW | |||
| 19 | 389824-00 | 1 | BOOT | TW | |||
| 20 | 176811-00 | 1 | 檔板 | TW | |||
| 21 | 949638-02 | 2 | 防震橡皮柱 | TW | |||
| 22 | 395047-00 | 1 | 商標 | TW | |||
| 24 | 176709-00 | 1 | 齒輪箱 | TW | |||
| 26 | 605040-20 | 1 | 軸承 | 12 x 28 x 8mm | TW | ||
| 27 | 176708-00SV | 1 | 轉軸與齒輪 | TW | |||
| 28 | 388761-00 | 1 | 齒輪箱蓋 | TW | |||
| 29 | 23813-00 | 1 | 墊圈 | TW | |||
| 30 | 152492-01 | 1 | 軸承 | TW | |||
| 31 | 603478-00 | 2 | 離合器 | TW | |||
| 32 | 089210-00 | 2 | 軸承套圈 | TW | |||
| 33 | 021287-00 | 1 | 導引器 | TW | |||
| 34 | 86211-00 | 1 | 彈簧 | TW | |||
| 37 | 448862-01 | 1 | 定位器 | 5/16 Nut Runner | TW | ||
| 37 | 448862-00 | 1 | 定位器 | 3/8 Nut Runner | TW | ||
| 38 | 176697-00 | 1 | 主軸 | TW | |||
| 39 | 696631-00 | 1 | 鋼珠 | TW | |||
| 40 | 176632-01 | 1 | 外殼 | TW | |||
| 41 | 448848-00 | 1 | 套筒式軸承 | TW | |||
| 45 | 330019-14 | 1 | 螺絲 | TW | |||
| 46 | 176655-00 | 1 | 墊圈 | TW | |||
| 47 | 94518-00 | 1 | 軸承套圈 | TW | |||
| 48 | 087692-00 | 1 | 軸承套圈 | TW | |||
| 49 | 391436-00 | 2 | 彈簧 | TW | |||
| 50 | 93128-00 | 2 | 軸承滾針 | TW | |||
| 51 | 176917-00 | 1 | 齒輪模數 | TW | |||
| 52 | 176890-01 | 1 | LEAD RED | TW | |||
| 53 | 176890-00 | 1 | LEAD WHITE | TW | |||
| 54 | 93129-00 | 1 | 軸承滾針 | TW | |||
| 55 | 176731-00SV | 1 | 轉軸與齒輪 | TW | |||
| 56 | 176732-00 | 3 | 墊圈 | TW | |||
| 57 | 143079-00 | 1 | 止推軸承 | TW | |||
| 58 | 330019-16 | 2 | 螺絲 | TW | |||
| 61 | 383670-00 | 1 | 電容器 | TW | |||
| 70 | 397710-00 | 1 | 端子線 | ORANGE | TW | ||
| 71 | 397708-00 | 1 | 端子線 | PURPLE | TW | ||
| 800 | 69542-00 | 1 | 潤滑油 | TW | |||
| 800 | 761995-01 | 1 | 潤滑油 | 180 Grams | TW | ||
| 800 | 761995-01 | 1 | 潤滑油 | 180 Grams | TW | ||
| 800 | 283484-01 | 1 | 潤滑油 | 32oz, EXXON CVJ | TW | ||
| 821 | N028501 | 1 | 銘牌 | DW266-TW TYPE A4 | TW | ||
| 821 | 616127-00 | 1 | 銘牌 | A3 | TW |
