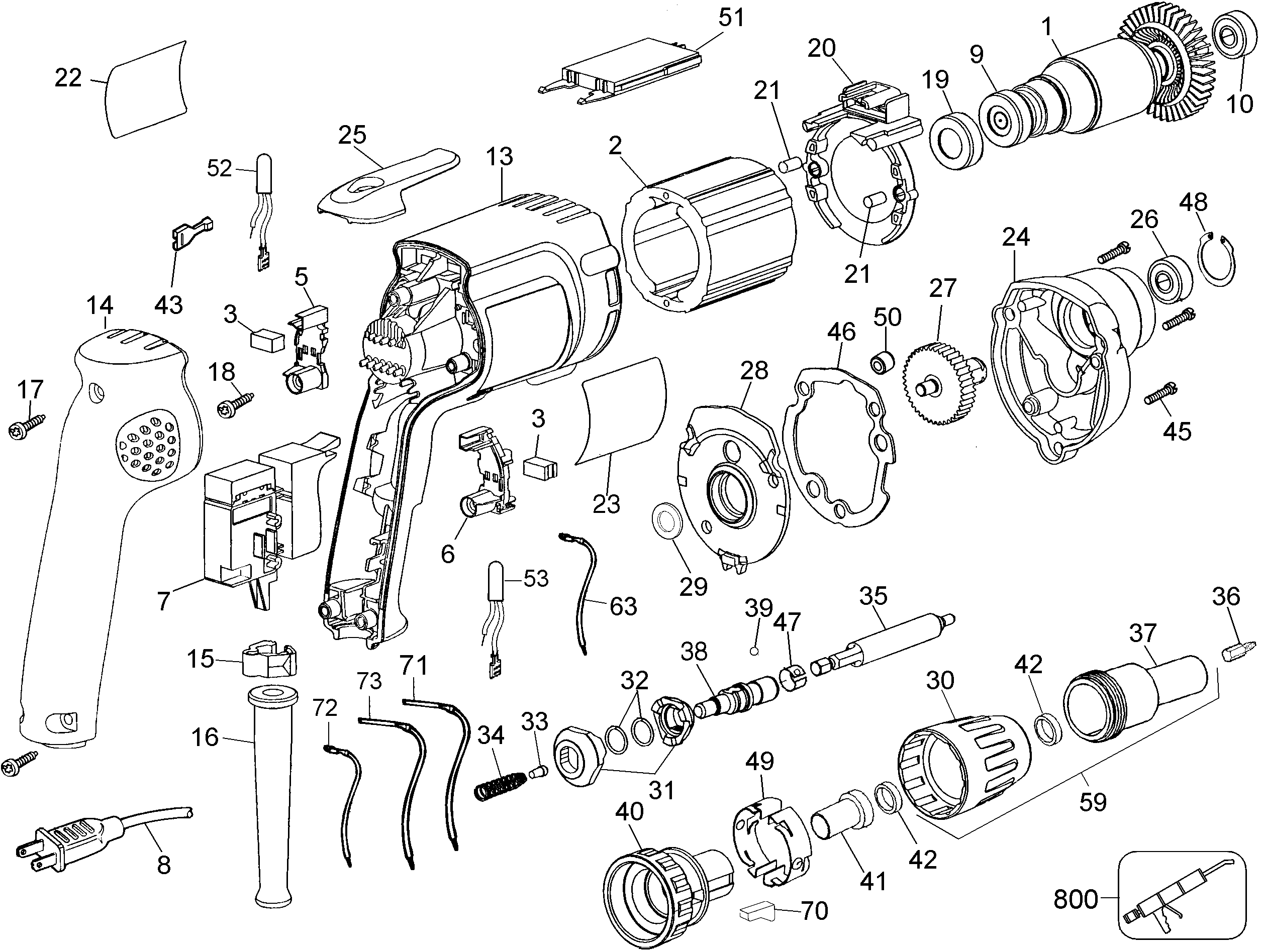

DW272 螺絲起子 Type A2 | 分解圖
文件資料
零件清單
保存PDF
全頁瀏覽
| 件號. | 產品型號 | 數量 | 品名 | 一般說明 | 其他資訊 | 市場 | 產品狀態 |
|---|---|---|---|---|---|---|---|
| 1 | 176851-00 | 1 | 轉子及風扇 | TW | |||
| 2 | 176849-00SV | 1 | 定子 | TW | |||
| 3 | 176949-01 | 1 | 碳刷 | 115V | TW | ||
| 5 | 176801-03 | 1 | 碳刷架 | TW | |||
| 6 | 176800-03 | 1 | 碳刷架 | TW | |||
| 7 | 176830-19 | 1 | 開關 | TW | |||
| 8 | 330113-22 | 1 | 電源線 | 18-2 ST | 18-2ST | TW | |
| 9 | 330003-04 | 1 | 軸承 | TW | |||
| 10 | 330003-04 | 1 | 軸承 | TW | |||
| 13 | 396969-07 | 1 | 定子外殼 | TW | |||
| 14 | 176816-01 | 1 | 手柄蓋 | TW | |||
| 15 | 176829-00 | 1 | 電源線夾具 | TW | |||
| 16 | 148809-00 | 1 | 電線保護裝置 | NPP | FOR 'S' CORDS | TW | |
| 17 | 330019-13 | 3 | 螺絲 | M4X19 T20 | TW | ||
| 18 | 176951-00 | 2 | 螺絲 | TW | |||
| 19 | 389824-00 | 1 | BOOT | TW | |||
| 20 | 176811-00 | 1 | 檔板 | TW | |||
| 21 | 949638-02 | 3 | 防震橡皮柱 | TW | |||
| 22 | 395047-00 | 1 | 商標 | TW | |||
| 23 | 604459-00 | 1 | NAME 板 | TW | |||
| 24 | 176624-00SV | 1 | 齒輪箱 | INC 26, 48 | TW | ||
| 25 | N045425 | 1 | 夾具 | TW | |||
| 26 | 605040-20 | 1 | 軸承 | 12 x 28 x 8mm | TW | ||
| 27 | 638982-00SV | 1 | 轉軸與齒輪 | 47 TEETH | TW | ||
| 28 | 386622-00 | 1 | 齒輪箱蓋 | TW | |||
| 29 | 023813-00 | 1 | 纖維墊圈 | TW | |||
| 30 | 152492-01 | 1 | 軸承 | TW | |||
| 31 | 96558-00 | 2 | 離合器 | INC 32 | TW | ||
| 32 | 089210-00 | 2 | 軸承套圈 | TW | |||
| 33 | 021287-00 | 1 | 導引器 | TW | |||
| 34 | 86211-00 | 1 | 彈簧 | TW | |||
| 35 | N449701 | 1 | 鑽頭夾持器 | TW | |||
| 36 | 607904-22 | 1 | 螺絲起子鑽頭 | DRYWALL PR2 | TW | ||
| 37 | 612001-00SV | 1 | 定位器 | INC 42 | TW | ||
| 38 | 176697-00 | 1 | 主軸 | TW | |||
| 39 | 696631-00 | 1 | 鋼珠 | TW | |||
| 40 | N740053 | 1 | 離合器總成 | PKGD 176632-00 | INC 41, 42, 49, 70 | TW | |
| 41 | 450907-00 | 1 | 套筒 | TW | |||
| 42 | 696534-00 | 2 | 防塵墊 | TW | |||
| 43 | 136086-02 | 2 | 端子 | TW | |||
| 45 | 330019-14 | 3 | 螺絲 | TW | |||
| 46 | 176655-00 | 1 | 墊圈 | TW | |||
| 47 | 094518-00 | 1 | 軸承套圈 | TW | |||
| 48 | 087692-00 | 1 | 軸承套圈 | TW | |||
| 49 | 391436-00 | 2 | 彈簧 | TW | |||
| 50 | 093128-00 | 1 | 軸承滾針 | TW | |||
| 51 | 176917-00 | 1 | 齒輪模數 | TW | |||
| 52 | 176890-00 | 1 | LEAD WHITE | TW | |||
| 53 | 176890-01 | 1 | LEAD RED | TW | |||
| 59 | 429561-00 | 1 | 凸緣件 | TW | |||
| 63 | 176834-00 | 1 | LEAD BLUE | TW | |||
| 70 | 390437-01 | 2 | 插頭 | TW | |||
| 71 | 176892-00 | 1 | LEAD PURPLE | TW | |||
| 72 | 176894-00 | 1 | LEAD ORANGE | TW | |||
| 73 | 176893-00 | 1 | LEAD BLACK | TW | |||
| 800 | 283484-01 | 1 | 潤滑油 | 32oz, EXXON CVJ | TW | ||
| 800 | 761995-01 | 1 | 潤滑油 | 180 Grams | 6 OZ | CVJ GREASE | TW | |
| 800 | N017298 | 1 | 潤滑油 | G-2008 Molykote | 1-LB | TW |
