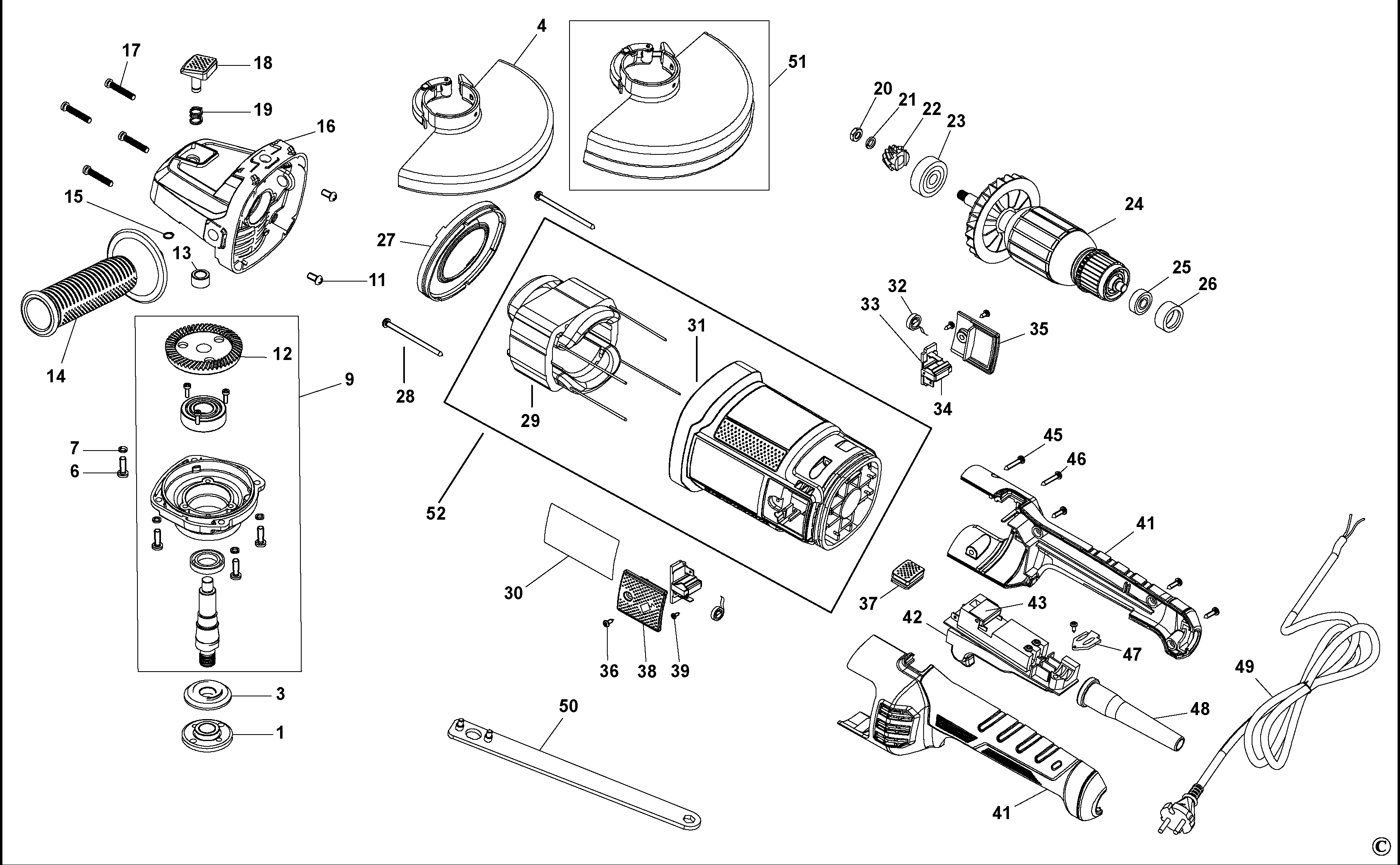

BPGL2209 ANGLE GRINDER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	1004684-04	1	FLANGE			B5
3	1004684-05	1	NUT			B5
4	1004684-06	1	GUARD 9"			B5
6	1004684-07	4	SCREW	M5 x 18mm		B5
7	1004684-08	4	WASHER			B5
9	1004684-09	1	GEARCASE SA			B5
11	1004684-10	2	SCREW			B5
12	1004684-15	1	GEAR			B5
13	1004684-16	1	BEARING			B5
14	1004684-17	1	HANDLE			B5
15	1004684-18	1	RING			B5
16	1004684-19	1	GEARBOX			B5
17	1004684-20	4	SCREW			B5
18	1004684-21	1	BUTTON STOP			B5
19	1004684-22	1	SPRING			B5
20	1004684-23	1	NUT			B5
21	1004684-24	1	WASHER SPRING	ø8		B5
22	1004684-25	1	PINION			B5
23	1004684-26	1	BEARING			B5
24	1004684-27	1	ARMATURE			B5
25	1004684-28	1	BEARING			B5
26	1004684-29	1	BEARING SET			B5
27	1004684-30	1	BAFFLE FAN			B5
28	1004684-31	2	SCREW			B5
29	1004684-32	1	STATOR			B5
30	6010355-07	1	RATING LABEL			B5
31	1004684-34	1	HOUSING			B5
32	1004684-35	2	SPRING BRUSH			B5
33	1004684-36	2	BRUSH HOLDER			B5
34	1004684-37	1	BRUSH PAIR		1 Pair	B5
35	1004684-38	1	BRUSH CAP			B5
36	1004684-39	2	SCREW			B5
37	1004684-40	1	RUBBER			B5
38	1004684-41	1	BRUSH CAP			B5
39	1004684-42	2	SCREW	ST2.9 x 6mm		B5
41	1004684-44	1	HANDLE SA			B5
42	1004684-45	1	SWITCH LOCK OFF			B5
43	1004684-46	1	CAPACITOR			B5
45	1004684-47	2	SCREW	ST4.0 x 38mm		B5
46	1004684-48	3	SCREW	ST4.0 x 16mm		B5
47	1004684-49	1	CORD CLAMP			B5
48	1004684-50	1	CORD PROTECTOR			B5
49	6010355-10	1	CORDSET			B5
50	1004684-53	1	WRENCH SPECIAL			B5
51	1004684-54	1	GUARD 9"			B5
52	1004732-38	1	FIELD SA	Inc. HOUSING		B5
