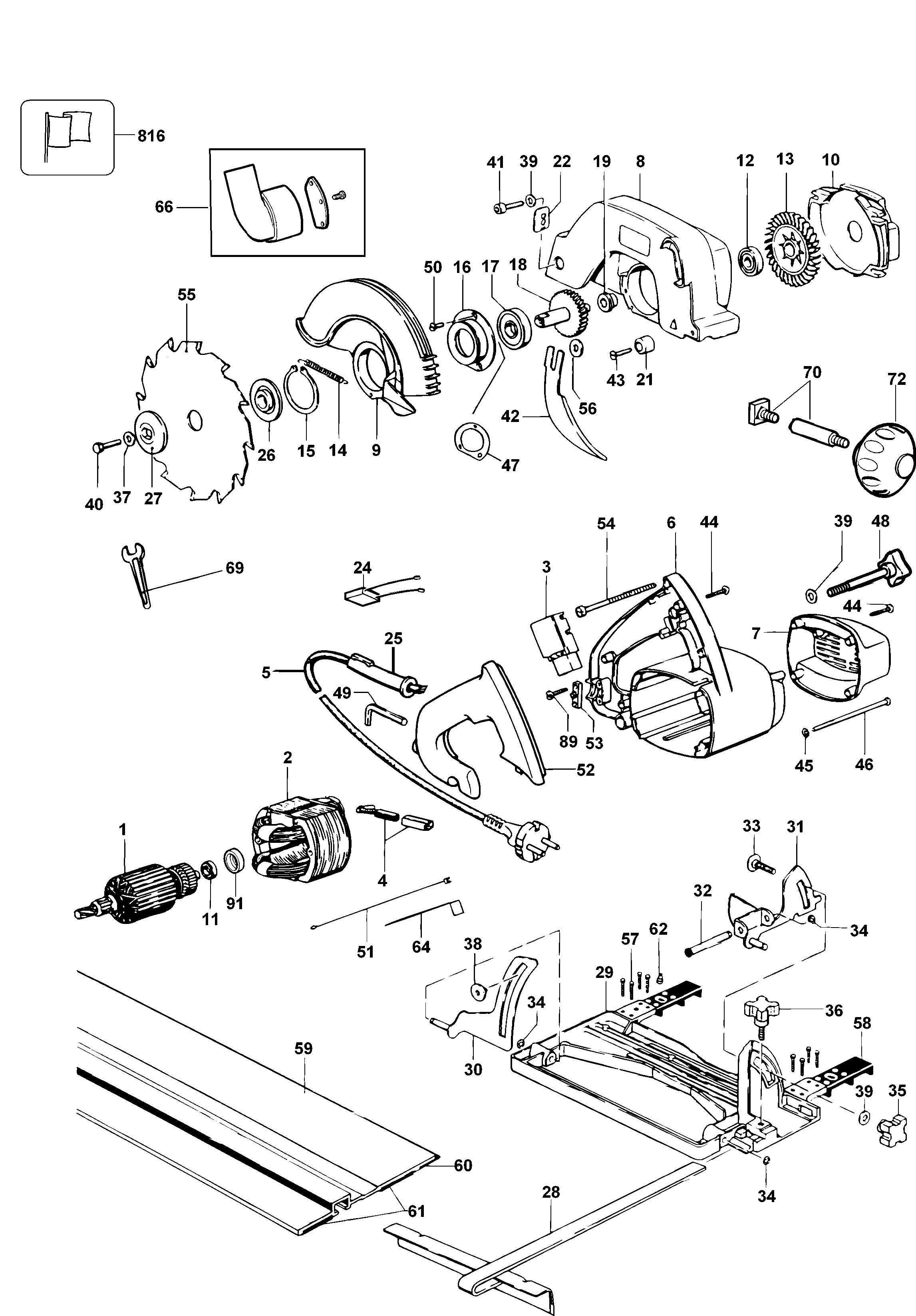

DW351 CIRCULAR SAW Type 6 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 487031-50 | 1 | ARMATURE 115V | 115V | XD |  |
|
| 1 | 487030-50 | 1 | ARMATURE KIT 220 | 230V | XD | |
|
| 2 | 151102103 | 1 | FIELD 115V | 115V | XD | |
|
| 2 | 151102102 | 1 | FIELD 220V | 230V | XD | |
|
| 3 | 590976-00 | 1 | SWITCH | XD | |
||
| 4 | 247405-00 | 2 | BRUSH HOLDER | 115V | XD | |
|
| 4 | 247059-00 | 2 | BRUSH HOLDER | 230V | XD | |
|
| 5 | 378990 | 1 | CORDSET | GB 115V | XD | ||
| 5 | 379091 | 1 | CORDSET (EURO) | QS | XD | |
|
| 5 | 379092 | 1 | CORDSET | GB 240V | XD | |
|
| 5 | 949770-06 | 1 | CABLE & PLUG | XD | |
||
| 6 | 487015-01 | 1 | MOTOR HOUSING SA | Yellow | XD | |
|
| 7 | 247054-15 | 1 | END CAP | XD | |
||
| 8 | 941052-00 | 1 | GEARCASE | XD | |
||
| 9 | 940970-01 | 1 | GUARD | XD | |
||
| 10 | 151123701 | 1 | COVER | XD | |
||
| 11 | N110358 | 1 | BEARING | XD |  |
||
| 12 | 143830000 | 2 | BEARING | XD | |
||
| 13 | 151130500 | 1 | FAN | XD | |
||
| 14 | 248813-00 | 1 | SPRING | XD | |
||
| 15 | 860079-05 | 1 | CIRCLIP | XD | |
||
| 16 | 248888-00 | 1 | BEARING SA | XD | |
||
| 17 | 247571-00 | 1 | BEARING | XD | |
||
| 18 | 329563-00 | 1 | GEAR SA | XD | |
||
| 19 | 151980150 | 1 | BEARING SINTER | XD | |
||
| 21 | 761306-00 | 1 | BUMPER | XD | |
||
| 22 | 940969-51 | 1 | PLATE | XD | |
||
| 24 | 321384 | 1 | CAPACITOR | XD | |
||
| 25 | 916969 | 1 | PROTECTOR | XD | |
||
| 26 | 151155400 | 1 | CLAMP | XD | |
||
| 27 | 379342 | 1 | WASHER OUTER CLAMP | XD | |
||
| 28 | 249226-00 | 1 | FENCE | XD | |
||
| 29 | 151115101 | 1 | BASE | XD | |
||
| 30 | 248864-00 | 1 | SWIVEL SUPPORT | XD | |
||
| 31 | 378929-00 | 1 | BRACKET SA | XD | |
||
| 32 | 249107-00 | 1 | SPINDLE | XD | |
||
| 33 | 249406-00 | 1 | SCREW | XD | |
||
| 34 | 860322-03 | 3 | CIRCLIP | XD | |
||
| 35 | 744324 | 1 | KNOB SA | XD | |||
| 36 | 744325 | 1 | SCREW.SPECIAL | XD | |
||
| 37 | 249092-20 | 1 | WASHER | XD | |
||
| 38 | 151112400 | 1 | NUT | XD | |
||
| 39 | 249221-00 | 3 | WASHER | XD | |
||
| 40 | 249409-00 | 1 | SCREW | XD | |
||
| 41 | 249408-10 | 1 | SCREW | XD | |
||
| 42 | 248863-00 | 1 | RIVING KNIFE | XD | |
||
| 43 | 249403-00 | 1 | SCREW | XD | |
||
| 44 | 949896-12 | 6 | SCREW | XD | |
||
| 45 | 093820600 | 4 | WASHER LOCK | XD | |
||
| 46 | 101811100 | 4 | SCREW | XD | |
||
| 47 | 247525-00 | 1 | GASKET | XD | |
||
| 48 | 248866-00 | 1 | SCREW WING | XD | |
||
| 49 | 725927 | 1 | HEX KEY 5 MM | XD | |
||
| 50 | 720685-00 | 3 | SCREW.TEMP | XD | |
||
| 51 | 157164500 | 2 | LEAD 245MM RED | XD | |
||
| 52 | 324617-11 | 1 | COVER | Yellow | XD | |
|
| 53 | 378975 | 1 | CABLE CLAMP | XD | |
||
| 54 | 868528-00 | 2 | SCREW | XD | |
||
| 56 | 142930194 | 1 | WASHER | XD | |
||
| 57 | 249416-06 | 8 | SCREW | XD | |
||
| 58 | 249116-00 | 2 | LUG | XD | |
||
| 59 | 151237700 | 1 | GUIDE | XD | |
||
| 60 | 088207057 | 1 | RUBBER STRIP 20X1500 | XD | |||
| 61 | 088207058 | 2 | RUBBER STRIP 30X1500 | XD | |
||
| 62 | 249119-00 | 1 | ECCENTRIC | XD | |
||
| 64 | 247335-00 | 2 | LEAD 100MM RED | XD | |
||
| 66 | 248021-00 | 1 | EXTRACTOR | XD | |
||
| 69 | 080351300 | 1 | SPANNER 10MM | XD | |
||
| 70 | 378295 | 1 | SPINDLE SA | XD | |
||
| 72 | 379019 | 1 | KNOB | XD | |
||
| 89 | 249416-06 | 2 | SCREW | XD | |
||
| 91 | 935030 | 1 | SLEEVE | XD | |
||
| 816 | 329307-00 | 1 | BRAND LABEL | XD | |
