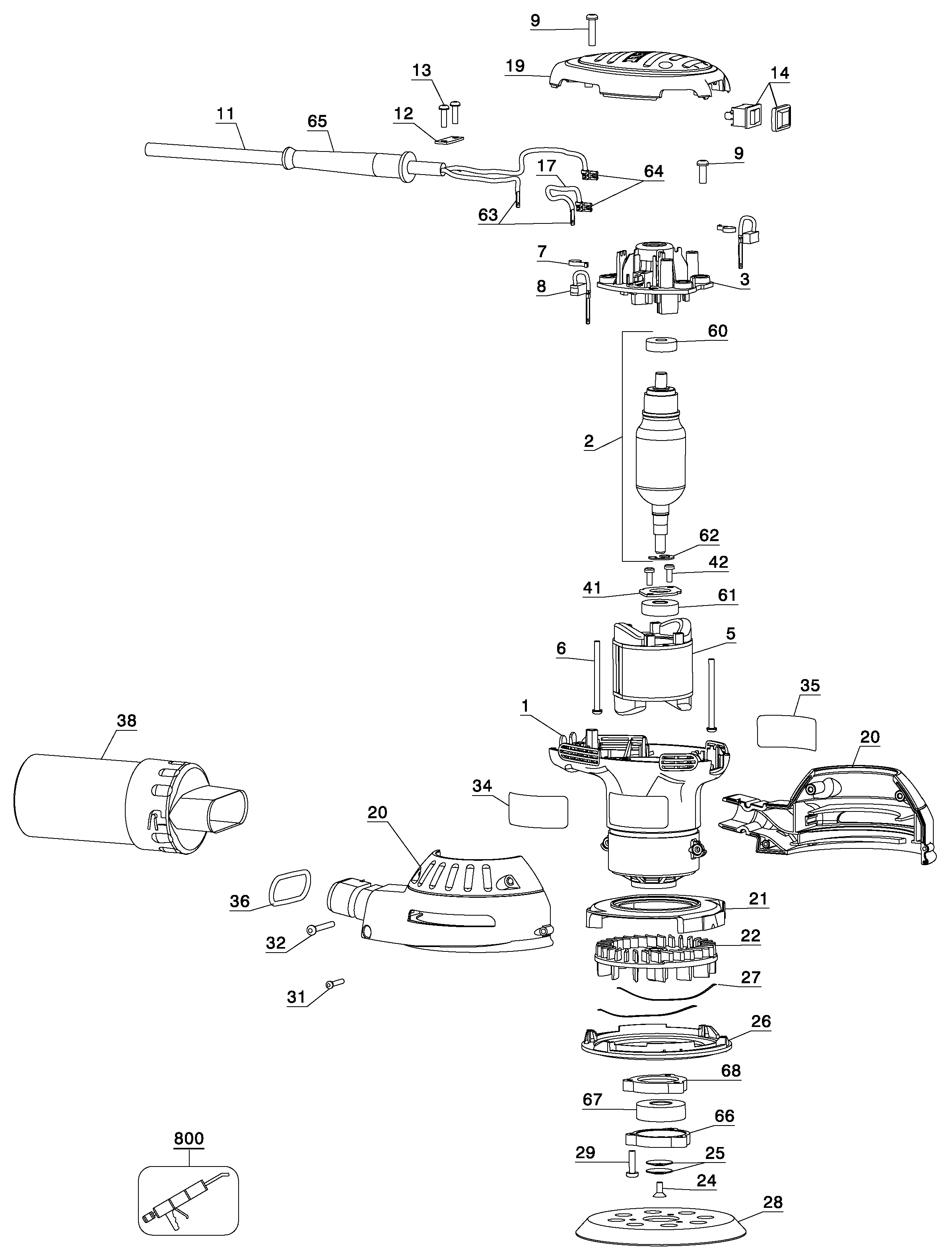

D26451 RANDOM ORBITAL SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 623832-00 | 1 | FIELDCASE | B1 | |||
| 2 | 624309-01SV | 1 | ARMATURE SA | B1 | |||
| 3 | 627401-00SV | 1 | BEARING SUPPORT | B1 | |||
| 5 | N378009 | 1 | FIELD SA | 230v | B1 | ||
| 6 | 330019-09 | 2 | SCREW | M3.63x50 T15 | B1 |  |
|
| 7 | 445860-00 | 2 | BRUSH SPRING | B1 |  |
||
| 8 | 445861-19 | 2 | BRUSH | B1 | |||
| 9 | 330019-11 | 7 | SCREW | M4.55x13 T20 | B1 | |
|
| 11 | 635509-03 | 1 | CORDSET | B1 | |||
| 12 | 329301-00 | 1 | CORD CLAMP | B1 | |
||
| 13 | 330019-02 | 2 | SCREW | B1 | |
||
| 14 | 656494-00 | 1 | SWITCH | B1 | |
||
| 17 | 144989-00 | 1 | TERMINAL & LEAD | BLACK, 20GA | B1 | |
|
| 19 | 624281-00 | 1 | CAP | NON VS | B1 | ||
| 20 | 628817-00 | 1 | SHROUD | B1 | |||
| 21 | 624240-00 | 1 | BAFFLE | B1 | |
||
| 22 | 624235-01 | 1 | FAN | B1 | |
||
| 24 | 098012-11 | 1 | SCREW | B1 | |
||
| 25 | 151652-00 | 2 | WASHER | B1 | |
||
| 26 | 624302-00 | 1 | BRAKE | B1 | |
||
| 27 | 151442-02 | 2 | LEAF SPRING | B1 | |
||
| 28 | 151281-08 | 1 | PAD | H&L, 5IN, MEDIUM | B1 | |
|
| 29 | 146929-01 | 3 | SCREW | 8-32x5/8 THD FMG | B1 | |
|
| 31 | 330019-24 | 1 | SCREW | B1 | |
||
| 32 | 330019-59 | 3 | SCREW | M3.5x35 PLSTC THDFMG | B1 | |
|
| 34 | 398399-00 | 1 | BRAND LABEL | B1 | |
||
| 35 | 652753-00 | 1 | RATING PLATE | D26451-B1 T1 | B1 | ||
| 36 | 56194-00 | 1 | O RING | B1 | |
||
| 38 | 624307-00 | 1 | DUSTBAG | B1 | |
||
| 41 | 632116-00 | 1 | BEARING PLATE | B1 | |||
| 42 | 330019-01 | 2 | SCREW.TEMP | M3.63 x 9.5mm T15 | B1 | |
|
| 60 | 605040-05 | 1 | BEARING | B1 | |
||
| 61 | 330003-17 | 1 | BEARING | B1 | |||
| 62 | 151669-00 | 1 | CIRCLIP | B1 | |
||
| 63 | 825209-00 | 2 | CONNECTOR | B1 | |
||
| 64 | 445964-00 | 2 | TERMINAL | B1 | |
||
| 65 | 330005-01 | 1 | CORD PROTECTOR | B1 | |
||
| 66 | 603637-00 | 1 | RETAINER | B1 | |
||
| 67 | N110363 | 1 | BEARING | B1 | |
||
| 68 | 603664-00 | 1 | RETAINER | B1 | |
||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | B1 | |
|
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B1 |
