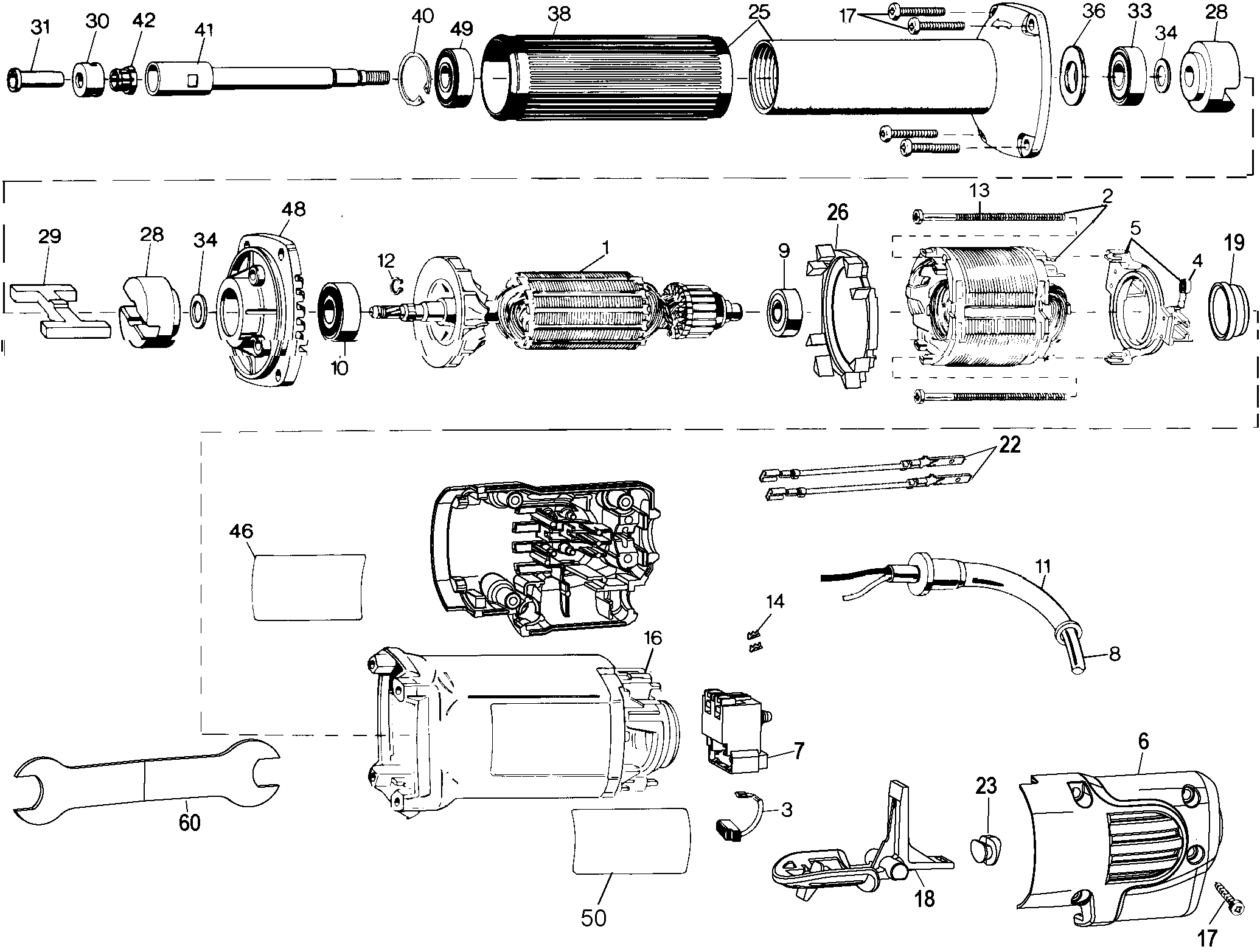

DW887N DIE GRINDER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 618806-00SV | 1 | ARMATURE 220V | B5 |  |
||
| 2 | 619023-00SV | 1 | FIELD 220V | B5 | |
||
| 3 | 445861-30 | 2 | BRUSH 220V | B5 |  |
||
| 4 | 445860-00 | 2 | BRUSH SPRING | B5 | |
||
| 5 | 449899-05 | 1 | RING | Inc. 4 | B5 | |
|
| 6 | N107382 | 1 | END CAP | SET | B5 | |
|
| 7 | 625238-00 | 1 | SWITCH | B5 | |||
| 8 | N135747 | 1 | CORDSET | EURO | B5 | |
|
| 9 | 330003-04 | 1 | BEARING | B5 | |||
| 10 | 605040-15 | 1 | BEARING,BALL | NPP | B5 | |
|
| 11 | 330005-01 | 1 | CORD PROTECTOR | B5 | |
||
| 12 | 444793-00 | 1 | CIRCLIP | B5 | |
||
| 13 | 445880-00 | 2 | SCREW | B5 | |
||
| 14 | 464228-00 | 2 | TERMINAL | B5 | |
||
| 16 | 445857-03 | 1 | FIELDCASE | Inc.22 | B5 | |
|
| 17 | 330019-13 | 8 | SCREW | M4X19 T20 | B5 | |
|
| 18 | 397655-00SV | 1 | PADDLE | B5 | |
||
| 19 | 445217-01 | 1 | SLEEVE | B5 | |
||
| 22 | N115041 | 2 | LEAD SA | WHITE | B5 | |
|
| 23 | N110834 | 1 | PLUG | B5 | |
||
| 25 | 384432-00SV | 1 | HOUSING | Inc. 38 | B5 | |
|
| 26 | 445876-00 | 1 | BAFFLE | B5 | |
||
| 28 | 5140246-36 | 1 | COUPLING | INCL. SPIDER | B5 | |
|
| 29 | 5140246-36 | 1 | COUPLING | INCL. SPIDER | B5 | |
|
| 30 | 034808-00 | 1 | BUSH | B5 | |
||
| 31 | 021955-00 | 1 | SLEEVE | NOT INCLUDED | B5 | |
|
| 33 | 605040-15 | 1 | BEARING,BALL | NPP | B5 | |
|
| 34 | 400834-00 | 2 | WASHER | B5 | |
||
| 36 | 448373-00 | 1 | WASHER SPRING | B5 | |
||
| 38 | 380725-00 | 1 | SLEEVE | B5 | |
||
| 40 | 385244-00 | 1 | CIRCLIP | B5 | |||
| 41 | N115813 | 1 | SPINDLE | B5 | |
||
| 42 | N089240 | 1 | COLLET 6MM | 6MM | B5 | |
|
| 46 | N125779 | 1 | RATING PLATE | DW887N-B5 TY4 | B5 | |
|
| 48 | 380722-00 | 1 | COVER | B5 | |||
| 49 | 605040-15 | 1 | BEARING,BALL | NPP | B5 | |
|
| 50 | 395047-00 | 1 | BRAND LABEL | B5 | |
||
| 60 | 030076-00 | 2 | SPANNER | 13mm X 16mm | B5 | |
