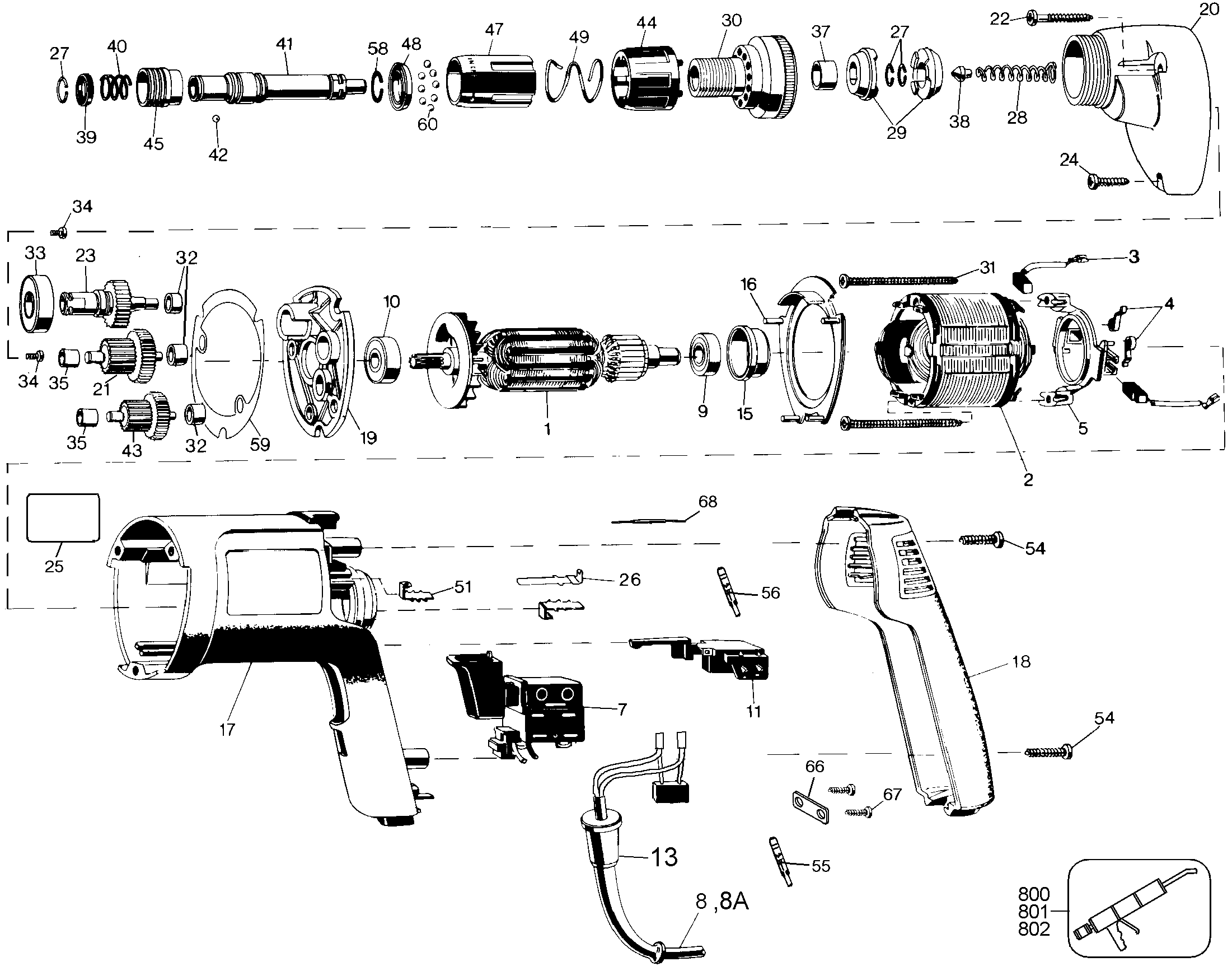

2054-40 VERSACLUTCH SCRUGUN-ASIA Type 100 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 000000-00 | 1 | NO LONGER AVAILABLE | B5 | |||
| 2 | 146511-01 | 1 | FIELD | NLS | INC 31 | B5 | |
| 3 | 143803-05 | 2 | BRUSH | B5 | |||
| 4 | 445860-00 | 2 | BRUSH SPRING | B5 |  |
||
| 5 | 449899-05 | 1 | RING | INC 4 | B5 | |
|
| 7 | 286244-00 | 1 | SWITCH,VS,AC | B5 |  |
||
| 8 | 147360-06 | 1 | CORD/2M/1MM-2 | B5 | |||
| 9 | 330003-04 | 1 | BEARING | B5 | |||
| 10 | 330003-04 | 2 | BEARING | B5 | |||
| 11 | 150196-00 | 1 | SWITCH,REV. | B5 | |||
| 13 | 330005-01 | 1 | CORD PROTECTOR | B5 | |
||
| 15 | 445217-02 | 1 | SLEEVE | B5 | |
||
| 16 | 447866-00 | 1 | BAFFLE FAN | B5 | |
||
| 17 | 464231-00 | 1 | CASE,FIELD | B5 | |||
| 18 | 450594-01 | 1 | COVER,HANDLE | B5 | |||
| 19 | 448658-00 | 1 | GEARCASE COVER | INC 10, 32 | B5 | |
|
| 20 | 448666-00 | 1 | GEARCASE | INC 34-35 | B5 | |
|
| 21 | 448069-07 | 1 | GEAR & PINION | 44/15 TEETH | B5 | |
|
| 22 | 330019-16 | 1 | SCREW | B5 | |
||
| 23 | 448842-01 | 1 | SPINDLE & GEAR | 37 TEETH | B5 | |
|
| 24 | 330019-13 | 1 | SCREW | M4X19 T20 | B5 | |
|
| 25 | 148058-12 | 1 | NAMEPLATE | B5 | |||
| 26 | 449192-00 | 4 | TERMINAL | B5 | |
||
| 27 | 089210-00 | 3 | RETAINER | B5 | |
||
| 28 | 86211-00 | 1 | SPRING | B5 | |
||
| 29 | 96558-04 | 2 | CLUTCH | INC 27 | B5 | |
|
| 30 | 093105-01 | 1 | HOUSING | INC 37 | B5 | |
|
| 31 | 448269-00 | 2 | SCREW | B5 | |
||
| 32 | 093128-00 | 3 | BEARING NEEDLE | B5 | |
||
| 33 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | B5 | |
|
| 34 | 052819-00 | 2 | SCREW | B5 | |||
| 35 | 330004-00 | 2 | BEARING | B5 | |
||
| 37 | 090626-00 | 1 | SLEEVE BEARING | B5 | |||
| 38 | 021287-00 | 1 | GUIDE | B5 | |
||
| 39 | 090866-00 | 1 | WASHER | B5 | |
||
| 40 | 086134-00 | 1 | SPRING | B5 | |
||
| 41 | 450360-00 | 1 | SPINDLE | 1/4" HEX | B5 | |
|
| 42 | 099047-01 | 1 | BALL | 1/8 INCH | 1/8" | B5 | |
| 44 | 090639-02 | 1 | COLLAR | B5 | |
||
| 45 | 387451-00 | 1 | RETAINER | B5 | |
||
| 47 | 450555-00 | 1 | STOP | B5 | |
||
| 48 | 90596-00 | 1 | SEAL | B5 | |||
| 49 | 087928-00 | 1 | LOCATOR SPRING | B5 | |||
| 54 | 330019-16 | 4 | SCREW | B5 | |
||
| 58 | 21360-00 | 1 | RETAINER | B5 | |
||
| 59 | 386422-00 | 1 | GASKET | B5 | |||
| 60 | 000903-00 | 8 | BALL | 7/32" | B5 | |
|
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | B5 | |
| 801 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | B5 | ||
| 802 | N017298 | 1 | GREASE | G-2008 Molykote | 1-LB | B5 | |
