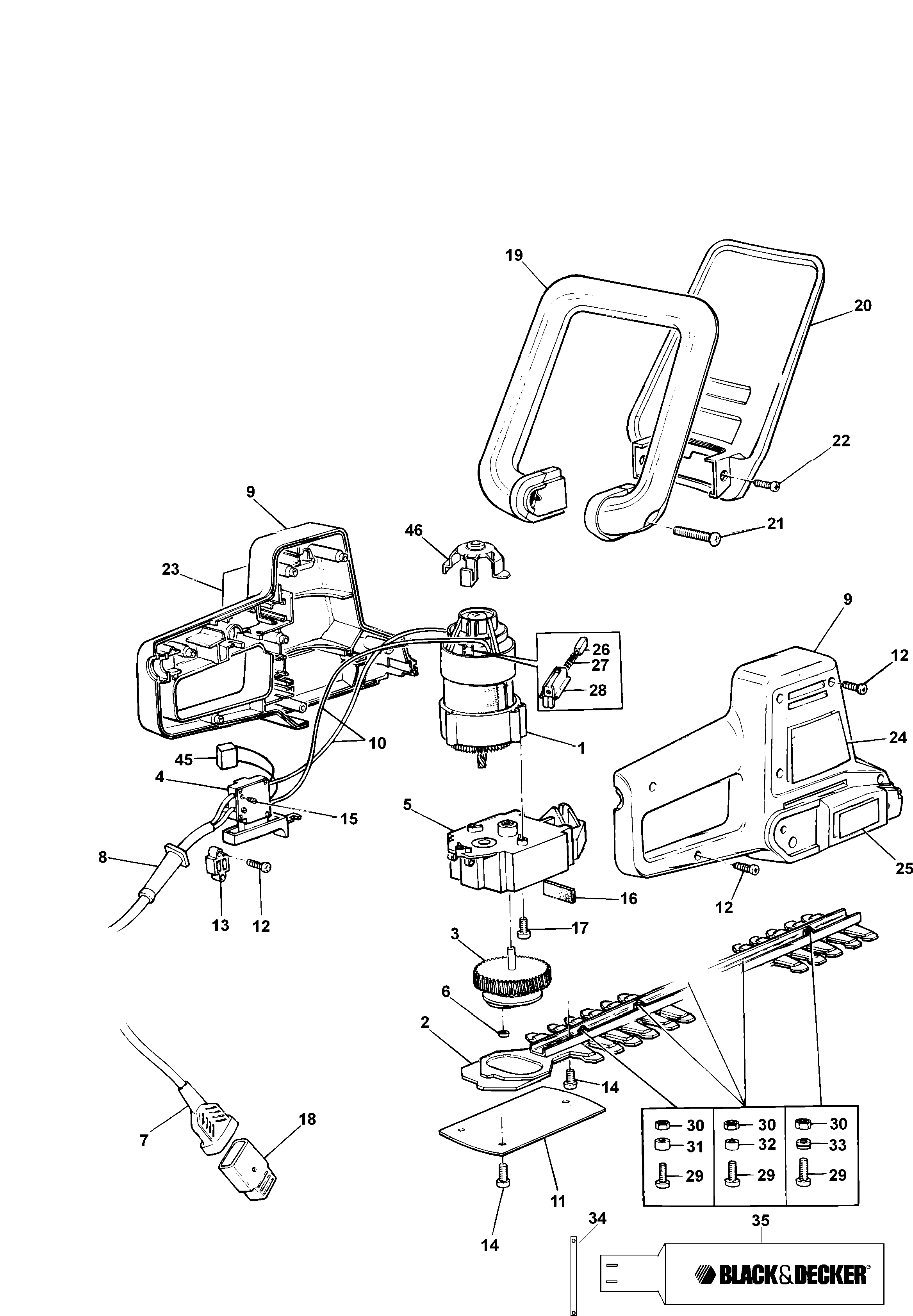

GT220P HEDGETRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 376926-02 | 1 | MOTOR SA | AE |  |
||
| 2 | 795993-49 | 1 | BLADE & GEAR SA | BLADE H1E-H PRE 1996 | AE | |
|
| 4 | 795782 | 1 | SWITCH | AE | |
||
| 5 | 371794-49 | 1 | REPAIR KIT | AE | |
||
| 6 | 832472 | 1 | ROLLER | BLADE H1-D | AE | |
|
| 7 | 330048-08 | 1 | CORDSET (EURO) | AE | |
||
| 7 | 330048-53 | 1 | CORDSET (SPLASH) | KW-GB H1A TO H1G | AE | |
|
| 7 | 799370-13 | 1 | CORDSET 15M | GB H1H | AE | |
|
| 7 | 808240-13 | 1 | CABLE SA | B1 | AE | |
|
| 8 | 770235 | 1 | PROTECTOR | AE |  |
||
| 9 | 796291 | 1 | CLAMSHELL | AE | |
||
| 10 | 811676 | 2 | LEAD | H1 | AE | |
|
| 11 | 371794-49 | 1 | REPAIR KIT | BLADE H1E-H PRE 1996 | AE | |
|
| 11 | 370099 | 1 | COVER | BUILT AFTER 1996 | AE | |
|
| 12 | 849256 | 9 | SCREW | AE | |
||
| 13 | 994808 | 1 | CABLE CLAMP | AE | |
||
| 14 | 747507 | 5 | SCREW | BLADE H1-D | AE | |
|
| 14 | 747507 | 5 | SCREW | BLADE H1E-H PRE 1996 | AE | |
|
| 14 | 809015 | 5 | SCREW | BUILT AFTER 1996 | AE | |
|
| 15 | 990735 | 2 | SCREW | AE | |
||
| 16 | 849718 | 1 | PAD | AE | |
||
| 17 | 849256 | 3 | SCREW | AE | |
||
| 18 | 844840 | 1 | COUPLER (SPLASH) | KW-ZA GB H1A-H1G | AE | |
|
| 19 | 829591 | 1 | HANDLE | AE | |
||
| 20 | 829718 | 1 | GUARD | AE | |
||
| 21 | 745217 | 2 | SCREW | AE | |
||
| 22 | 828849 | 2 | SCREW | AE | |
||
| 23 | 746157 | 1 | BRAND LABEL | AE | |
||
| 24 | 746317 | 1 | WARNING LABEL | AE | |||
| 26 | 376143 | 2 | BRUSH | H1 | AE | |
|
| 27 | 847709 | 2 | SPRING | AE | |
||
| 28 | 812738 | 2 | BRUSH HOLDER | H1 | AE | |
|
| 29 | 829808 | 5 | SCREW | AE | |
||
| 30 | 892153 | 5 | NUT | AE | |
||
| 31 | 829074 | 1 | SPACER | AE | |
||
| 32 | 829075 | 3 | SPACER | AE | |
||
| 33 | 829809 | 1 | SPACER | AE | |
||
| 34 | 371998 | 1 | STRAP | GT220P | AE | |
|
| 35 | 371997-01 | 1 | SLEEVE | GT220P | AE | |
