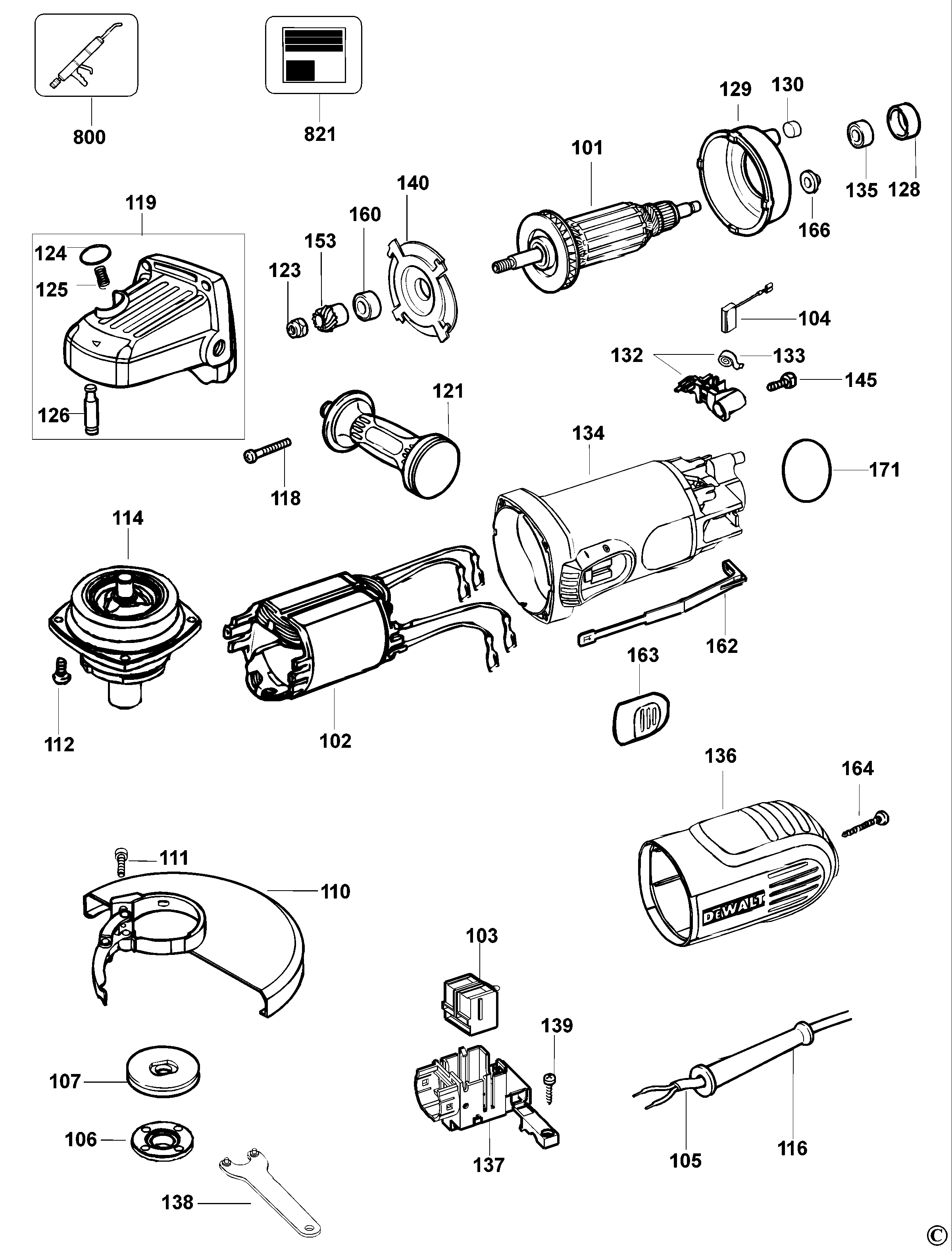

D28128 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 401702-10 | 1 | ARMATURE 230V | XE | |||
| 102 | 605527-00 | 1 | FIELD | XE | |||
| 103 | 945614-00 | 1 | SWITCH | XE | |||
| 104 | 939539-01 | 2 | BRUSH CUT OFF | XE | |||
| 105 | 562226-03 | 1 | CABLE | XE | |||
| 106 | 947212-00 | 1 | OUTER FLANGE | XE | |||
| 107 | 391969-00 | 1 | INNER FLANGE | XE | |||
| 110 | 397661-01 | 1 | GUARD SA | 4.5 IN TYPE 27 | XE | ||
| 111 | 631609-02 | 1 | SCREW | M5x16 SPECIAL | XE | ||
| 112 | 330045-46 | 4 | SCREW | XE | |||
| 114 | 604488-11 | 1 | SPINDLE & GEAR SA | XE | |||
| 116 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 118 | 562097-01 | 4 | SCREW | XE | |||
| 119 | 562304-02S | 1 | GEAR CASE ASSY. | XE | |||
| 121 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | XE | ||
| 123 | 945292-00 | 1 | NUT | XE | |||
| 124 | 944575-00 | 1 | BUTTON | XE | |||
| 125 | 562210-00 | 1 | SPRING | XE | |||
| 126 | 944571-00 | 1 | SPINDLE LOCK | XE | |||
| 128 | 641823-00 | 1 | SLEEVE | XE | |||
| 129 | 401623-00 | 1 | BAFFLE | XE | |||
| 130 | 949638-01 | 2 | BUFFER | XE | |||
| 132 | 606574-01SV | 2 | BRUSH HOLDER | XE | |||
| 133 | 562204-00 | 2 | SPRING | XE | |||
| 134 | 615071-00SV | 1 | FIELD CASE | XE | |||
| 135 | 605040-02 | 1 | BEARING | XE | |||
| 136 | 613186-01 | 1 | END CAP | XE | |||
| 137 | 611540-00 | 1 | SUPPORT | XE | |||
| 138 | 401253-00 | 1 | WRENCH ROUND-PINS | XE | |||
| 139 | 562097-05 | 1 | SCREW | XE | |||
| 140 | 401622-01 | 1 | FLANGE | XE | |||
| 145 | 562097-00 | 2 | SCREW | XE | |||
| 153 | 562100-01 | 1 | PINION | 11T | XE | ||
| 160 | N110359 | 1 | BEARING | XE | |||
| 162 | 611737-01 | 1 | LINK | XE | |||
| 163 | 569624-01 | 1 | BUTTON | XE | |||
| 164 | 562097-13 | 1 | SCREW | XE | |||
| 166 | 398906-00 | 1 | SPACER INSULATING | XE | |||
| 171 | 393799-00 | 1 | O RING | XE | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XE | ||
| 821 | 615268-00 | 1 | RATING PLATE | D28128-XE TY.1 | XE | ||
| 856 | 562086-10 | 1 | GRINDING WHEEL | XE |
