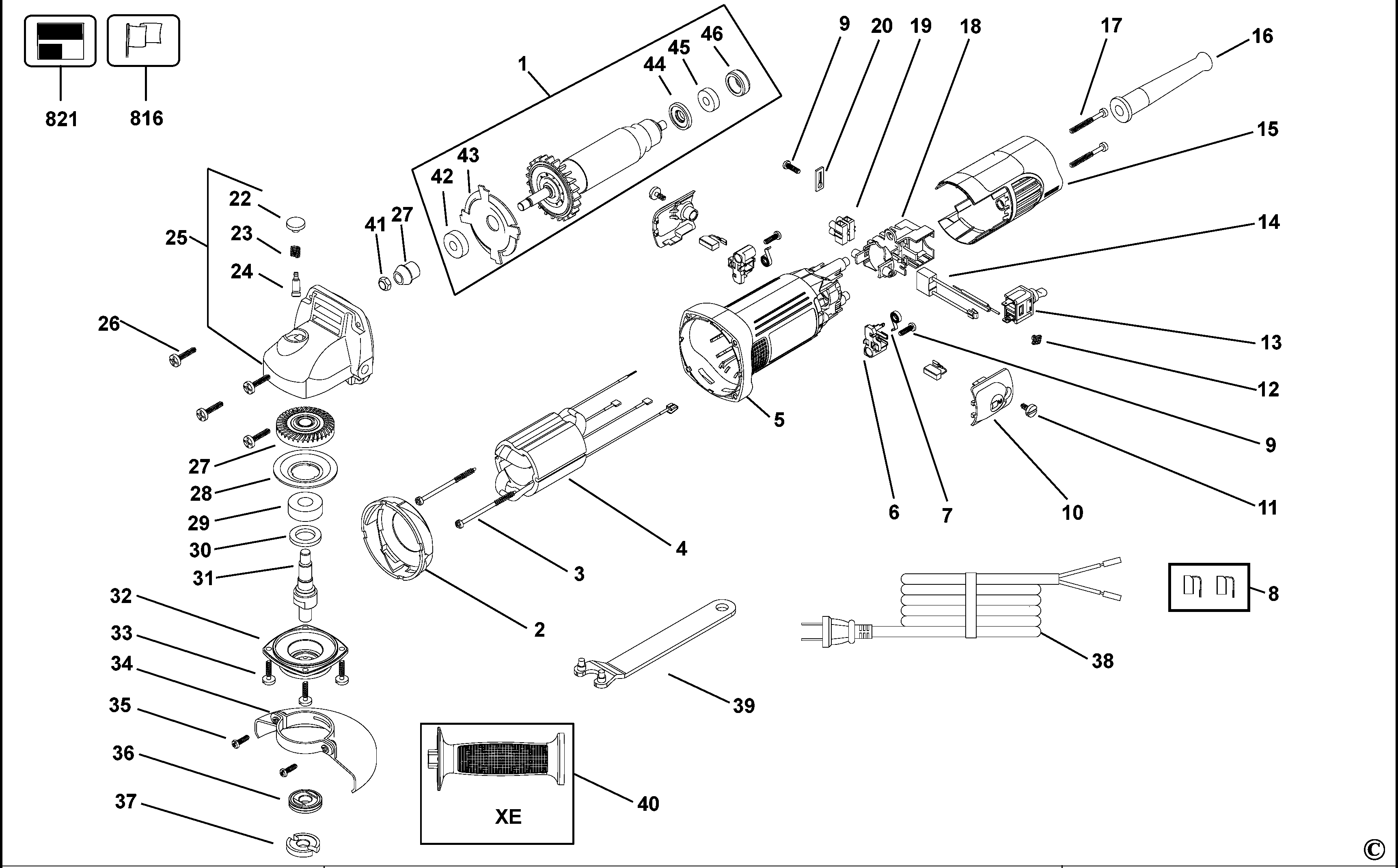

D28000 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 659289-00 | 1 | BAFFLE | XE | |||
| 3 | 330065-29 | 2 | SCREW | XE | |||
| 5 | 659479-00 | 1 | FIELDCASE | XE | |||
| 6 | N022338 | 2 | BRUSH HOLDER SA | XE | |||
| 7 | 619985-00 | 2 | SPRING | XE | |||
| 9 | 562097-00 | 3 | SCREW | XE | |||
| 10 | 659924-00 | 2 | DOOR | XE | |||
| 11 | N018354 | 2 | SCREW | M9.7 4.3mm | XE | ||
| 12 | 627647-00 | 1 | SCREW | XE | |||
| 15 | 659925-00 | 1 | Handle | XE | |||
| 16 | 330005-01 | 1 | CORD PROTECTOR | XE | |||
| 17 | 562097-02 | 2 | SCREW | XE | |||
| 18 | N016262 | 1 | SWITCH SUPPORT | XE | |||
| 20 | 619328-00 | 1 | CORD CLAMP | XE | |||
| 22 | 944575-00 | 1 | BUTTON | XE | |||
| 23 | 562210-00 | 1 | SPRING | XE | |||
| 24 | 944571-00 | 1 | SPINDLE LOCK | XE | |||
| 25 | 562304-01 | 1 | GEARCASE SA | incl 22,23,24 | XE | ||
| 26 | 562097-01 | 4 | SCREW | XE | |||
| 27 | 661243-00 | 1 | GEAR & PINION | XE | |||
| 28 | N021981 | 1 | FLANGE | XE | |||
| 29 | 605040-22 | 1 | BEARING | XE | |||
| 30 | 641893-00 | 1 | FELT SEAL | XE | |||
| 31 | N039248 | 1 | SPINDLE | M10 | XE | ||
| 32 | 562185-01 | 1 | GEARCASE COVER | XE | |||
| 33 | 562097-01 | 4 | SCREW | XE | |||
| 39 | 401253-00 | 1 | WRENCH ROUND-PINS | XE | |||
| 41 | 945292-00 | 1 | NUT | XE | |||
| 42 | 605040-03 | 1 | BEARING BALL | XE | |||
| 43 | 619326-00 | 1 | FLANGE | XE | |||
| 44 | 619327-00 | 1 | INSULATOR | XE | |||
| 45 | N110359 | 1 | BEARING | XE | |||
| 45 | N110359 | 1 | BEARING | XE | |||
| 46 | 641823-00 | 1 | SLEEVE | XE | |||
| 816 | N015350 | 1 | BRAND LABEL | XE |
