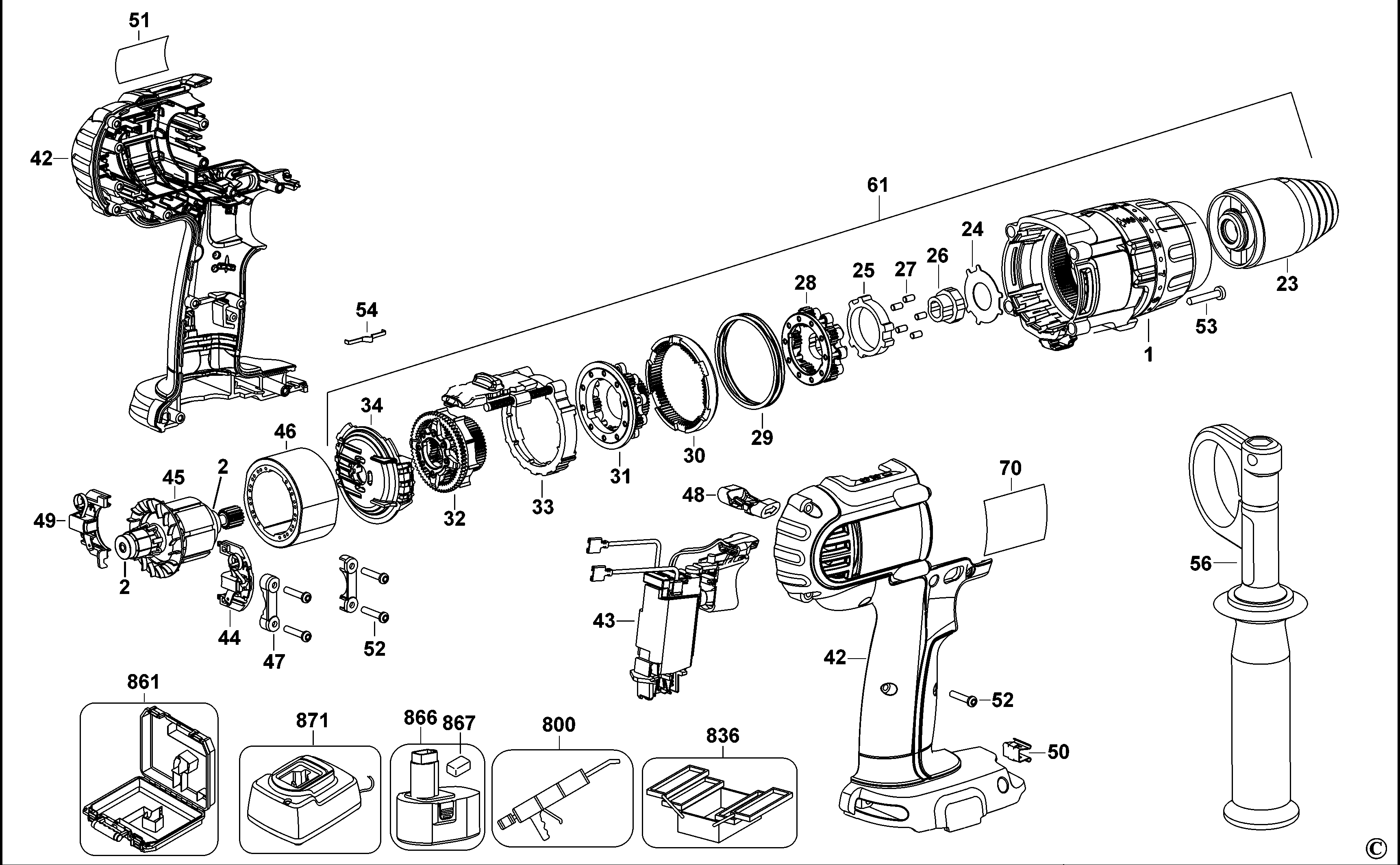

DCD990 HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N026313 | 1 | GEARCASE SA | XE | |||
| 2 | N110357 | 2 | BEARING | XE | |||
| 23 | 330075-90 | 1 | CHUCK KEYLESS | XE | |||
| 24 | 652378-00 | 1 | PLATE | XE | |||
| 25 | 650470-00 | 1 | LOCKING RING | XE | |||
| 26 | 652379-00 | 1 | ANVIL | Double D | XE | ||
| 27 | 654110-00 | 5 | ROLLER | XE | |||
| 28 | N017098 | 1 | GEAR SA | 3rd reduction | XE | ||
| 29 | N038862 | 1 | SPRING | XE | |||
| 30 | 650444-00 | 1 | GEAR | Second reduction | XE | ||
| 31 | N017099 | 1 | GEAR SA | Second reduction | XE | ||
| 32 | N030490 | 1 | GEAR SA | 1st reduction | XE | ||
| 33 | 657453-00 | 1 | SLIDER SA | XE | |||
| 34 | 654927-00 | 1 | BAFFLE SA | XE | |||
| 42 | N016695 | 1 | CLAMSHELL SET | XE | |||
| 43 | N020621SV | 1 | SWITCH SA | XE | |||
| 44 | N031214 | 1 | BRUSHBOX SA | INCL.BRUSH&HLDR ASSY | XE | ||
| 45 | N023149 | 1 | ARMATURE SA | XE | |||
| 46 | N230576 | 1 | MAGNET | 26mm | XE | ||
| 47 | N007948 | 2 | CLAMP | XE | |||
| 48 | 650414-00 | 1 | ACTUATOR FWD/REV | XE | |||
| 49 | N031214 | 1 | BRUSHBOX SA | INCL.BRUSH&HLDR ASSY | XE | ||
| 50 | 148354-03 | 1 | HOLDER | XE | |||
| 51 | N028034 | 1 | BRAND LABEL | XE | |||
| 52 | 682211-00 | 13 | SCREW | XE | |||
| 53 | 330019-52 | 4 | SCREW | XE | |||
| 54 | N014681 | 2 | LEAF SPRING | XE | |||
| 56 | N433408 | 1 | SIDE HANDLE | Length 234 mm | XE | ||
| 61 | N219252 | 1 | GEARCASE SA | SCT w/18.0V Armature | XE | ||
| 70 | N022099 | 1 | NAMEPLATE | DCD970-XE TY1 | XE | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | XE | ||
| 836 | 559661-99 | 1 | S.T.CHUCK REMOVAL JIG | XE | |||
| 836 | 559662-99 | 1 | S.T.CHUCK REMOVAL JIG | XE | |||
| 861 | 660141-00 | 1 | KITBOX | XE | |||
| 866 | DC9144-XE | 2 | BATTERY 14.4V - 2.0AH | XE - Li-Ion | DCD990KL | XE | |
| 867 | 650912-00 | 1 | SAFETY CAP | Li-Ion - Nano | XE | ||
| 871 | DC9310-XE | 1 | CHARGER 7.2V - 18V | Li-Ion | XE |
