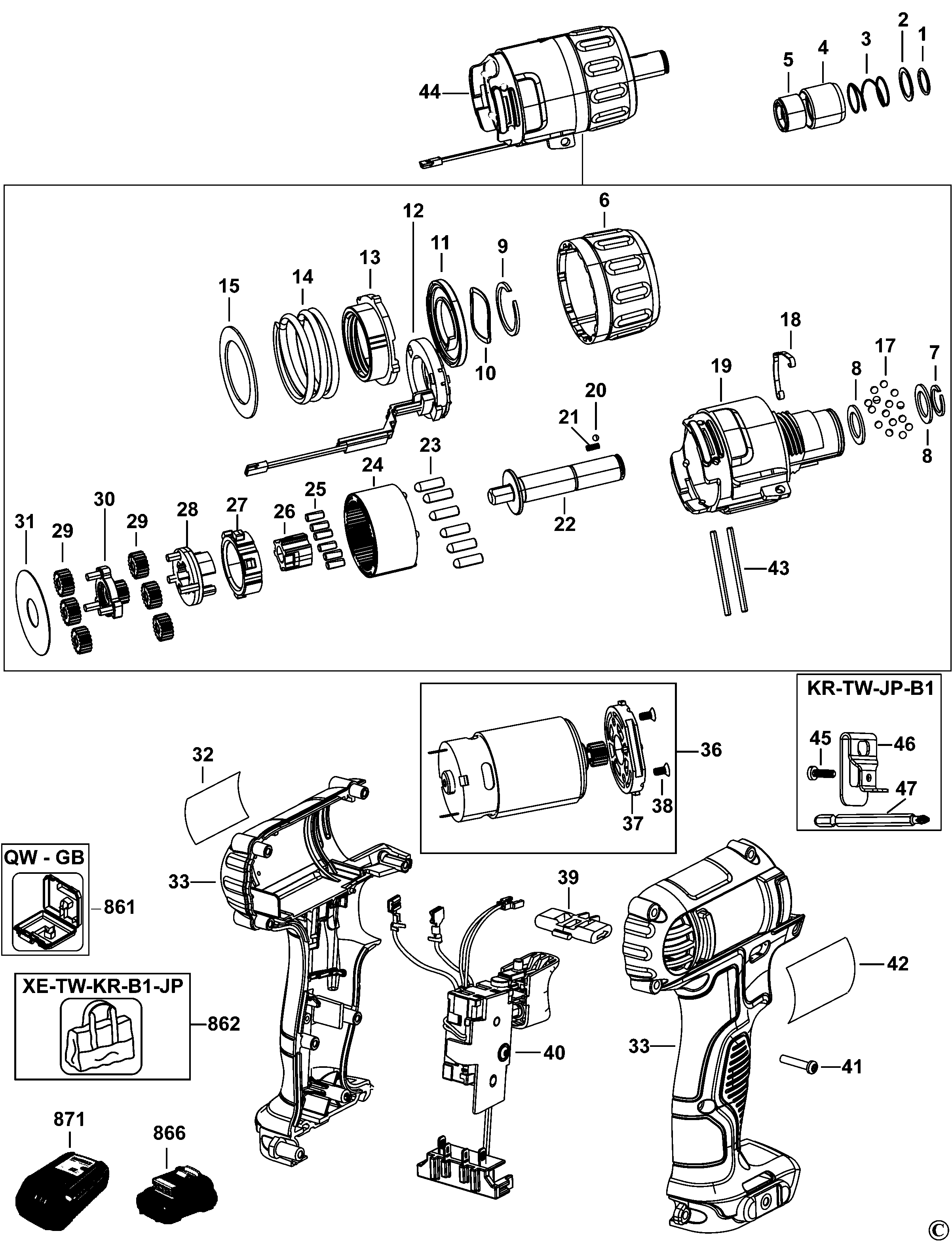

DCF610 SCREWDRIVER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N055051 | 1 | RETAINER | XE | |||
| 2 | N032311 | 1 | WASHER | XE | |||
| 3 | N020154 | 1 | SPRING | XE | |||
| 4 | N020153 | 1 | SLEEVE | XE | |||
| 5 | N025972 | 1 | SPACER | XE | |||
| 6 | N017246 | 1 | COLLAR | XE | |||
| 7 | N035362 | 1 | RETAINER | XE | |||
| 8 | N017233 | 2 | WASHER THRUST | XE | |||
| 9 | N035361 | 1 | RETAINER | XE | |||
| 10 | N017239 | 1 | WASHER SPECIAL | XE | |||
| 11 | N017253 | 1 | COVER | XE | |||
| 12 | N078519 | 1 | LED LIGHT | XE | |||
| 13 | N026127 | 1 | ADJUSTER TORQUE | XE | |||
| 14 | N017241 | 1 | SPRING | XE | |||
| 15 | N025236 | 1 | WASHER | XE | |||
| 17 | 389317-00 | 15 | BALL STEEL | XE | |||
| 18 | N031003 | 1 | DETENT | XE | |||
| 19 | N078520 | 1 | GEARCASE SA | XE | |||
| 20 | N022764 | 1 | BALL STEEL | XE | |||
| 21 | N020157 | 1 | SPRING | XE | |||
| 23 | N041814 | 6 | PIN.CONICAL | XE | |||
| 24 | N078522 | 1 | GEAR | XE | |||
| 25 | N032223 | 6 | PIN | XE | |||
| 26 | N032577 | 1 | ANVIL | XE | |||
| 27 | 656987-00 | 1 | LOCKING RING | XE | |||
| 28 | N078795 | 1 | CARRIER SA | XE | |||
| 29 | N017243 | 6 | GEAR | XE | |||
| 30 | N078794 | 1 | CARRIER SA | XE | |||
| 31 | N017249 | 1 | PLATE | XE | |||
| 32 | N127969 | 1 | BRAND LABEL | XE | |||
| 33 | N029500 | 1 | CLAMSHELL SET | XE | |||
| 36 | N168387 | 1 | MOTOR SA | XE | |||
| 37 | N151241 | 1 | PLATE | XE | |||
| 38 | N008721 | 2 | SCREW | XE | |||
| 39 | N017247 | 1 | ACTUATOR FWD/REV | XE | |||
| 40 | N168378 | 1 | SWITCH SA | XE | |||
| 41 | 682211-00 | 8 | SCREW | XE | |||
| 43 | N030622 | 2 | PIN | XE | |||
| 45 | N042665 | 1 | SCREW | XE | |||
| 46 | N026657 | 1 | HOOK | XE |
