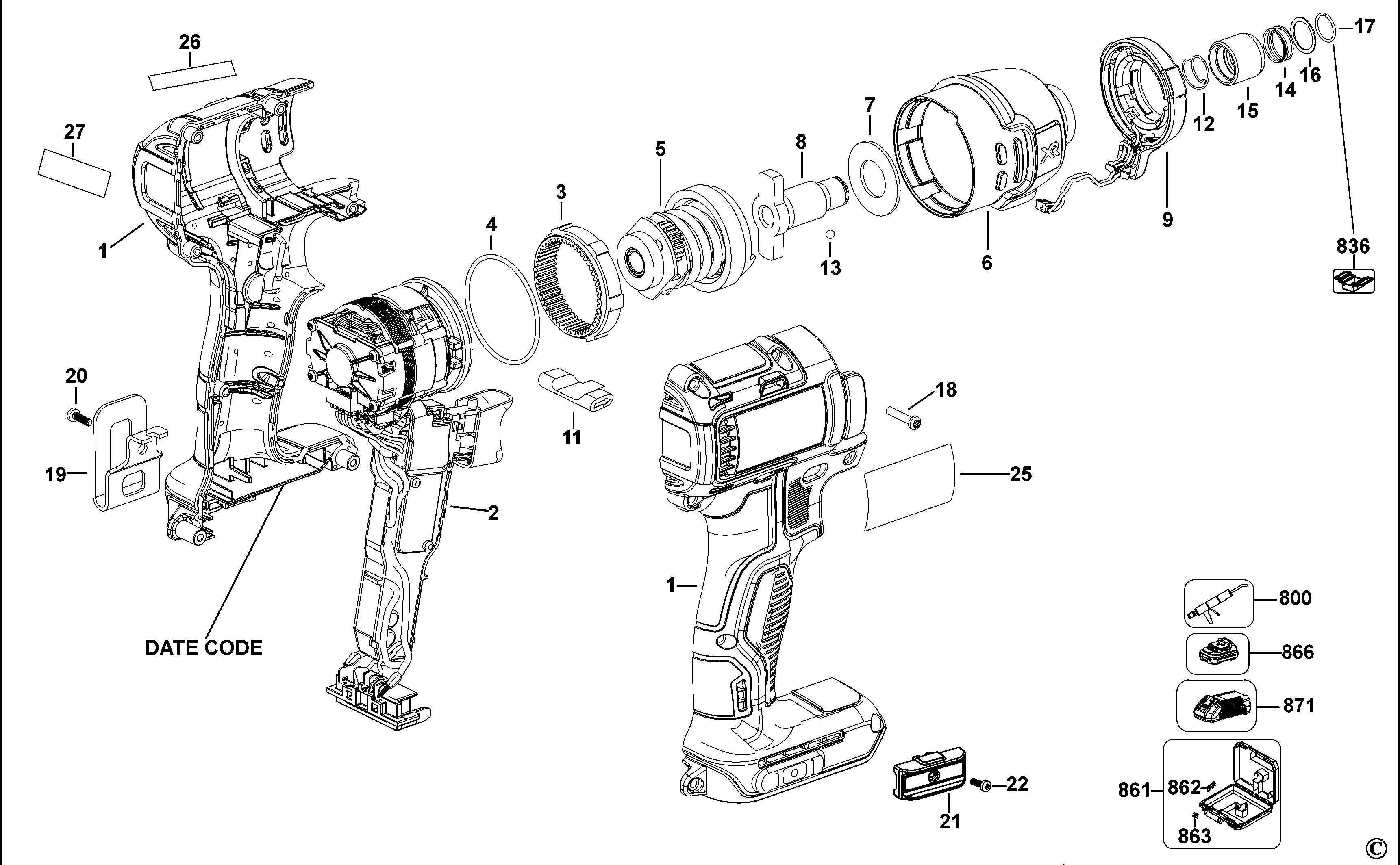

DCF886 IMPACT DRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N180481 | 1 | CLAMSHELL SET | XE | |||
| 2 | N434168 | 1 | MOTOR & SWITCH SA | XE | |||
| 3 | N112877 | 1 | GEAR | XE | |||
| 4 | N075339 | 1 | O RING | XE | |||
| 5 | N236619 | 1 | IMPACTOR | XE | |||
| 6 | N236639 | 1 | NOSE SA | XE | |||
| 7 | 642883-00C | 1 | WASHER | XE | |||
| 8 | N114621 | 1 | ANVIL ASSEMBLY | XE | |||
| 9 | N165504 | 1 | LED LIGHT | XE | |||
| 11 | N079835 | 1 | ACTUATOR FWD/REV | XE | |||
| 12 | N078434 | 1 | SPRING | XE | |||
| 13 | N089668 | 1 | BALL STEEL | XE | |||
| 14 | N019351 | 1 | SPRING | XE | |||
| 15 | N078437 | 1 | SLEEVE | XE | |||
| 16 | N016823 | 1 | WASHER | XE | |||
| 17 | N053863 | 1 | RING | XE | |||
| 18 | 682211-00 | 8 | SCREW | XE | |||
| 19 | N086039 | 1 | HOOK | XE | |||
| 20 | N042665 | 1 | SCREW | XE | |||
| 21 | N095778 | 1 | HOLDER BIT | XE | |||
| 22 | N042665 | 1 | SCREW | XE | |||
| 26 | N237999 | 1 | LABEL | 18V | XE | ||
| 27 | N298039 | 1 | LABEL | XE | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XE | ||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | XE | ||
| 836 | 1003940-99 | 1 | S.T.CIRCLIP INSERTER | XE | |||
| 861 | N197072 | 1 | KITBOX | XE | |||
| 861 | N312360 | 1 | KITBOX | P2-M2-NT - T-STAK | DCF886P2-DCF886M2 | XE | |
| 861 | N312361 | 1 | KITBOX | D2 - T-STAK | DCF886D2 | XE | |
| 862 | H1500082520 | 2 | LATCH | XE | |||
| 863 | P910190 | 2 | LATCH | XE | |||
| 866 | N210873 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182-XE | DCF886M2 | XE | |
| 871 | N126190 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-XE | XE |
