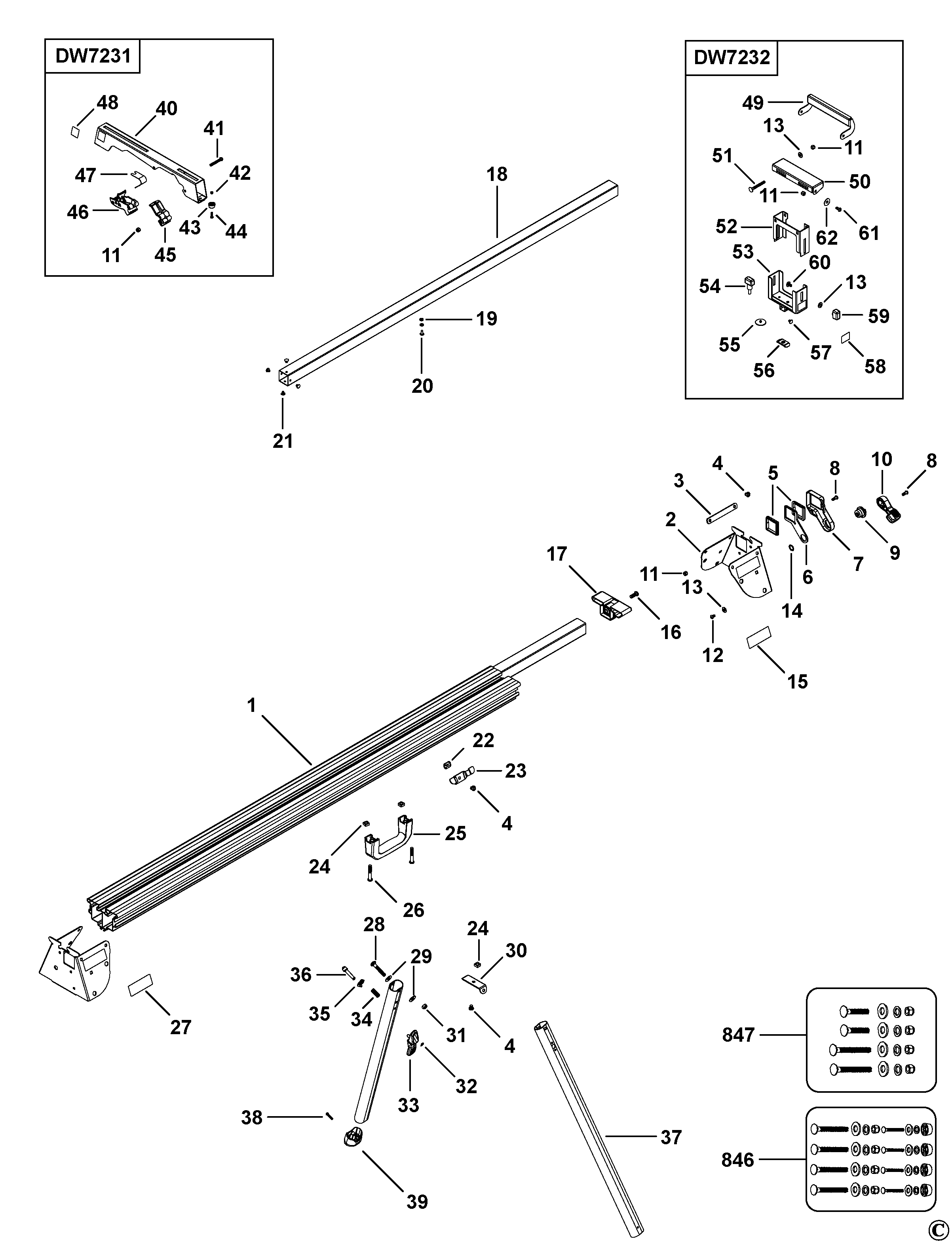

DWX723 MITER SAW STAND Type 4 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	N439887	1	BEAM			XE
2	N439882	1	SUPPORT BRACKET			XE
3	N087205	4	PLATE			XE
4	330045-31	11	SCREW			XE
5	N087198	4	GUIDE			XE
6	N439896	1	PLATE LOCK			XE
7	N576965	2	COVERPLATE			XE
8	N087285	6	SCREW			XE
9	N439901	1	CAM			XE
10	N069240	2	LEVER LOCK			XE
11	330021-01	16	NUT			XE
12	N087318	2	SCREW			XE
13	N087248	10	WASHER			XE
14	N087200	2	WASHER SPRING	12.8mm		XE
16	N086604	2	SCREW			XE
17	N576964	2	END CAP			XE
18	N439899	1	EXTENSION			XE
19	N087321	4	WASHER LOCK			XE
20	N087258	2	SCREW			XE
21	N439894	1	PAD			XE
22	N087250	1	NUT			XE
23	N087127	1	BRACKET			XE
24	N087199	4	NUT			XE
25	N087125	1	Handle			XE
26	N593762	2	SCREW			XE
27	606774-00	1	BRAND LABEL			XE
28	658122-00	4	CARRIAGE BOLT			XE
29	657479-00	1	WASHER PLASTIC			XE
30	N087284	2	SUPPORT BRACKET			XE
31	330021-02	4	NUT			XE
32	658121-00	4	RING			XE
33	N041876	4	LEVER LOCK			XE
34	658120-00	4	SPRING COMPRESSION			XE
35	657478-00	4	WASHER PLASTIC			XE
36	N439891	1	LOCK PIN			XE
37	N439892	1	LEG			XE
38	330019-32	4	SCREW			XE
39	N074647	4	FOOT			XE
40	N087331	2	MOUNTING BRACKET			XE
41	N087342	4	SCREW			XE
42	330021-00	4	STOP NUT			XE
43	N057926	4	FOOT			XE
44	330045-06	4	SCREW			XE
45	N087369	2	CLIP			XE
46	N087367	2	LEVER RELEASE			XE
47	N087366	2	LEAF SPRING			XE
48	N217785	1	RATING PLATE		DW7231 - T3	XE
49	N087387	2	STOP			XE
50	N087381	2	SUPPORT			XE
51	N087382	4	CARRIAGE BOLT			XE
52	N087377	2	SUPPORT BRACKET			XE
53	N087402	2	BASE BRACKET			XE
54	N087376	2	KNOB			XE
55	N087374	4	PLASTIC INSERT			XE
56	N087375	2	BAR LOCKING			XE
57	N087373	8	PLASTIC INSERT			XE
59	N087378	4	KNOB			XE
60	N087380	4	SCREW			XE
61	N087390	4	SCREW			XE
62	N087392	4	WASHER PLASTIC			XE
846	N088854	1	PARTS PACK			XE
847	N087409	1	PARTS PACK			XE
