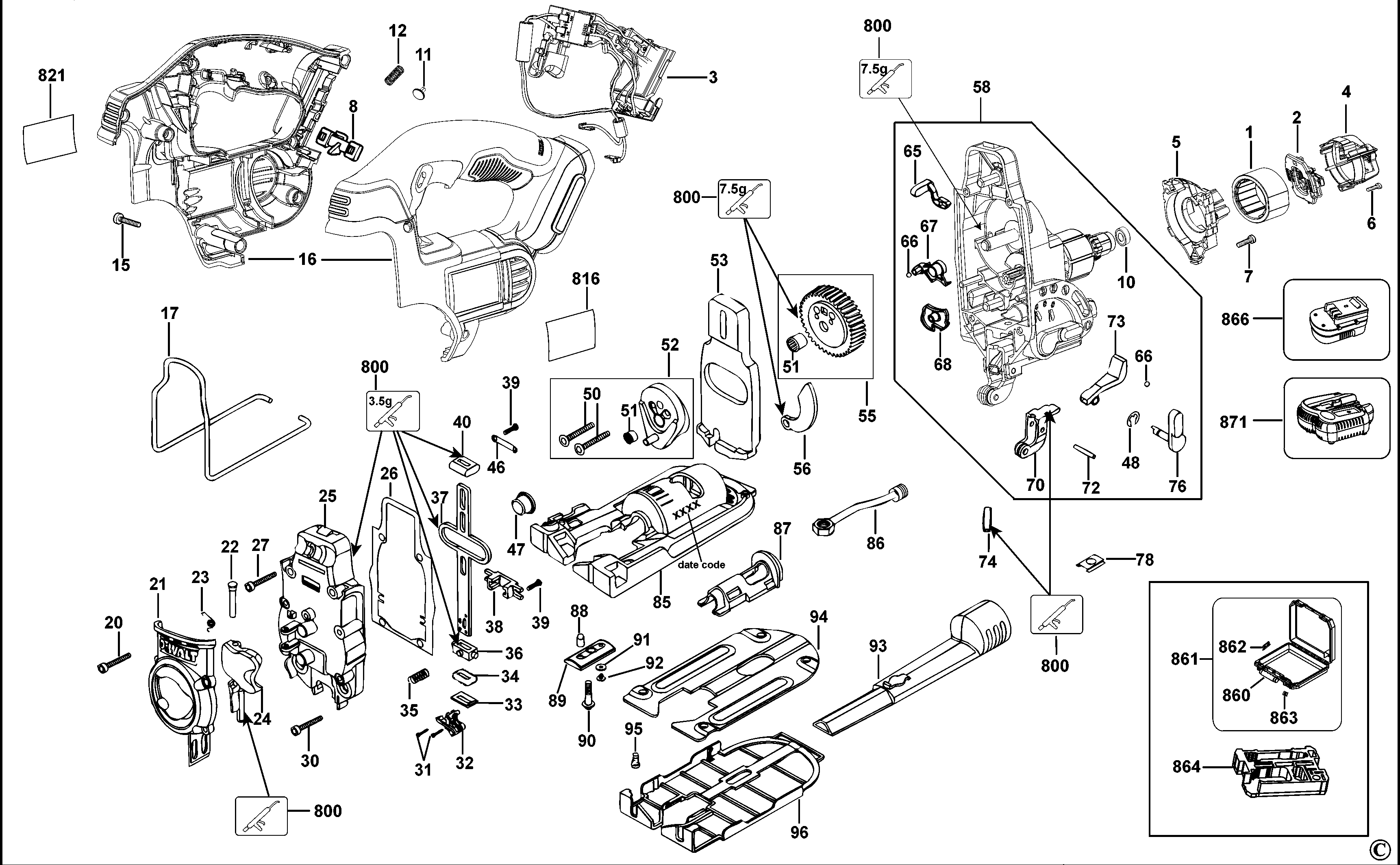

DCS331 CORDLESS JIGSAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N230576 | 1 | MAGNET | 26mm | XE | ||
| 2 | N012060 | 1 | BRUSHPLATE | XE | |||
| 3 | N165192 | 1 | ELECTRONIC & SWITCH | XE | |||
| 4 | N093117 | 1 | BRUSH HOLDER | XE | |||
| 5 | N394566 | 1 | ADAPTOR | XE | |||
| 6 | 330065-27 | 3 | SCREW | XE | |||
| 7 | 330045-15 | 4 | SCREW | XE | |||
| 8 | N060864 | 1 | BUTTON LOCK-OFF | XE | |||
| 10 | N110357 | 1 | BEARING | XE | |||
| 11 | N122099 | 1 | BLOCK | XE | |||
| 12 | N119679 | 1 | SPRING | XE | |||
| 15 | 330019-03 | 9 | SCREW | XE | |||
| 16 | N165198 | 1 | CLAMSHELL PAIR | 18.0v | XE | ||
| 17 | 581269-00 | 1 | GUARD | XE | |||
| 20 | 324006-00 | 4 | SCREW | XE | |||
| 21 | 581577-00 | 1 | CASTING | XE | |||
| 22 | 584627-00 | 1 | PIN | XE | |||
| 23 | 581418-00 | 1 | SPRING | XE | |||
| 24 | 589055-00 | 1 | ACTUATOR | XE | |||
| 25 | N142820 | 1 | GEARCASE COVER | 18v | XE | ||
| 26 | N444301 | 1 | GASKET | XE | |||
| 27 | 330045-09 | 2 | SCREW | XE | |||
| 30 | 330045-06 | 2 | SCREW | XE | |||
| 31 | 582837-00 | 1 | BOLT | XE | |||
| 32 | N127658 | 1 | BLADE CLAMP | XE | |||
| 33 | 582262-00 | 1 | HOLDER | XE | |||
| 34 | 582263-00 | 1 | FELT SEAL | XE | |||
| 35 | 586646-00 | 1 | SPRING | XE | |||
| 36 | 490330-00 | 1 | BEARING | XE | |||
| 37 | 589013-00 | 1 | SHAFT | XE | |||
| 38 | 582260-00 | 1 | SUPPORT BEARING | XE | |||
| 39 | 324006-00 | 4 | SCREW | XE | |||
| 40 | 490329-00 | 1 | BEARING | XE | |||
| 46 | 582261-00 | 1 | CLAMP | XE | |||
| 47 | 582257-00 | 1 | DRIVE ROLLER | XE | |||
| 48 | 571181-00 | 1 | CLIP | XE | |||
| 50 | N541247 | 2 | SCREW | XE | |||
| 51 | 330004-02 | 2 | BEARING NEEDLE | XE | |||
| 52 | N527424 | 1 | CRANK KIT | XE | |||
| 53 | 589012-00 | 1 | COUNTERWEIGHT | XE | |||
| 55 | N527431 | 1 | GEAR SA | Spur | XE | ||
| 56 | 581247-00 | 1 | ACTUATOR | XE | |||
| 58 | N381426 | 1 | GEARCASE SA | 18V | XE | ||
| 65 | 581255-05 | 1 | LEVER | XE | |||
| 66 | 326467-00 | 2 | DETENT | XE | |||
| 67 | 582830-05 | 1 | BODY | XE | |||
| 67 | 582830-05 | 1 | BODY | XE | |||
| 68 | 582831-00 | 1 | BAFFLE | XE | |||
| 70 | 589056-00 | 1 | SUPPORT BRACKET | XE | |||
| 72 | 330041-29 | 1 | PIN | XE | |||
| 73 | 584450-00 | 1 | NOZZLE | XE | |||
| 74 | 330041-49 | 1 | PIN | XE | |||
| 76 | 581257-01 | 1 | LEVER | XE | |||
| 78 | N089310 | 1 | SPRING CLIP | XE | |||
| 85 | 581263-00 | 1 | SHOE | XE | |||
| 86 | 493248-00 | 1 | LEVER | XE | |||
| 87 | 581266-00 | 1 | ADAPTOR | XE | |||
| 88 | 584686-00 | 1 | PLUNGER | XE | |||
| 89 | 496996-00 | 1 | CLAMP | XE | |||
| 90 | 582826-00 | 1 | BOLT | XE | |||
| 91 | 582828-00 | 1 | WASHER | XE | |||
| 92 | 582827-00 | 1 | BOLT | XE | |||
| 93 | 581281-00 | 1 | VACUUM ADAPTOR | XE | |||
| 94 | 581264-00 | 1 | SOLE PLATE | XE | |||
| 95 | N056875 | 4 | SCREW TORX | M4x10 | XE | ||
| 96 | 581268-00 | 1 | SOLE PLATE | XE | |||
| 800 | 870889-03 | 1 | GREASE | RENOLIT PARAGON EP ½ - 20 GRAMS | XE | ||
| 816 | N137253 | 1 | BRAND LABEL | 18v | XE | ||
| 860 | H1400196008 | 2 | Handle | XE | |||
| 861 | 581580-03 | 1 | KITBOX | XE | |||
| 861 | N279261 | 1 | KITBOX | DCS331NT | XE | ||
| 862 | H1500082520 | 2 | LATCH | XE | |||
| 863 | P910190 | 2 | LATCH | XE | |||
| 864 | MP16985 | 1 | INSERT | TSTAKII | DCS331NT | XE | |
| 866 | N210873 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182-XE | DCS331M2 | XE | |
| 871 | N450538 | 1 | CHARGER 10.8V - 18V | XE |
