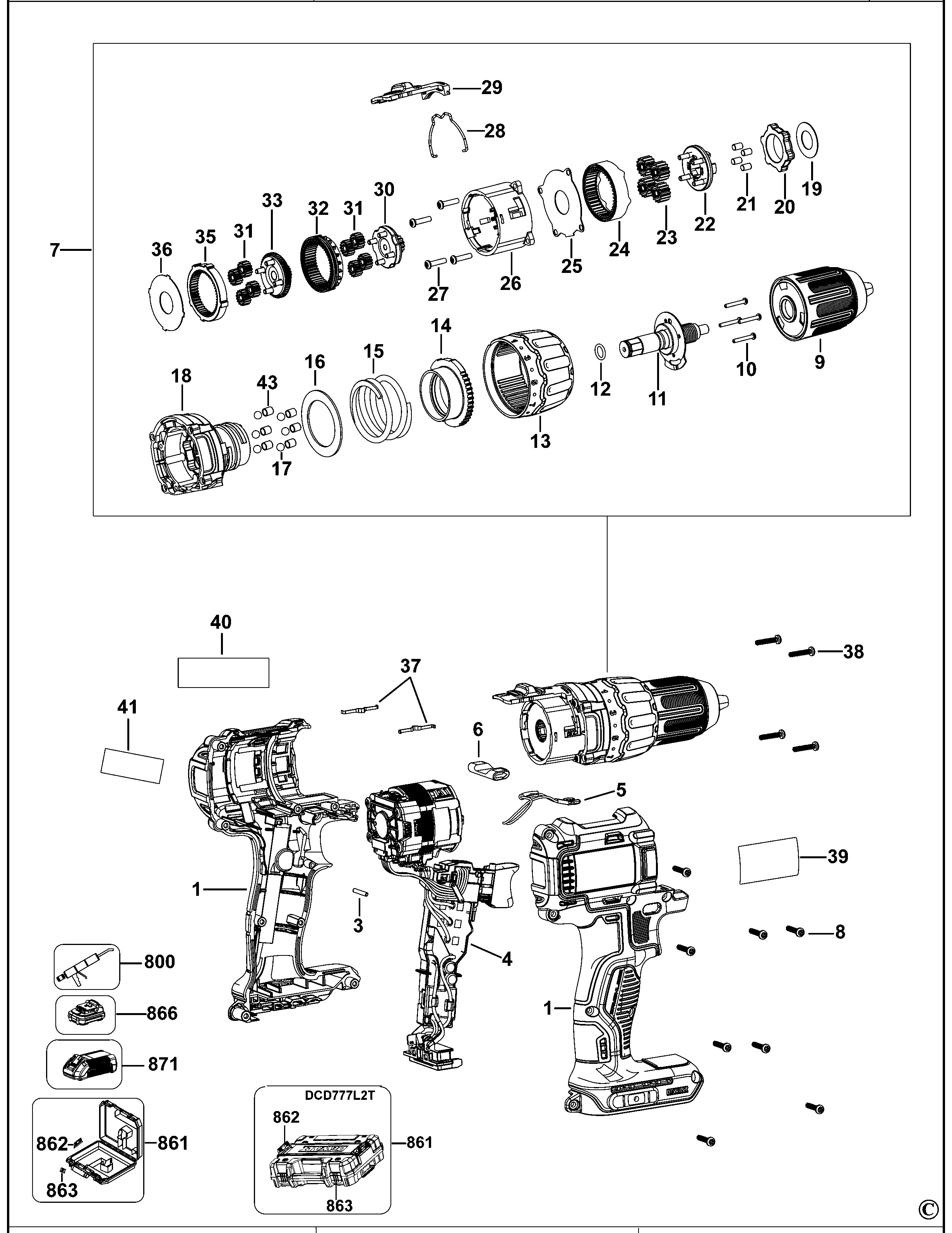

DCD777 CORDLESS DRILL Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	N459083	1	CLAMSHELL SET			XE
3	N071836	1	ROLL PIN			XE
4	N493868	1	MOTOR & SWITCH SA			XE
5	N459095	1	LED			XE
6	N399342	1	ACTUATOR FWD/REV			XE
7	N472976	1	GEARBOX SA			XE
8	N463678	12	SCREW			XE
9	N472497	1	CHUCK			XE
10	N039795	4	SCREW			XE
11	N495304	1	SPINDLE SA			XE
12	N475306	1	O RING			XE
13	N459098	1	COLLAR			XE
14	N459099	1	NUT			XE
15	N459442	1	SPRING			XE
16	N459455	1	WASHER			XE
17	386690-00	6	BALL	STEEL, 5MM		XE
18	N463692	1	CLUTCH HOUSING KIT			XE
19	N459467	1	WASHER			XE
20	N455056	1	RING			XE
21	N456078	4	PIN			XE
22	N495305	1	CARRIER SA			XE
23	N459597	4	GEAR			XE
24	N459268	1	RING			XE
25	N459449	1	PLATE			XE
26	N459094	1	GEARCASE			XE
27	N075506	4	SCREW			XE
28	N459273	1	WIRE STEEL			XE
29	N459102	1	SELECTOR			XE
30	N495306	1	CARRIER SA			XE
31	N215916	8	GEAR			XE
32	N462062	1	RING			XE
33	N495307	1	CARRIER SA			XE
35	N463849	1	RING			XE
36	N225458	1	PLATE			XE
37	N014681	2	LEAF SPRING			XE
38	N474504	4	SCREW			XE
39	N491258	1	RATING PLATE	EURO		XE
40	N492026	1	BRAND LABEL			XE
41	N298039	1	LABEL			XE
43	N482398	6	PIN			XE
800	286436-00	1	GREASE	NYE RHEOLUBE 380, 500 GRAM JAR		XE
861	N442424	1	KITBOX			XE
862	H1500082520	2	LATCH			XE
863	P910190	2	LATCH			XE
866	N210873	1	BATTERY 18V - 4.0AH - 72WH	Li-Ion - DCB182-XE	DCD777-L2	XE
866	N210873	1	BATTERY 18V - 4.0AH - 72WH	Li-Ion - DCB182-XE	DCD777-M2	XE
866	N342082	1	BATTERY 18V - 2.0AH - 36WH	Li-ion - DCB183-XE	DCD777-S2	XE
871	N450538	1	CHARGER 10.8V - 18V			XE
