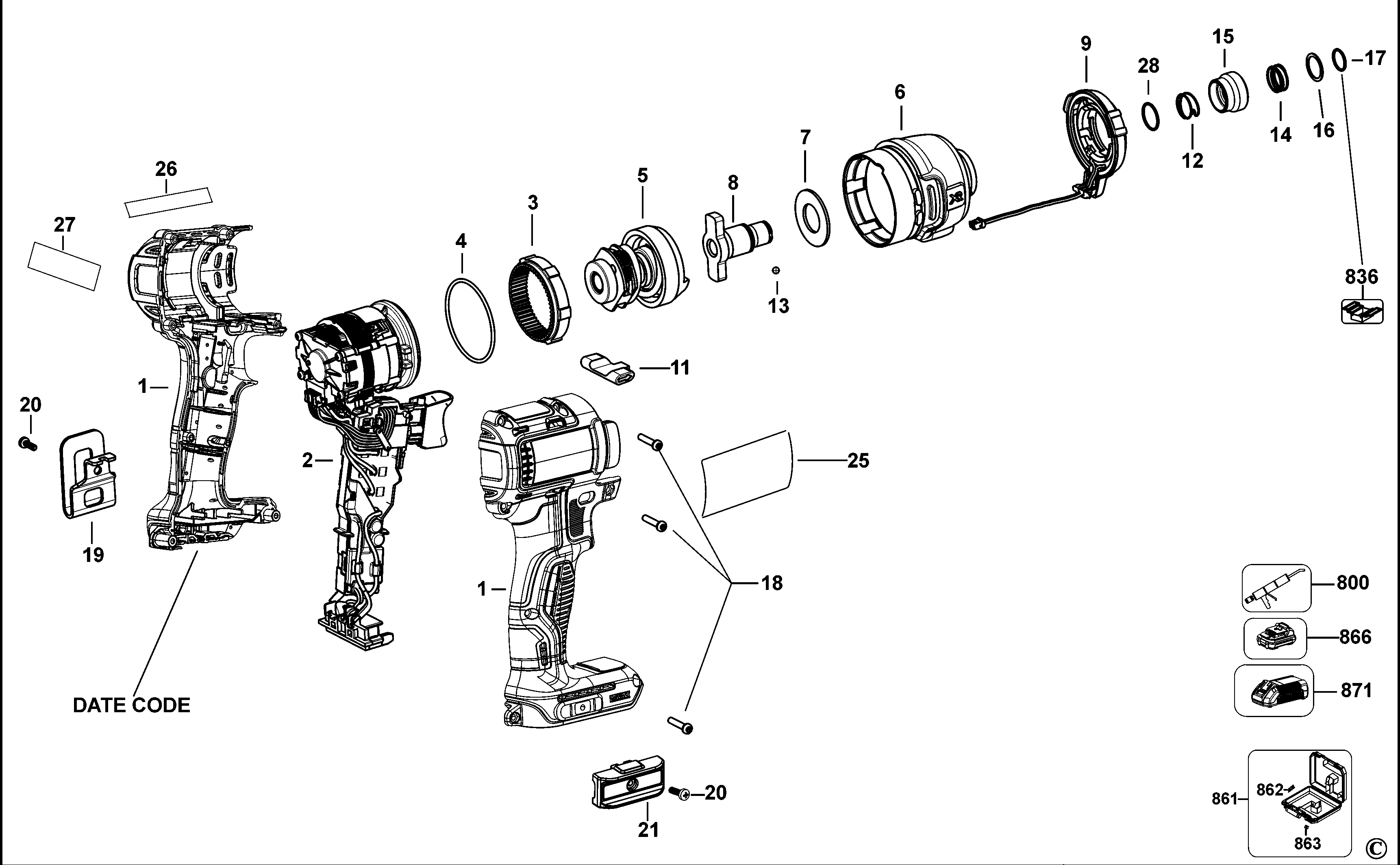

DCF787 IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N180481 | 1 | CLAMSHELL SET | XE | |||
| 2 | N496076 | 1 | MOTOR & SWITCH SA | XE | |||
| 3 | N112877 | 1 | GEAR | XE | |||
| 4 | N075339 | 1 | O RING | XE | |||
| 5 | N479692 | 1 | IMPACTOR | XE | |||
| 6 | N479491 | 1 | NOSE SA | XE | |||
| 7 | 642883-00C | 1 | WASHER | XE | |||
| 8 | N439275 | 1 | ANVIL ASSEMBLY | XE | |||
| 9 | N462726 | 1 | LED | XE | |||
| 11 | N399342 | 1 | ACTUATOR FWD/REV | XE | |||
| 12 | N437890 | 1 | SPRING | XE | |||
| 13 | N089668 | 1 | BALL STEEL | XE | |||
| 14 | N019351 | 1 | SPRING | XE | |||
| 15 | N612522 | 1 | SLEEVE | XE | |||
| 16 | N421245 | 1 | RING | XE | |||
| 17 | N453417 | 1 | WASHER | XE | |||
| 18 | 682211-00 | 8 | SCREW | XE | |||
| 19 | N086039 | 1 | HOOK | XE | |||
| 20 | N042665 | 2 | SCREW | XE | |||
| 21 | N095778 | 1 | HOLDER BIT | XE | |||
| 25 | N498147 | 1 | RATING PLATE | XE | |||
| 26 | N237999 | 1 | LABEL | 18V | XE | ||
| 27 | N298039 | 1 | LABEL | XE | |||
| 28 | N424032 | 1 | RING | XE | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | XE | ||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | XE | ||
| 836 | 1003940-99 | 1 | S.T.CIRCLIP INSERTER | XE | |||
| 861 | N442424 | 1 | KITBOX | XE | |||
| 861 | N348599 | 1 | KITBOX | XE | |||
| 861 | N442425 | 1 | KITBOX | XE | |||
| 862 | H1500082520 | 2 | LATCH | XE | |||
| 863 | P910190 | 2 | LATCH | XE | |||
| 866 | N210873 | 1 | BATTERY 18V - 4.0AH - 72WH | Li-Ion - DCB182-XE | DCF787-M2T-XE | XE | |
| 866 | N342082 | 1 | BATTERY 18V - 2.0AH - 36WH | Li-ion - DCB183-XE | DCF787D2T | XE | |
| 871 | N450538 | 1 | CHARGER 10.8V - 18V | XE |
