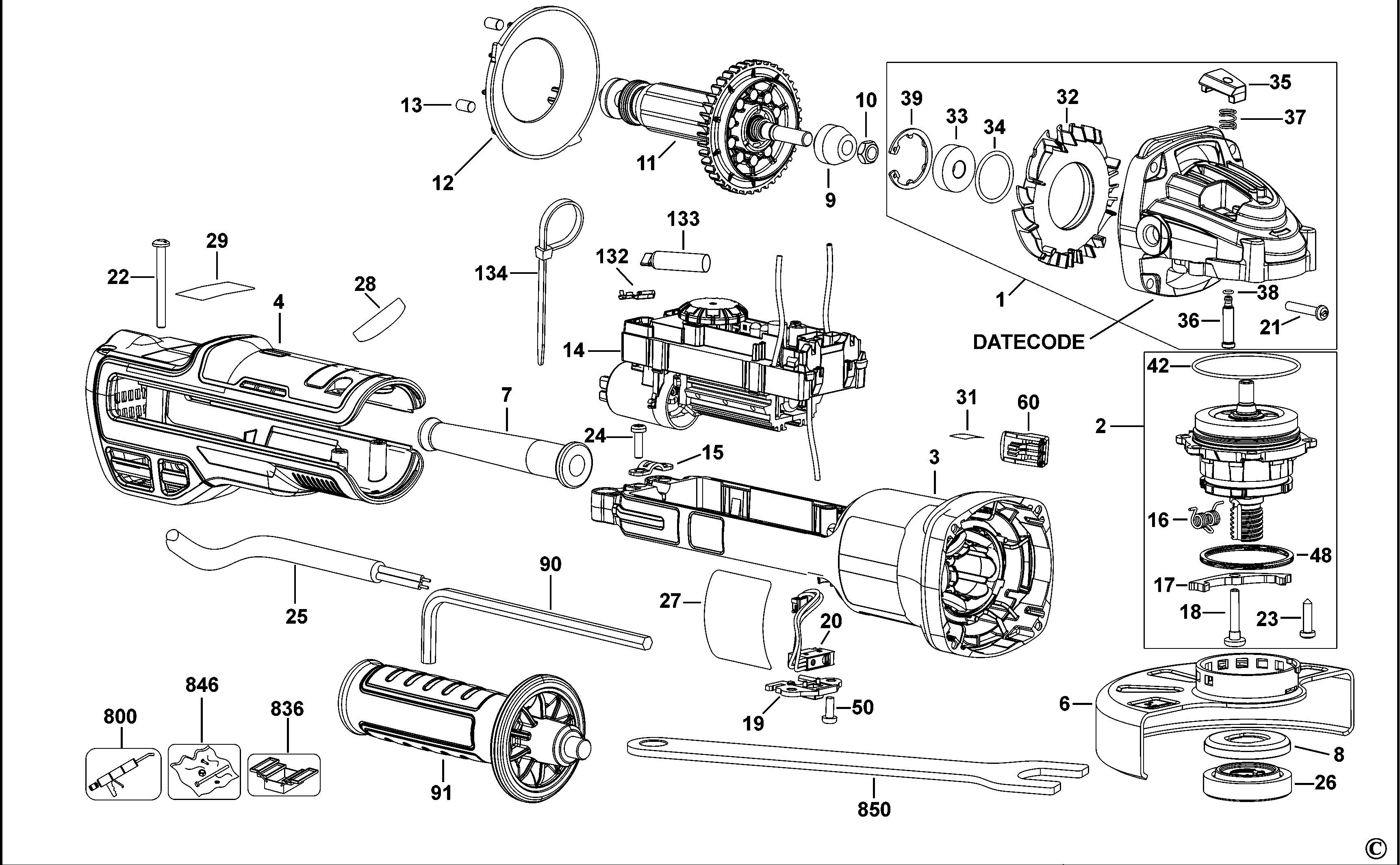

DWE4357 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N545495 | 1 | GEARCASE SA | PKGD N470622 | XE | ||
| 2 | N545254 | 1 | GEARCASE COVER SA | M14 | XE | ||
| 3 | N545775 | 1 | FIELDCASE SA | EURO | XE | ||
| 4 | N563944 | 1 | Handle | XE | |||
| 6 | N487790 | 1 | GUARD | XE | |||
| 7 | N473096 | 1 | CORD PROTECTOR | XE | |||
| 8 | 391969-00 | 1 | INNER FLANGE | XE | |||
| 9 | N442349 | 1 | PINION | 12T | XE | ||
| 10 | N372039 | 1 | NUT | XE | |||
| 11 | N545497 | 1 | ROTOR SA | PKGD N532366 | XE | ||
| 12 | N465425 | 1 | BAFFLE FAN | XE | |||
| 13 | 949638-01 | 3 | BUFFER | XE | |||
| 14 | N545578 | 1 | CONTROL MODULE SA | 230V | ALSO ORDER ITEM 846 | XE | |
| 15 | 930103-00 | 1 | CORD CLAMP | XE | |||
| 16 | N465886 | 1 | SPRING | XE | |||
| 17 | N637725 | 1 | LEVER | XE | |||
| 18 | N297219 | 1 | SCREW | XE | |||
| 19 | N419615 | 1 | COVER | MICRO-SWITCH | XE | ||
| 20 | N563931 | 1 | SWITCH | ALSO ORDER ITEM 846 | XE | ||
| 21 | N371839 | 4 | SCREW | XE | |||
| 22 | N389438 | 4 | SCREW | XE | |||
| 23 | 330045-06 | 5 | SCREW | XE | |||
| 24 | 330019-02 | 2 | SCREW | XE | |||
| 25 | N545847 | 1 | CORDSET | XE | |||
| 26 | N484250 | 1 | OUTER FLANGE | XE | |||
| 27 | N501666 | 1 | RATING PLATE | XE | |||
| 28 | N501633 | 1 | LABEL | XE | |||
| 29 | N474285 | 1 | LABEL | XE | |||
| 31 | N456232 | 1 | LABEL | BRAKE | XE | ||
| 32 | N401958 | 1 | DEFLECTOR | XE | |||
| 33 | N175104 | 1 | BEARING | XE | |||
| 34 | N119639 | 1 | O RING | XE | |||
| 35 | N278899 | 1 | BUTTON | XE | |||
| 36 | N481683 | 1 | LOCK PIN | XE | |||
| 37 | N263579 | 1 | SPRING | XE | |||
| 38 | N263699 | 1 | O RING | XE | |||
| 39 | N453031 | 1 | RETAINER | XE | |||
| 42 | N307625 | 1 | O RING | XE | |||
| 48 | N542715 | 1 | WASHER SPRING | XE | |||
| 50 | 330019-01 | 2 | SCREW | XE | |||
| 60 | N097844 | 1 | BUTTON | XE | |||
| 90 | N107295 | 1 | HEX KEY | 6 mm | XE | ||
| 91 | N382311 | 1 | SIDE HANDLE | XE | |||
| 132 | N485055 | 3 | TERMINAL | 110 IDC | XE | ||
| 133 | N498727 | 3 | BOOT | HEAT SHRINK | XE | ||
| 134 | 071025-04 | 1 | TIE | XE | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XE | ||
| 836 | N536561 | 1 | S.T.SUPPORT JIG | XE | |||
| 846 | N545570 | 1 | TUBE SILICONE | XE | |||
| 850 | N541784 | 1 | SPANNER | XE |
