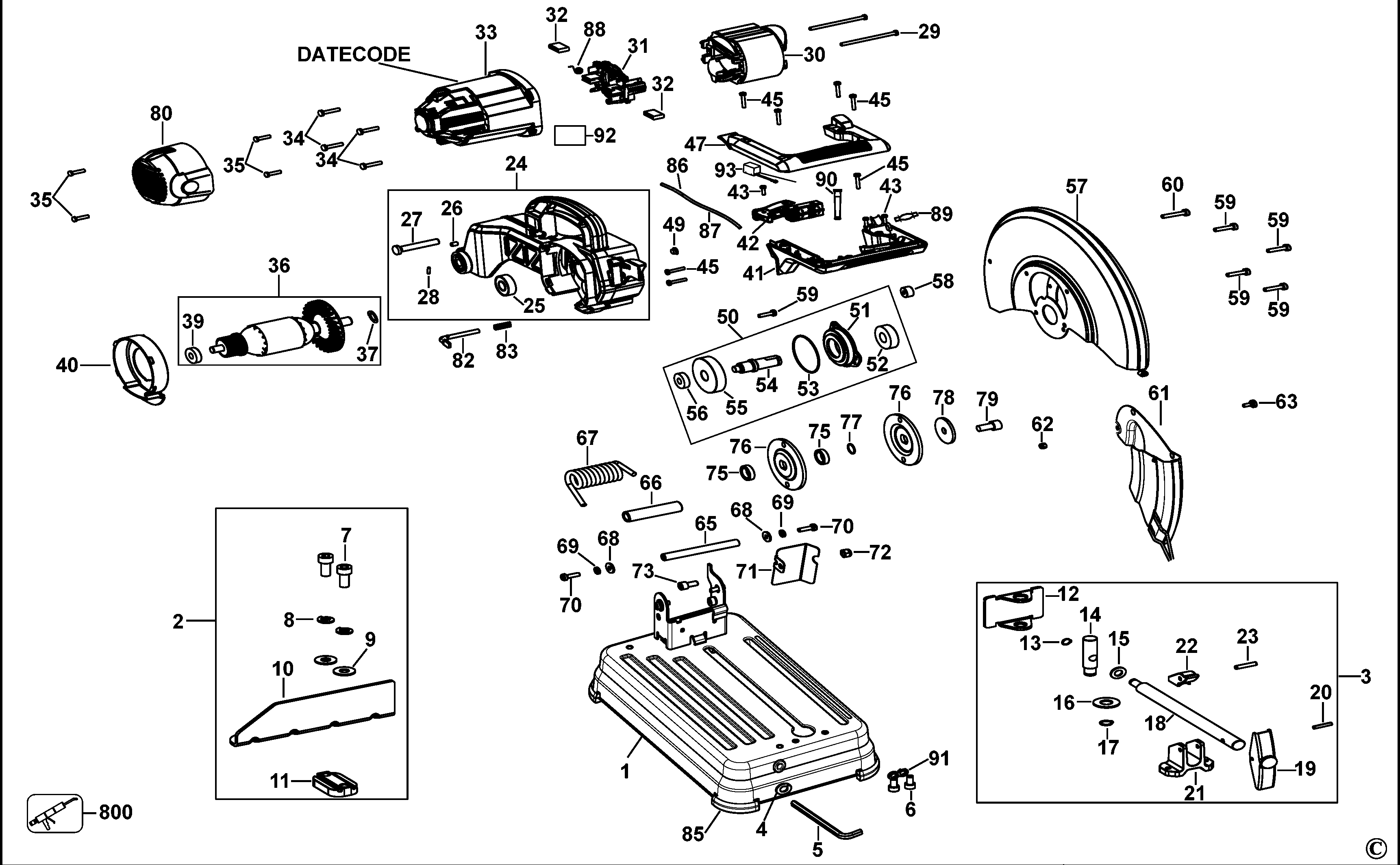

D28730 CHOP SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N537855 | 1 | BASE | XE | |||
| 2 | N600074 | 1 | FENCE SA | XE | |||
| 3 | N600076 | 1 | VICE SCREW SA | XE | |||
| 4 | 386765-00 | 1 | HOLDER TOOL | XE | |||
| 5 | 384717-00 | 1 | WRENCH | XE | |||
| 6 | 098123-16 | 2 | SCREW | XE | |||
| 7 | 383450-00 | 2 | SCREW | XE | |||
| 8 | N468716 | 2 | WASHER LOCK | M10 | XE | ||
| 9 | 323753-18 | 1 | WASHER | XE | |||
| 10 | N583562 | 1 | FENCE | XE | |||
| 11 | N462688 | 1 | MOUNTING BRACKET | XE | |||
| 12 | N574509 | 1 | VICE JAW | XE | |||
| 13 | 383169-00 | 1 | CIRCLIP | XE | |||
| 14 | N447547 | 1 | PIN | XE | |||
| 15 | 384365-00 | 1 | WASHER | XE | |||
| 16 | 607592-00 | 1 | WASHER | XE | |||
| 17 | 144803-00 | 1 | CIRCLIP | XE | |||
| 18 | N447550 | 1 | ROD | XE | |||
| 19 | 912020-00 | 1 | LOCK HANDLE | XE | |||
| 20 | N127232 | 1 | PIN | XE | |||
| 21 | N449677 | 1 | MOUNT | XE | |||
| 22 | N447568 | 1 | LOCK | XE | |||
| 23 | 562254-00 | 1 | ROLL PIN | XE | |||
| 24 | N600158 | 1 | ARM GUARD | XE | |||
| 25 | 605040-27 | 1 | BEARING | XE | |||
| 26 | 623092-00 | 1 | PLUG | RUBBER | XE | ||
| 27 | 621104-00 | 1 | PIN | LOCK DOWN | XE | ||
| 28 | 330036-00 | 1 | PIN | XE | |||
| 29 | 330019-33 | 2 | SCREW | XE | |||
| 30 | N500154 | 1 | FIELD 230V | XE | |||
| 31 | 385582-00 | 1 | BRUSH HOLDER | XE | |||
| 32 | N505712 | 1 | BRUSH PAIR 230V SA | XE | |||
| 33 | 383151-02 | 1 | FIELDCASE | XE | |||
| 34 | 330045-16 | 4 | SCREW | XE | |||
| 35 | 330019-13 | 4 | SCREW | M4X19 T20 | XE | ||
| 36 | N498636 | 1 | ARMATURE SA | XE | |||
| 37 | 144803-00 | 2 | CIRCLIP | XE | |||
| 39 | 330003-17 | 1 | BEARING | XE | |||
| 40 | N484130 | 1 | BAFFLE FAN | XE | |||
| 41 | 618290-03 | 1 | LOWER HANDLE | XE | |||
| 42 | N675744 | 1 | SWITCH | LOCK OFF | XE | ||
| 43 | 330019-02 | 3 | SCREW | XE | |||
| 45 | 330019-14 | 7 | SCREW | XE | |||
| 47 | 618291-02 | 1 | HANDLE UPPER | XE | |||
| 49 | N467523 | 1 | RUBBER PAD | XE | |||
| 50 | N703977 | 1 | GEARCASE COVER SA | XE | |||
| 51 | N612822 | 1 | GEARCASE COVER | XE | |||
| 52 | 605040-31 | 1 | BEARING | XE | |||
| 53 | 099180-46 | 1 | O RING | XE | |||
| 54 | N687255 | 1 | SPINDLE | XE | |||
| 55 | 621078-00 | 1 | GEAR | XE | |||
| 56 | 605040-52 | 1 | BEARING | XE | |||
| 57 | 639967-00 | 1 | GUARD UPPER | XE | |||
| 58 | 629619-00 | 1 | SPACER | XE | |||
| 59 | 330045-15 | 5 | SCREW | XE | |||
| 60 | 330045-16 | 1 | SCREW | XE | |||
| 61 | N615902 | 1 | GUARD LOWER | XE | |||
| 62 | 330021-02 | 1 | NUT | XE | |||
| 63 | 384844-00 | 1 | SCREW SPECIAL | XE | |||
| 65 | N388906 | 1 | PIVOT SHAFT | XE | |||
| 66 | N467337 | 1 | SPRING GUIDE | XE | |||
| 67 | N447533 | 1 | SPRING TORSION | XE | |||
| 68 | 330016-18 | 2 | WASHER | XE | |||
| 69 | 098197-10 | 2 | WASHER LOCK | XE | |||
| 70 | 153778-01 | 2 | SCREW | XE | |||
| 71 | N449087 | 1 | DEFLECTOR | XE | |||
| 72 | 330021-02 | 1 | NUT | XE | |||
| 73 | 098123-16 | 1 | SCREW | XE | |||
| 75 | N447525 | 2 | BUSH | XE | |||
| 76 | N687254 | 2 | WASHER OUTER CLAMP | XE | |||
| 77 | N447530 | 1 | O RING | XE | |||
| 78 | 383246-01 | 1 | WASHER SPECIAL | XE | |||
| 79 | 383286-00 | 1 | SCREW | XE | |||
| 80 | 392284-00 | 1 | END CAP | XE | |||
| 82 | 621087-00 | 1 | SPINDLE LOCK | XE | |||
| 83 | 621088-00 | 1 | SPRING | XE | |||
| 85 | N537857 | 4 | FOOT | XE | |||
| 86 | N671064 | 1 | LEADWIRE | BLUE | XE | ||
| 87 | N671066 | 1 | LEADWIRE | BROWN | XE | ||
| 88 | 384612-00 | 2 | SPRING | XE | |||
| 89 | 386540-00 | 1 | CORD CLAMP | XE | |||
| 91 | 098197-09 | 2 | WASHER | XE | |||
| 93 | N587633 | 1 | CAPACITOR | XE | |||
| 800 | 5140061-28 | 1 | GREASE | XE |
