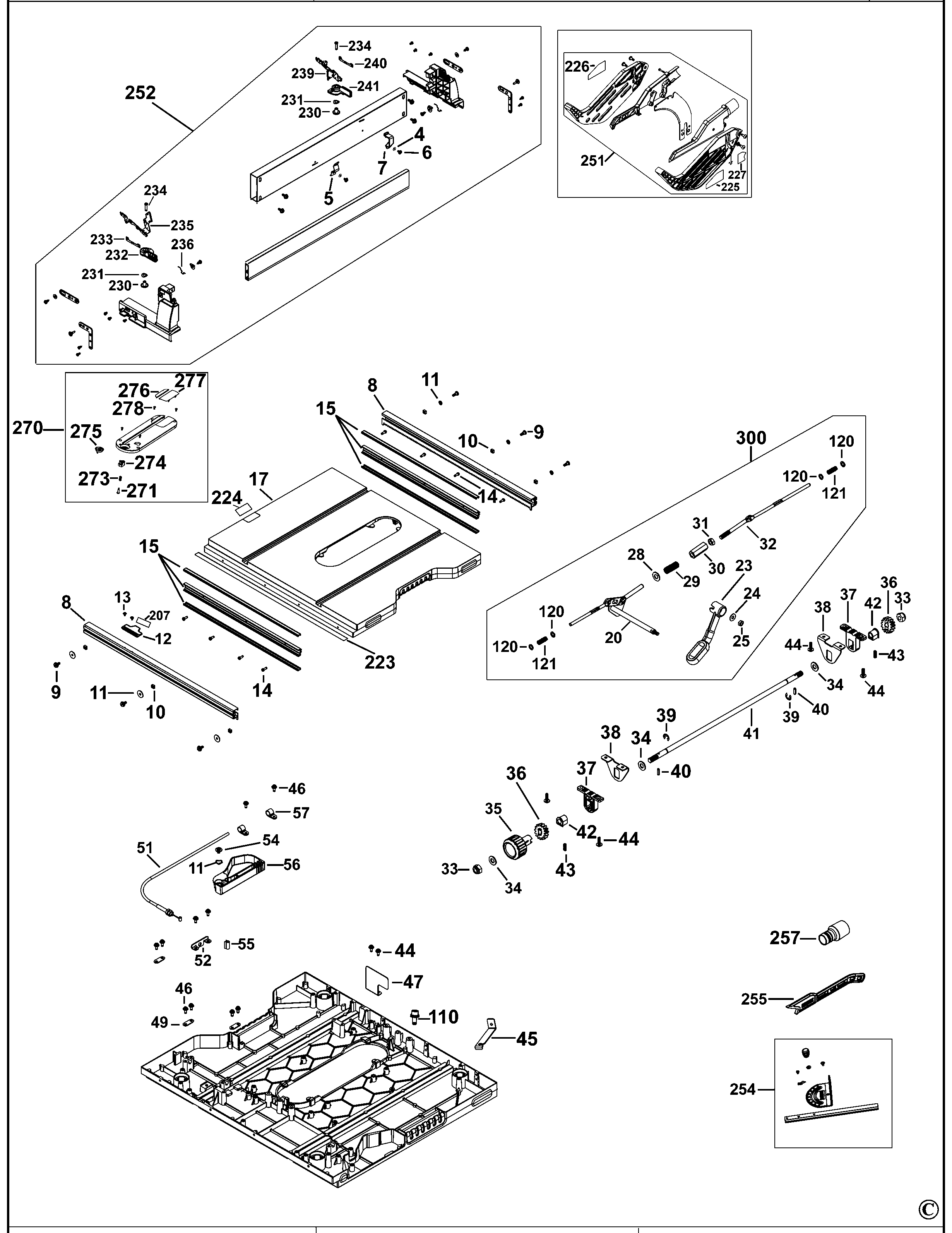

DWE7491 TABLE SAW Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 4 | N448947 | 2 | WASHER | XJ | |||
| 5 | N504104 | 1 | HOLDER | XJ | |||
| 6 | N615124 | 2 | SCREW | XJ | |||
| 7 | N506020 | 1 | HOLDER | XJ | |||
| 8 | N528992 | 2 | RAIL | XJ | |||
| 9 | N507933 | 6 | SCREW | XJ | |||
| 10 | N467547 | 6 | NUT | XJ | |||
| 11 | N507934 | 6 | WASHER | XJ | |||
| 12 | N506804 | 1 | POINTER | XJ | |||
| 13 | N530541 | 2 | SCREW | XJ | |||
| 14 | N446317 | 11 | SCREW.SPECIAL | XJ | |||
| 14 | 330045-14 | 3 | SCREW | XJ | |||
| 15 | N530544 | 2 | RAIL | XJ | |||
| 17 | N517904 | 1 | TABLE | XJ | |||
| 20 | N544188 | 1 | SHAFT SA | XJ | |||
| 23 | N507950 | 1 | LEVER | XJ | |||
| 24 | N526192 | 1 | WASHER | XJ | |||
| 25 | 330021-07 | 1 | NUT | XJ | |||
| 27 | N467556 | 1 | WASHER | XJ | |||
| 28 | N561042 | 1 | WASHER | XJ | |||
| 29 | N511376 | 1 | SPRING | XJ | |||
| 30 | N504755 | 1 | ADJUSTER BLOCK | XJ | |||
| 31 | N467555 | 1 | NUT | XJ | |||
| 32 | N544187 | 1 | SHAFT SA | XJ | |||
| 33 | N455283 | 3 | NUT M10 | XJ | |||
| 34 | N455280 | 2 | WASHER | XJ | |||
| 35 | N506822 | 1 | KNOB | XJ | |||
| 36 | N504754 | 2 | PINION | XJ | |||
| 37 | N505867 | 2 | BLOCK | XJ | |||
| 38 | N503996 | 2 | BRACKET | XJ | |||
| 39 | N455281 | 3 | RETAINER | XJ | |||
| 40 | N455278 | 2 | SPIROL PIN | XJ | |||
| 41 | N528996 | 1 | ROD | XJ | |||
| 42 | N505964 | 2 | BLOCK | XJ | |||
| 43 | N511377 | 2 | SPRING | XJ | |||
| 44 | 330045-14 | 4 | SCREW | XJ | |||
| 46 | N526936 | 38 | SCREW | XJ | |||
| 47 | N524352 | 1 | GUARD | XJ | |||
| 48 | N506853 | 2 | SCREW | XJ | |||
| 49 | N503338 | 5 | PLATE | XJ | |||
| 51 | N506841 | 1 | CABLE | XJ | |||
| 52 | N506842 | 1 | BRACKET | XJ | |||
| 54 | N445370 | 3 | SCREW.SPECIAL | XJ | |||
| 55 | N506845 | 1 | BUSHING | XJ | |||
| 56 | N506849 | 1 | Handle | XJ | |||
| 57 | N506850 | 2 | CORD CLAMP | XJ | |||
| 58 | N506863 | 1 | SPINDLE | XJ | |||
| 59 | N506864 | 1 | WOODRUFF KEY | XJ | |||
| 60 | N506867 | 1 | GEARCASE COVER | XJ | |||
| 61 | N506868 | 1 | O RING | XJ | |||
| 62 | 605040-41 | 1 | BEARING | XJ | |||
| 63 | N506869 | 1 | LOCKING RING | XJ | |||
| 64 | N506870 | 1 | CIRCLIP | XJ | |||
| 65 | N506871 | 1 | GEAR | XJ | |||
| 66 | 605040-59 | 1 | BEARING | XJ | |||
| 67 | N506873 | 1 | O RING | XJ | |||
| 68 | N506202 | 1 | GEARCASE | XJ | |||
| 69 | N524651 | 1 | O RING | XJ | |||
| 71 | 622440-00 | 2 | BRUSH HOLDER | XJ | |||
| 72 | N539048 | 2 | BRUSH CAP | XJ | |||
| 73 | N498814 | 1 | FIELDCASE | XJ | |||
| 74 | N530916 | 4 | SCREW.SPECIAL | XJ | |||
| 75 | N110359 | 1 | BEARING | XJ | |||
| 78 | 330019-30 | 2 | SCREW | XJ | |||
| 79 | N528091 | 1 | BAFFLE FAN | XJ | |||
| 80 | 605040-27 | 1 | BEARING | XJ | |||
| 81 | N600154 | 1 | CORD PROTECTOR | XJ | |||
| 82 | 330022-18 | 2 | SCREW | XJ | |||
| 83 | 631115-00 | 1 | RUBBER | XJ | |||
| 84 | 398605-00 | 1 | RETAINER | XJ | |||
| 86 | N506883 | 1 | SHAFT | XJ | |||
| 87 | N516284 | 1 | SPIROL PIN | XJ | |||
| 88 | N506885 | 1 | SPRING | XJ | |||
| 90 | N516281 | 1 | BUSHING | XJ | |||
| 91 | N448944 | 3 | SCREW | XJ | |||
| 92 | N516282 | 1 | SPRING | XJ | |||
| 93 | N516283 | 1 | WASHER | XJ | |||
| 94 | N516286 | 1 | RETAINER | XJ | |||
| 95 | N521163 | 1 | MOUNT | XJ | |||
| 96 | N516285 | 1 | SCREW | XJ | |||
| 97 | N447220 | 2 | SCREW | XJ | |||
| 98 | N506895 | 1 | BRACKET | XJ | |||
| 99 | N455214 | 1 | RETAINER | XJ | |||
| 100 | N506898 | 1 | PIN | XJ | |||
| 101 | N506899 | 1 | BRACKET | XJ | |||
| 102 | N506900 | 1 | BLOCK | XJ | |||
| 103 | N506901 | 1 | NUT | XJ | |||
| 105 | N505336 | 1 | BRACKET SA | XJ | |||
| 106 | N446419 | 4 | SPIROL PIN | XJ | |||
| 108 | N520495 | 1 | GUARD | XJ | |||
| 109 | N506909 | 1 | GUARD REAR | XJ | |||
| 110 | N461121 | 4 | SCREW | XJ | |||
| 111 | N505220 | 1 | BRACKET SA | XJ | |||
| 112 | N446418 | 4 | SCREW | XJ | |||
| 113 | N506912 | 1 | GUARD | XJ | |||
| 114 | N536538 | 1 | CASTING | XJ | |||
| 117 | N506916 | 1 | CLAMP NUT | XJ | |||
| 118 | N506921 | 1 | BAR | XJ | |||
| 119 | N506922 | 1 | COVER | XJ | |||
| 120 | N435913 | 4 | WASHER | XJ | |||
| 121 | N511375 | 2 | SPRING | XJ | |||
| 122 | N506924 | 1 | SHAFT | XJ | |||
| 123 | N506925 | 1 | SHAFT | XJ | |||
| 124 | N504745 | 2 | BEVEL GEAR | XJ | |||
| 125 | N506929 | 1 | BRACKET | XJ | |||
| 126 | N506935 | 2 | WASHER BOW | XJ | |||
| 127 | N506932 | 1 | CONTROL SCREW | XJ | |||
| 128 | N471715 | 1 | WOODRUFF KEY | XJ | |||
| 129 | N506934 | 1 | BUSHING | XJ | |||
| 130 | N506930 | 1 | WASHER | XJ | |||
| 131 | N506936 | 1 | BRACKET | XJ | |||
| 133 | N454261 | 1 | WASHER LOCK | XJ | |||
| 134 | N506939 | 1 | POINTER | XJ | |||
| 135 | N454259 | 1 | SCREW | XJ | |||
| 136 | N506941 | 1 | WASHER | XJ | |||
| 137 | N508188 | 1 | HANDLE SA | XJ | |||
| 138 | N656850 | 1 | WHEEL SA | XJ | |||
| 145 | N506952 | 1 | O RING | XJ | |||
| 147 | N506954 | 2 | WASHER | XJ | |||
| 148 | N535078 | 1 | LOCKING SCREW | XJ | |||
| 149 | N455721 | 4 | SCREW.SPECIAL | XJ | |||
| 150 | 330021-02 | 1 | NUT | XJ | |||
| 151 | N536541 | 1 | SHAFT | XJ | |||
| 152 | N586455 | 1 | CAGE | XJ | |||
| 153 | N468863 | 8 | SCREW.SPECIAL | XJ | |||
| 154 | N468864 | 8 | NUT | XJ | |||
| 155 | N546986 | 4 | FOOT | XJ | |||
| 156 | N506918 | 1 | BAR | XJ | |||
| 157 | N506971 | 2 | SCREW | XJ | |||
| 158 | N562519 | 1 | CLAMSHELL LH | XJ | |||
| 159 | N559499 | 1 | CLAMSHELL RH | XJ | |||
| 160 | N506975 | 1 | CORD CLAMP | XJ | |||
| 161 | N506976 | 2 | SCREW | XJ | |||
| 162 | N520496 | 1 | BAR | XJ | |||
| 163 | N506978 | 1 | BUTTON | XJ | |||
| 164 | N506979 | 1 | SPRING | XJ | |||
| 165 | N474759 | 4 | SCREW | XJ | |||
| 166 | N506981 | 4 | BUMPER | XJ | |||
| 167 | N506982 | 4 | BRACKET | XJ | |||
| 168 | N506983 | 1 | Handle | XJ | |||
| 170 | N454227 | 4 | SCREW | XJ | |||
| 177 | N497063 | 1 | BRACKET | XJ | |||
| 178 | N442869 | 2 | SCREW | XJ | |||
| 179 | N507001 | 1 | PANEL FRONT | XJ | |||
| 180 | N441179 | 2 | CAM | XJ | |||
| 181 | N507005 | 3 | SCREW | XJ | |||
| 182 | N507006 | 1 | PLATE | XJ | |||
| 183 | N526936 | 2 | SCREW | XJ | |||
| 185 | N508200 | 1 | PADDLE | XJ | |||
| 188 | N508203 | 1 | PIN | XJ | |||
| 189 | N508204 | 1 | SWITCH COVER | XJ | |||
| 190 | N508209 | 1 | SWITCHBOX | XJ | |||
| 191 | N508206 | 4 | SCREW | XJ | |||
| 192 | N507026 | 1 | SLEEVE | XJ | |||
| 195 | N536542 | 1 | WASHER | XJ | |||
| 200 | N508201 | 1 | INSERT | XJ | |||
| 201 | N600154 | 1 | CORD PROTECTOR | XJ | |||
| 205 | N581422 | 2 | SCREW | XJ | |||
| 206 | 750831 | 2 | O RING | XJ | |||
| 207 | N598018 | 1 | WARNING LABEL | XJ | |||
| 218 | N561998 | 2 | PAD | XJ | |||
| 219 | N563569 | 1 | INSULATOR | XJ | |||
| 221 | N586800 | 1 | BRAND LABEL | XJ | |||
| 222 | N196812 | 1 | LABEL | XJ | |||
| 223 | N196912 | 1 | SCALE | XJ | |||
| 224 | N196816 | 1 | LABEL | XJ | |||
| 230 | N507736 | 2 | BUSHING | XJ | |||
| 231 | N507735 | 2 | WASHER BOW | XJ | |||
| 232 | N507689 | 1 | PADDLE | XJ | |||
| 233 | N507733 | 1 | LEVER | XJ | |||
| 234 | N507731 | 2 | SCREW | XJ | |||
| 235 | N552157 | 1 | PLATE | XJ | |||
| 236 | N511951 | 2 | SPRING | XJ | |||
| 239 | N552906 | 1 | PLATE | XJ | |||
| 240 | N507741 | 1 | LEVER | XJ | |||
| 241 | N507992 | 1 | PADDLE | XJ | |||
| 252 | N638742 | 1 | FENCE SA | XJ | |||
| 255 | N506021 | 1 | PUSHROD | XJ | |||
| 256 | N506977 | 2 | WRENCH SPECIAL | 22mm | XJ | ||
| 257 | 1004695-90 | 1 | DUST PORT | XJ | |||
| 260 | N546987 | 4 | FOOT | XJ | |||
| 261 | N557485 | 1 | BRACKET | XJ | |||
| 262 | N451161 | 1 | BOLT | XJ | |||
| 263 | N526185 | 1 | WASHER | XJ | |||
| 264 | N461154 | 1 | NUT | XJ | |||
| 265 | N511764 | 1 | SPRING | XJ | |||
| 266 | N538525 | 1 | KNOB | XJ | |||
| 267 | N524451 | 1 | FOAM | XJ | |||
| 278 | N455083 | 4 | SCREW | XJ | |||
| 280 | N521898 | 1 | PLATE | XJ | |||
| 281 | N507731 | 1 | SCREW | XJ | |||
| 300 | N655983 | 1 | LOCKING DEVICE | XJ |
