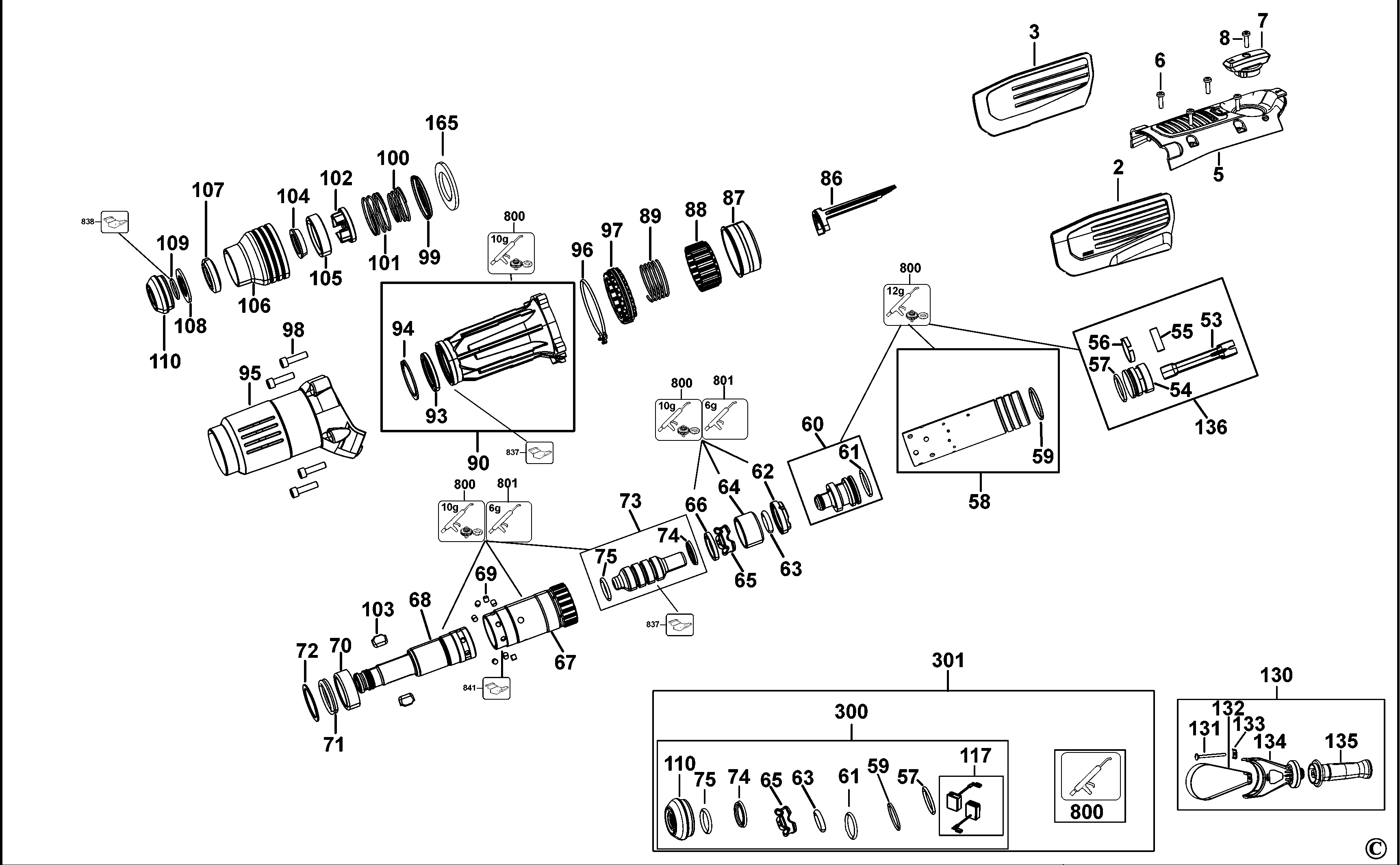

D25773 ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | N513078 | 1 | SIDE LH | XE | |||
| 3 | N513079 | 1 | SIDE RH | XE | |||
| 4 | N481045 | 1 | FELT | XE | |||
| 5 | N410169 | 1 | COVER-TOP | XE | |||
| 6 | N548557 | 8 | SCREW | XE | |||
| 7 | N463694 | 1 | SELECTOR | XE | |||
| 8 | 330065-08 | 1 | SCREW | M4x18 T20 | XE | ||
| 9 | N607940 | 1 | CAP | XE | |||
| 10 | N519469 | 1 | LENS | XE | |||
| 11 | N453525 | 1 | PIN | XE | |||
| 12 | 323091-01 | 1 | CORD PROTECTOR | XE | |||
| 13 | 329301-00 | 1 | CORD CLAMP | XE | |||
| 14 | 330065-04 | 2 | SCREW | XE | |||
| 15 | N467530 | 1 | SWITCH | XE | |||
| 16 | N453629 | 1 | BELLOWS | XE | |||
| 17 | N453630 | 1 | BELLOWS | XE | |||
| 18 | N501559 | 1 | SPRING | XE | |||
| 19 | N152623 | 1 | STOP | XE | |||
| 20 | N410165 | 1 | PANEL.REAR | XE | |||
| 21 | N580489 | 1 | CLAMSHELL SET | LOCK ON | XE | ||
| 22 | 330065-08 | 6 | SCREW | M4x18 T20 | XE | ||
| 23 | N592362 | 1 | CONTROL MODULE SA | XE | |||
| 24 | 330065-08 | 1 | SCREW | M4x18 T20 | XE | ||
| 25 | N548557 | 4 | SCREW | XE | |||
| 26 | 330065-08 | 2 | SCREW | M4x18 T20 | XE | ||
| 27 | N389340 | 1 | END CAP | XE | |||
| 28 | 330065-08 | 4 | SCREW | M4x18 T20 | XE | ||
| 29 | N850598 | 1 | HOUSING SA | XE | |||
| 32 | N580503 | 1 | CLUTCH SA | XE | |||
| 33 | N447147 | 1 | SEAL | XE | |||
| 34 | N781072 | 1 | BEARING SINTER | XE | |||
| 35 | N580506 | 1 | GEAR | XE | |||
| 36 | N783357 | 1 | CLAMP | XE | |||
| 37 | N851025 | 1 | GEARCASE COVER SA | XE | |||
| 38 | N422626 | 1 | SEAL | XE | |||
| 39 | 488147-01 | 1 | CIRCLIP | XE | |||
| 40 | 330003-13 | 1 | BEARING | XE | |||
| 42 | 330003-60 | 1 | BEARING | XE | |||
| 43 | N362699 | 1 | CIRCLIP | XE | |||
| 44 | N537281 | 1 | SPACER | XE | |||
| 45 | 330003-60 | 1 | BEARING | XE | |||
| 46 | N466979 | 1 | MAGNET | XE | |||
| 47 | N548557 | 8 | SCREW | XE | |||
| 48 | N405298 | 1 | BAFFLE | XE | |||
| 49 | N548557 | 4 | SCREW | XE | |||
| 50 | N580511 | 1 | CRANKSHAFT | XE | |||
| 51 | N520790 | 1 | DETENT | XE | |||
| 52 | N537973 | 1 | O RING | XE | |||
| 53 | N662675 | 1 | CON ROD | 10KG | XE | ||
| 54 | N431764 | 1 | PISTON | XE | |||
| 55 | N026610 | 1 | PIN | XE | |||
| 56 | N439990 | 1 | PISTON RING | XE | |||
| 57 | 487296-00 | 1 | O RING | XE | |||
| 58 | N851029 | 1 | CYLINDER SA | XE | |||
| 59 | N587667 | 1 | O RING | XE | |||
| 60 | N580521 | 1 | RAM SA | XE | |||
| 61 | 487296-00 | 1 | O RING | XE | |||
| 62 | N400498 | 1 | BUSH | XE | |||
| 63 | N389365 | 1 | O RING | XE | |||
| 64 | N476023 | 1 | DAMPER | XE | |||
| 65 | N515559 | 1 | DAMPER | XE | |||
| 66 | N389693 | 1 | WASHER | XE | |||
| 67 | N580522 | 1 | SPINDLE | XE | |||
| 68 | N580524 | 1 | SPINDLE | XE | |||
| 69 | N548304 | 5 | PIN | XE | |||
| 70 | N475966 | 1 | RING | XE | |||
| 71 | N514255 | 1 | DAMPER | XE | |||
| 72 | N392234 | 2 | WASHER | XE | |||
| 73 | N580525 | 1 | BEAT PIECE | XE | |||
| 74 | N594490 | 1 | SEAL | XE | |||
| 75 | N432561 | 1 | O RING | XE | |||
| 76 | N409943 | 1 | COVER | XE | |||
| 77 | N504016 | 1 | ECCENTRIC | XE | |||
| 78 | N515556 | 1 | O RING | XE | |||
| 79 | N410143 | 1 | SLIDER | XE | |||
| 80 | N520791 | 2 | SPRING | XE | |||
| 81 | N410898 | 1 | CONNECTOR | XE | |||
| 82 | N427022 | 1 | PLATE | XE | |||
| 83 | 330065-08 | 2 | SCREW | M4x18 T20 | XE | ||
| 84 | N455140 | 1 | O RING | XE | |||
| 85 | N548557 | 4 | SCREW | XE | |||
| 86 | N481044 | 1 | SLIDER | XE | |||
| 87 | N580526 | 1 | BEVEL GEAR | XE | |||
| 88 | N580533 | 1 | SLEEVE | XE | |||
| 89 | N497938 | 1 | SPRING | XE | |||
| 90 | N580535 | 1 | HOUSING FRONT | XE | |||
| 93 | N392582 | 1 | SEAL | XE | |||
| 94 | N181847 | 1 | LOCKING RING | XE | |||
| 95 | N416527 | 1 | COVER | XE | |||
| 96 | N431324 | 1 | GASKET | XE | |||
| 97 | N420195 | 1 | BUSH | XE | |||
| 98 | 949886-32 | 4 | SCREW | XE | |||
| 99 | N516486 | 1 | GUIDE | XE | |||
| 100 | N520784 | 1 | SPRING | XE | |||
| 101 | N520782 | 1 | SPRING | XE | |||
| 102 | N408040 | 1 | BUSH | XE | |||
| 103 | N511836 | 2 | LOCKING DEVICE | XE | |||
| 104 | N511805 | 1 | DAMPER | XE | |||
| 105 | N511834 | 1 | BUSH | XE | |||
| 106 | N468816 | 1 | SLEEVE | XE | |||
| 107 | 487244-00 | 1 | RUBBER | XE | |||
| 108 | N516487 | 1 | WASHER | XE | |||
| 109 | N522784 | 1 | RETAINER | XE | |||
| 110 | 487238-01 | 1 | SEAL | XE | |||
| 111 | N449094 | 1 | COVER BEARING | XE | |||
| 112 | N580536 | 1 | HOUSING MOTOR | XE | |||
| 113 | N580537 | 1 | FIELD 230V | XE | |||
| 114 | 330019-30 | 2 | SCREW | XE | |||
| 115 | N425665 | 2 | BRUSH HOLDER SA | XE | |||
| 116 | 330065-08 | 2 | SCREW | M4x18 T20 | XE | ||
| 117 | N580542 | 1 | BRUSH PAIR 230V | XE | |||
| 119 | N523745 | 2 | BRUSH SPRING | XE | |||
| 122 | N448156 | 1 | COIL | XE | |||
| 123 | N086775 | 1 | SCREW | XE | |||
| 125 | N640362 | 1 | TRIGGER | XE | |||
| 126 | N518647 | 1 | SWITCH LOCK-ON | XE | |||
| 130 | N412213 | 1 | HANDLE SIDE SA | XE | |||
| 131 | N552104 | 1 | BOLT | XE | |||
| 132 | N412984 | 1 | CLAMP | XE | |||
| 133 | N413396 | 1 | WASHER | XE | |||
| 134 | N411953 | 1 | CLAMP | XE | |||
| 135 | N499183 | 1 | HANDLE SA | XE | |||
| 136 | N580512 | 1 | PISTON SA | XE | |||
| 140 | 1005766-00 | 1 | CORDSET | XE | XE | ||
| 145 | N408073 | 1 | BEARING,NEEDLE | XE | |||
| 150 | N580509 | 1 | ARMATURE 230V | XE | |||
| 165 | N578605 | 1 | FELT | XE | |||
| 190 | N602345 | 1 | COVER | XE | |||
| 191 | N516505 | 1 | MICRO SWITCH | XE | |||
| 192 | 620051-00 | 1 | PAD | XE | |||
| 195 | 90611830 | 2 | SCREW | XE | |||
| 197 | N551537 | 1 | LABEL | ANTI ROTATION | XE | ||
| 200 | N551374 | 1 | LABEL | PERFORM AND PROTECT | XE | ||
| 201 | N840402 | 1 | RATING PLATE | XE | XE | ||
| 300 | N593930 | 1 | SERVICE KIT 230V | 10KG COMBI | XE | ||
| 800 | 578970-06 | 1 | GREASE 150 GMS | XE | |||
| 801 | 870889-02 | 1 | GREASE | XE | |||
| 837 | 1003973-99 | 1 | S.T.SEAL FITTING TOOL | XE | |||
| 837 | 1003975-99 | 1 | S.T.INSERTION TOOL | XE | |||
| 837 | 1003971-99 | 1 | S.T.SEAL FITTING TOOL | XE | |||
| 837 | 1003974-99 | 1 | S.T.SUPPORT JIG | XE | |||
| 838 | 559651-99 | 1 | S.T.CIRCLIP REMOVER | XE | |||
| 838 | 1003976-99 | 1 | S.T.CIRCLIP REMOVER | CIRCLIPREMOVE INSERT | XE | ||
| 839 | 1003979-99 | 1 | S.T.BEARING INSERTOR | XE | |||
| 840 | 1003978-99 | 1 | S.T.INSERTION TOOL | XE | |||
| 841 | 1003977-99 | 1 | S.T.PULLER | XE | |||
| 861 | N508182 | 1 | KITBOX | XE |
