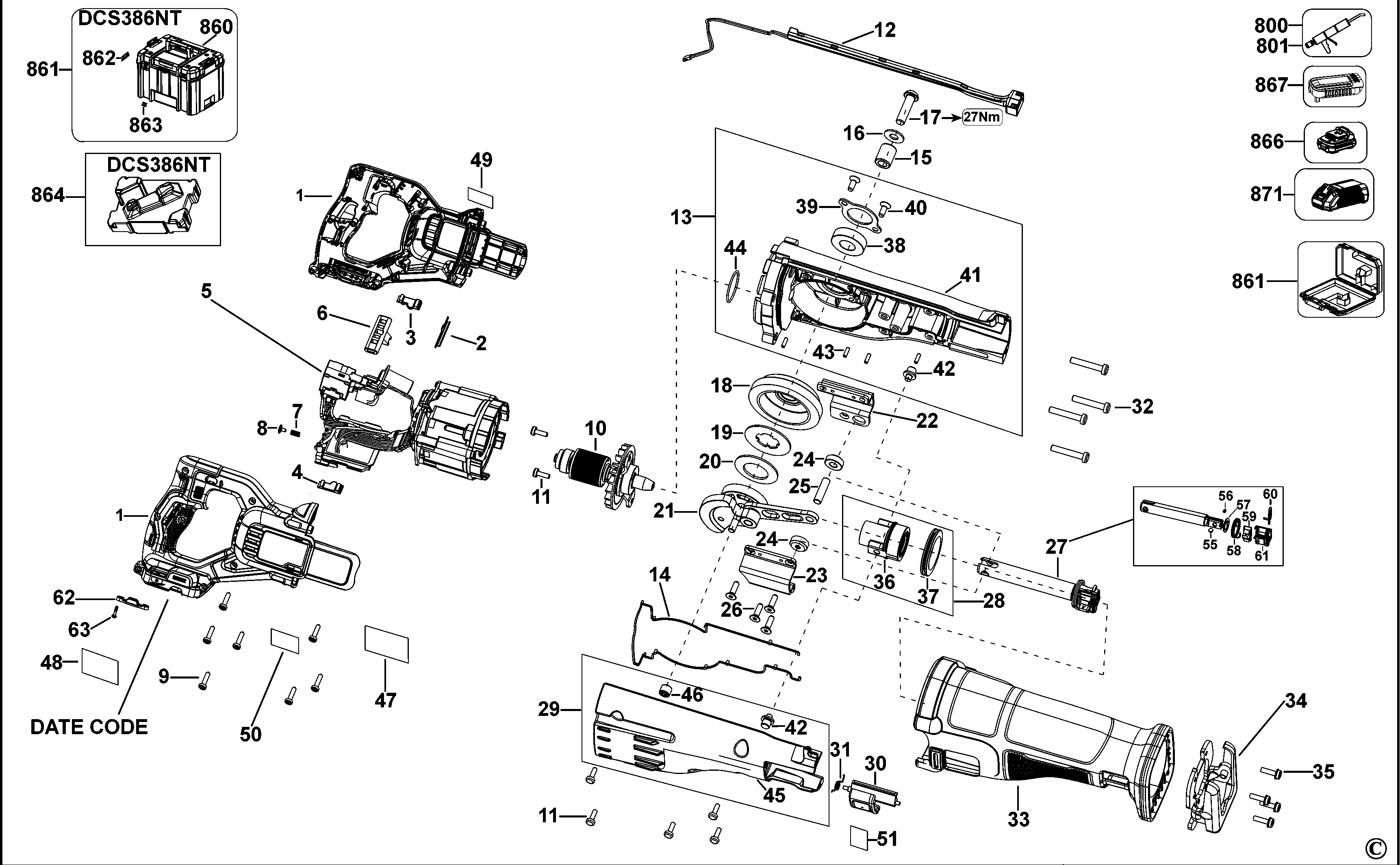

DCS386 CORDLESS RECIPROCATING SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N891633 | 1 | CLAMSHELL SET | XE | |||
| 2 | N466021 | 1 | PLATE | XE | |||
| 3 | N728012 | 1 | INSERT | XE | |||
| 4 | N728013 | 1 | INSERT | XE | |||
| 5 | N873830 | 1 | MOTOR & SWITCH SA | XE | |||
| 6 | N425240 | 1 | BUTTON LOCK-OFF | DCS388 | XE | ||
| 7 | N461735 | 1 | SPRING | XE | |||
| 8 | N122099 | 1 | BLOCK | XE | |||
| 9 | 330019-03 | 7 | SCREW | XE | |||
| 10 | N775231 | 1 | ROTOR SA | XE | |||
| 11 | 330045-45 | 7 | SCREW | XE | |||
| 12 | N469234 | 1 | LED LIGHT | DCS388 | XE | ||
| 13 | N463923 | 1 | GEARCASE SA | DCS388/DCS389 | XE | ||
| 14 | N451939 | 1 | GASKET | DCS388 | XE | ||
| 15 | N410605 | 1 | BEARING | DCS388 Gear Hub | XE | ||
| 16 | N431139 | 1 | WASHER | ID 8.5 OD 19 x 1.5mm | XE | ||
| 17 | N410607 | 1 | SCREW | M8 x 30mm LH | XE | ||
| 18 | N463922 | 1 | GEAR | XE | |||
| 19 | N410604 | 1 | WASHER SPECIAL | SPLINE | XE | ||
| 20 | N410595 | 1 | WASHER | XE | |||
| 21 | N463918 | 1 | CRANKSHAFT | XE | |||
| 22 | N451098 | 1 | GUIDE | XE | |||
| 23 | N451099 | 1 | GUIDE | XE | |||
| 24 | N410597 | 2 | ROLLER | XE | |||
| 25 | N422091 | 1 | PIN | XE | |||
| 26 | N465031 | 4 | SCREW | M5 x 16.5 mm | XE | ||
| 27 | N463921 | 1 | SHAFT SA | XE | |||
| 28 | N469236 | 1 | BUSHING | XE | |||
| 29 | N463925 | 1 | GEARCASE COVER SA | XE | |||
| 30 | N450135 | 1 | LEVER RELEASE | BLADE CLAMP | XE | ||
| 31 | N455745 | 1 | SPRING | BLADE CLAMP | XE | ||
| 32 | 330019-21 | 4 | SCREW.TEMP | XE | |||
| 33 | N911091 | 1 | RUBBER BOOT | XE | |||
| 34 | N436884 | 1 | SHOE SA | XE | |||
| 35 | 142940-00 | 4 | SCREW | XE | |||
| 36 | N475464 | 1 | BUSHING | XE | |||
| 37 | N410601 | 1 | SEAL | SHAFT | XE | ||
| 38 | 605040-25 | 1 | BEARING,BALL | XE | |||
| 39 | N424451 | 1 | BEARING HOLDER | XE | |||
| 40 | N482531 | 1 | SCREW | M5 x 0.8P x 13mm T20 | XE | ||
| 41 | N437012 | 1 | GEARCASE | XE | |||
| 42 | N421926 | 2 | PIN | XE | |||
| 43 | 330041-04 | 4 | PIN | D3 x 9.69 +/- 0.11mm | XE | ||
| 44 | N100358 | 1 | O RING | XE | |||
| 45 | N437380 | 1 | GEARCASE COVER | XE | |||
| 46 | 330004-20 | 1 | BEARING NEEDLE | XE | |||
| 47 | N885614 | 1 | RATING PLATE | XE | |||
| 48 | N885615 | 1 | LABEL | XE | |||
| 49 | N885616 | 1 | BRAND LABEL | XE | |||
| 50 | N901747 | 1 | BRAND LABEL | XE | |||
| 51 | N468143 | 1 | LABEL | BLADE LEVER | XE | ||
| 55 | 000903-00 | 1 | BALL | XE | |||
| 56 | 386786-00 | 1 | PIN | XE | |||
| 57 | N473286 | 1 | WASHER SPECIAL | XE | |||
| 58 | 623343-00 | 1 | SPRING | XE | |||
| 59 | N133647 | 1 | SLIDER | XE | |||
| 60 | 620663-00 | 1 | LOCK PIN | XE | |||
| 61 | 604731-00 | 1 | BLADE CLAMP | XE | |||
| 62 | N787996 | 1 | INSERT | XE | |||
| 63 | N831593 | 2 | SCREW | XE | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | XE | ||
| 801 | 487130-04 | 1 | GREASE | GLK FLUID 249 NLGI 000 (10G SERVICE) | XE | ||
| 860 | H1400196008 | 1 | Handle | DCS386NT | XE | ||
| 861 | N445186 | 1 | KITBOX | DCS386NT | XE | ||
| 861 | N443156 | 1 | KITBOX | XE | |||
| 862 | H1500082520 | 2 | LATCH | DCS386NT | XE | ||
| 863 | P910190 | 2 | LATCH | DCS386NT | XE | ||
| 864 | N528735 | 1 | TRAY | XE | |||
| 867 | N462141 | 1 | SAFETY CAP | XE |
